4000-12000MHz 600W Directional Coupler For DAS IBS

4000-12000MHz 600W Directional Coupler For DAS IBS

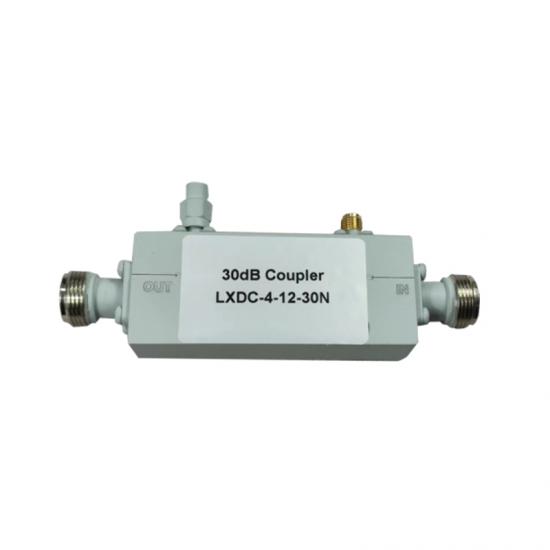

4000-12000MHz 600W directional coupler with N-Female Connector

Item NO.:
MNDC-4/12-30N-600w
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
Sliver

Inquiry now

Products Details

Product Name

600W Directional coupler (4000-12000MHz, N-F)

Product Features

◆ Wide Frequency Band 4000-12000MHz

◆ 2G/3G/4G/LTE Coverage

◆ Low Insertion Loss

◆ Low VSWR

◆ Widely used for In-building Solutions

Technical & Mechanical Specifications

Model No.	MNDC-4/12-30N-600w
Frequency	4000-12000MHz
Insertion Loss	≤ 0.3B
Isolation	≥42dB
VSWR(Input)	≤1.35
Coupling	30±1.5
Power handing	600W
Impedance	50 ohm
Connector	N-female
Surface Finishing	Sandblasting natural color conductive oxide
Operation Temperature	-35~+75

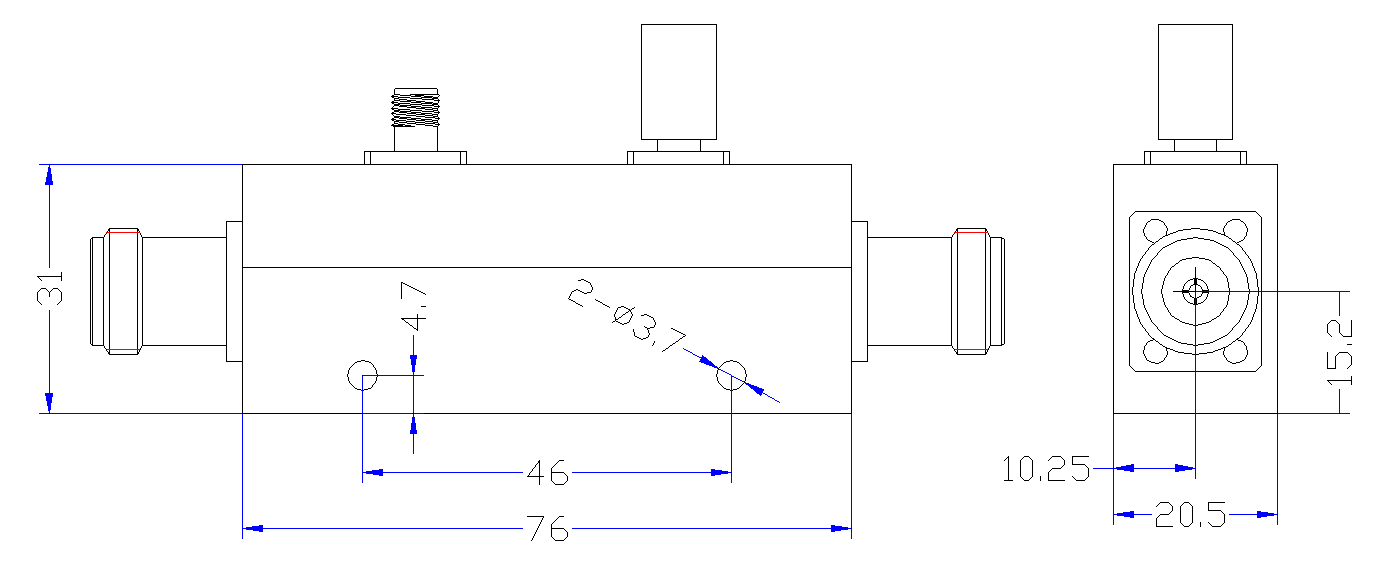

Mechanical Drawing
