Product Overview

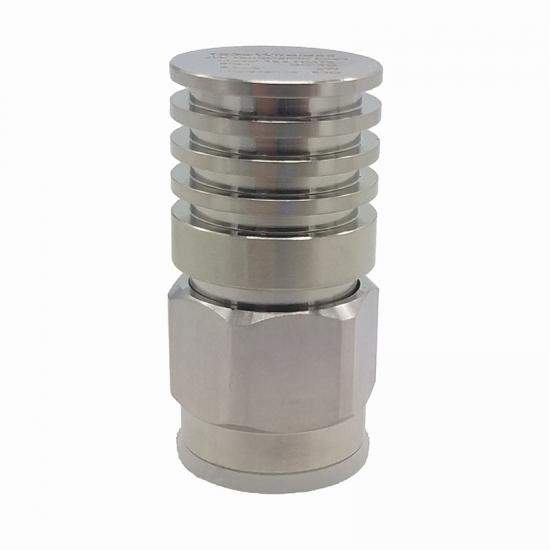

The DC-3GHz 2W RF Termination Load (MNT-5-3G-NM) is a precision-engineered dummy load designed to terminate an RF port in its characteristic impedance. Covering a massive frequency range from DC to 3GHz, it is fully compatible with 2G, 3G, 4G, and LTE applications. With a low VSWR of ≤1.20 and a standard N-male interface, it is an essential component for system testing and In-building Solutions (IBS) to prevent signal reflections and ensure circuit stability.
Technical Specifications
| Model No. | MNT-5-3G-NM |
| Freq(MHz) | DC-3GHz |
| VSWR | ≤1.20 |
| Power (W) | 2 |
| Impedance | 50 ohm |
| Connector | N-male |
NOTE: All technical parameters can be adjusted as per the customer's requirement. Our company offers a wide variety of RF passive components with different power ratings and connector types to choose from.
Frequently Asked Questions
- Q1: What is the primary function of this 2W RF Termination?
- A: The primary role is to absorb RF energy and prevent signal reflections in a 50-ohm system. It is commonly used to "close" unused ports on couplers, splitters, or circulators to maintain the impedance balance of the entire network.
- Q2: Can this RF load be used for 5G applications?
- A: While it covers up to 3GHz (perfect for 2G/3G/4G/LTE and Sub-3GHz 5G bands), if your 5G application operates in the higher n78 or n258 bands, we recommend our 6GHz or 18GHz models. Custom frequency ranges are available upon request.
- Q3: Is the N-male connector compatible with standard measuring equipment?
- A: Yes, the N-type male connector is a standard interface in the RF industry, making it directly compatible with most spectrum analyzers, network analyzers, and commercial DAS equipment.
- Q4: Why is the VSWR rating of ≤1.20 significant?
- A: A low VSWR (Voltage Standing Wave Ratio) indicates that the load is very efficient at absorbing power with minimal reflection. A rating of ≤1.20 ensures excellent impedance matching, which is critical for accurate testing and system integrity.
Mechanical Drawing
