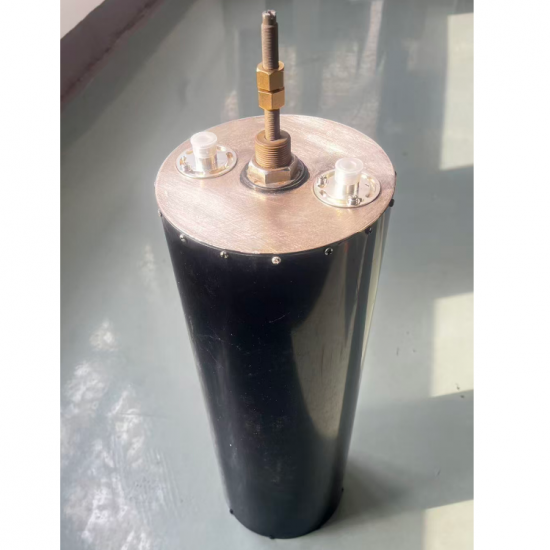

VHF cavity filter 136-174MHz 100W

Large cavity filters have advantages like high Q factor, low insertion loss, and good temperature stability. They are mainly used in receivers for high selectivity or in transmitter backends to filter out harmful RF noise and out-of-band interference.

Item NO.:
MCF-150-NF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Black

Inquiry now

Products Details

Product Name

VHF cavity filter 136-174MHz 100W

Product Feature

◆ Low VSWR & Insertion Loss

◆ High Rejection

◆ Widely used for 5G Communications Solutions

Technical & Mechanical Specification

Frequency(MHz)	136-174(Optional)
bandwidth(KHz)	50
Insertion loss(dB)	≤2.0
Fluctuation range(dB)	≤1.0
VSWR	≤1.25
Maximum input power(W)	100
Rejection(dB)	≥25@163.500MHz
Impedance(Ω)	50
Operating temperature range(℃)	-20 to +65
Relative humidity(%)	5 - 95
Connector	N Female
Weight(kg)	6
Dimension(mm)	Ø165*600
Color	Black
