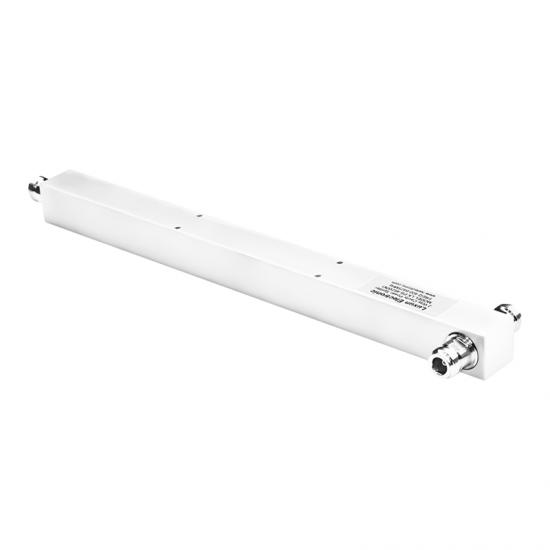

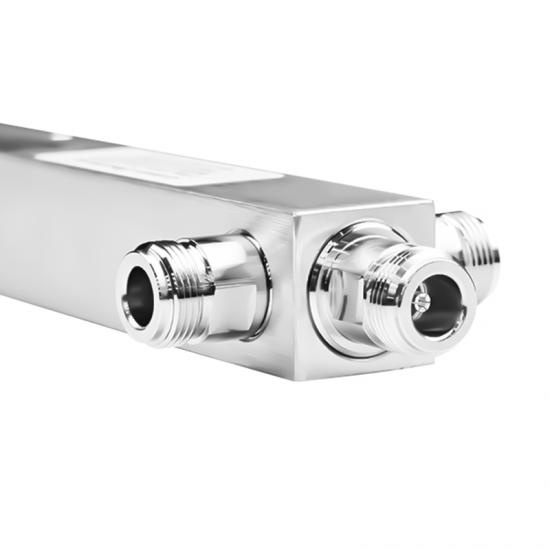

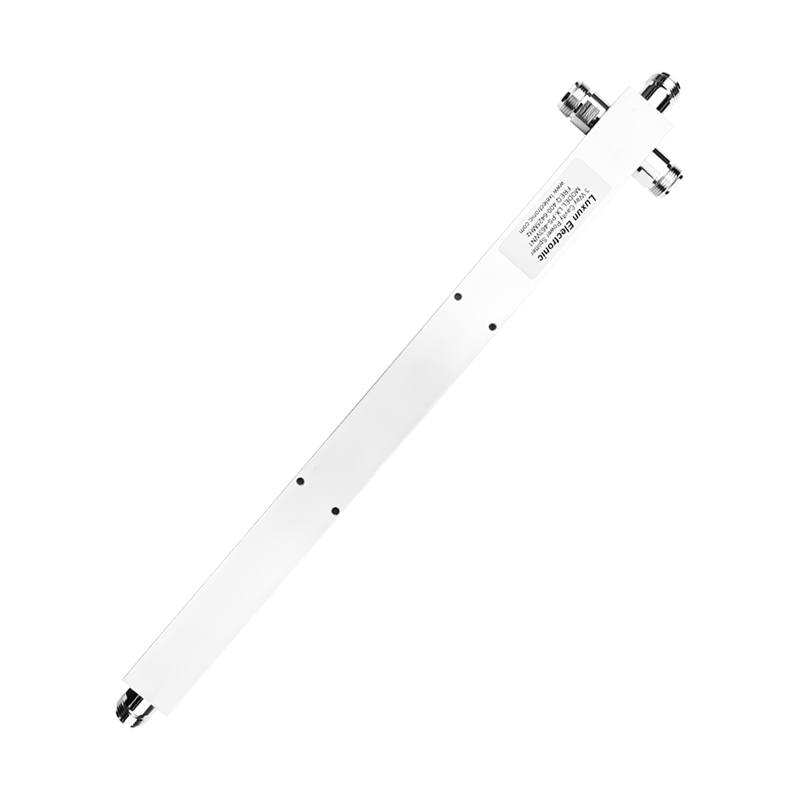

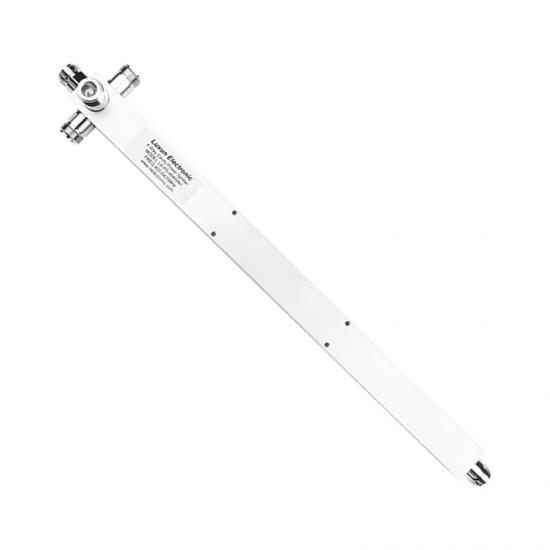

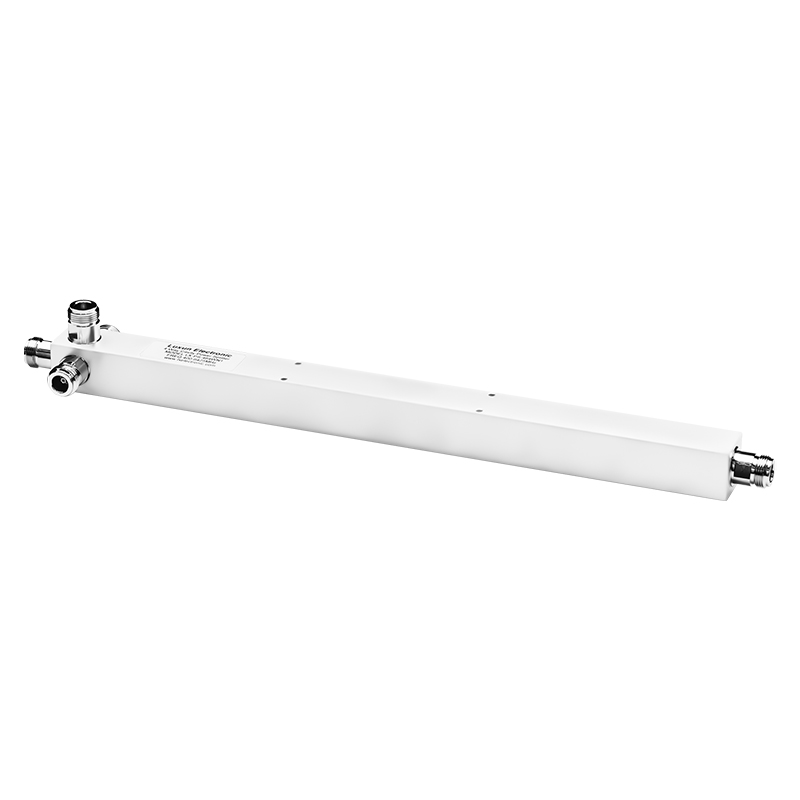

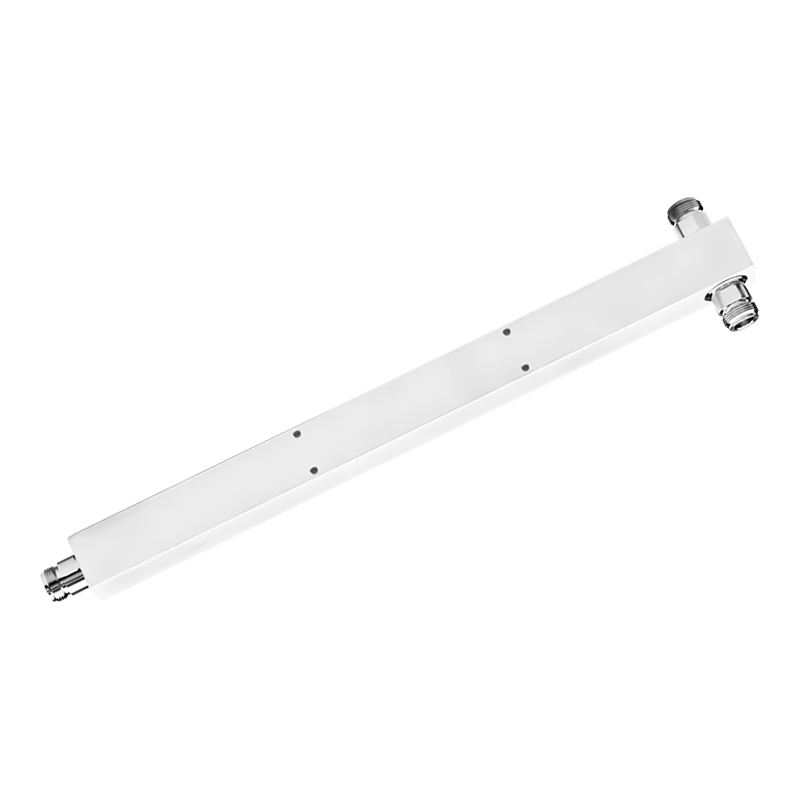

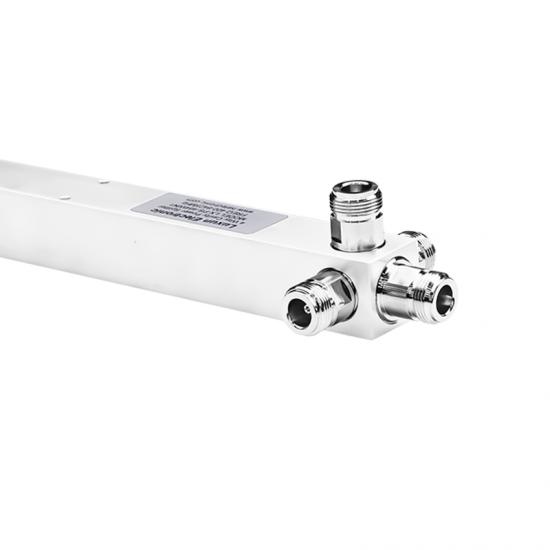

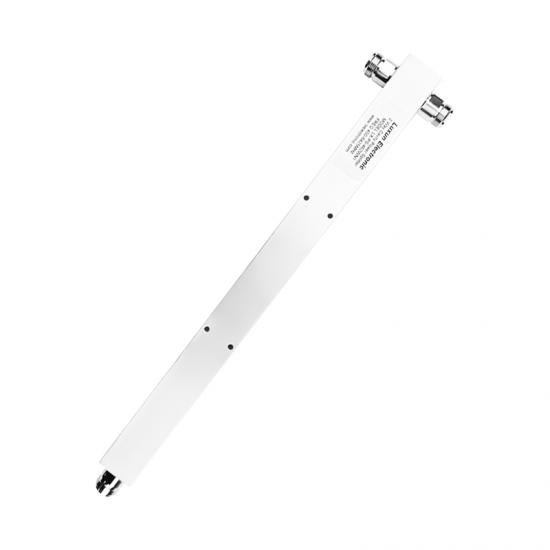

20W 2/3/4 Way Cavity Power Splitter 400-6425MHz N Female RF Splitter for DAS & 5G Systems

20W 2/3/4 Way Cavity Power Splitter 400-6425MHz N Female RF Splitter for DAS & 5G Systems

Wideband 20W RF cavity power splitter covering 400-6425MHz with low insertion loss and stable performance for DAS, LTE, and 5G networks.

Item NO.:
MPS-464-X-NF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Guangzhou/Shenzhen

Inquiry now

Products Details

Product Name:

20W Directional coupler, 400-6425MHz, N Female

Product Feature:

◆ 2G/3G/4G/LTE Coverage

◆ Low Insertion Loss & Low VSWR

◆ The RF port supports DC power output/input

Technical &Mechanical Specifications:

Model No.	MPS-464-2-NF	MPS-464-3-NF	MPS-464-4-NF
No. of Ways	2	3	4
Insertion Loss(dB)	≤3.55	≤5.9	≤6.9
Frequency(MHz)	400-6425
Power Handling(W)	≥20
VSWR	≤1.5
Impedance(Ω)	50
Connector	N Female

Product Drawing:
