Product Overview

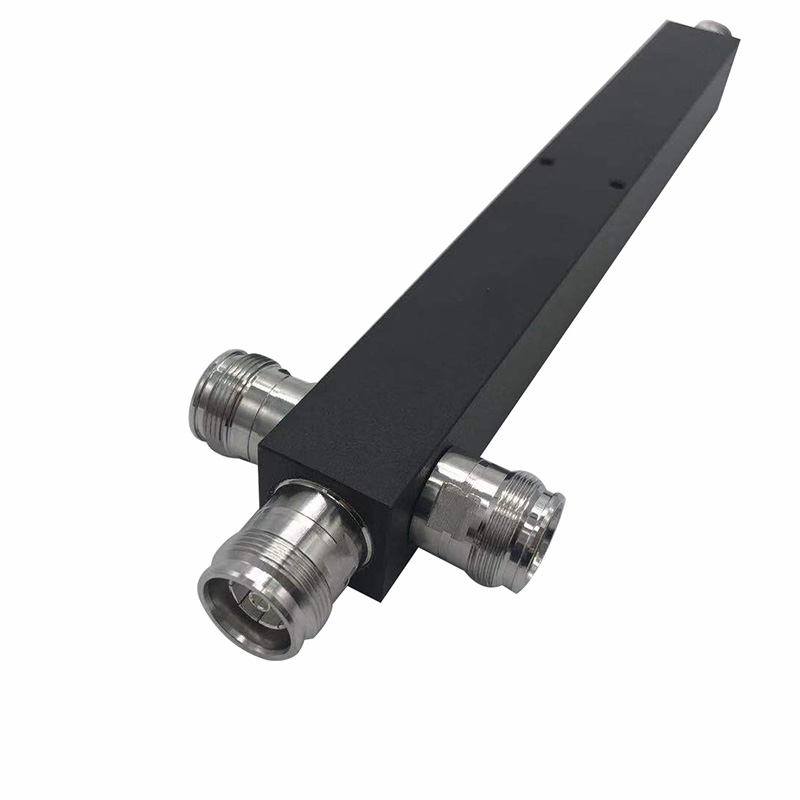

The MPS-738-0X-4F-160 series is a high-performance, wideband Cavity Power Splitter engineered for the demanding 5G NR market. Covering the 698-3800MHz frequency range, it is perfectly suited for sub-6GHz 5G, 4G LTE, and multi-band DAS deployments. Equipped with 4.3-10 Female connectors, this splitter supports high power handling up to 300W while maintaining an ultra-low PIM of -160dBc. Its rugged design ensures stable signal distribution for both large-scale In-building Solutions (IBS) and demanding outdoor wireless infrastructure.
Technical & Mechanical Specifications
| Model No. | MPS-738-02-4F-160 | MPS-738-03-4F-160 | MPS-738-04-4F-160 |
| Freq(MHz) | 698-3800 | ||
| Way Type | 2-way | 3-way | 4-way |
| Split Loss(dB) | 3.0 | 4.8 | 6.0 |
| IL(dB) | ≤0.3 | ≤0.4 | ≤0.4 |
| VSWR / Power | ≤1.3 / 300W (Average) | ||
| PIM (dBc) | ≤-160dBc @ 2*43dBm (698-3800MHz) | ||
| Connector / Imp. | 4.3-10 Female / 50 ohm | ||
| Temp / Color | -30°C ~ +65°C / Black | ||
NOTE: This wideband splitter is specifically optimized for high-power 5G NR applications. The 4.3-10 connector interface ensures superior electrical performance and mechanical stability. N-female and 7/16 DIN-female connector versions are also available to meet different project specifications.
Frequently Asked Questions
- Q1: Why is the 4.3-10 connector preferred for 5G cavity splitters?
- A: The 4.3-10 connector is smaller and lighter than the 7/16 DIN, yet it offers excellent PIM performance and better mechanical stability. It is the industry standard for 5G equipment due to its reliable electrical contact even under low torque.
- Q2: Does this splitter cover the entire 5G sub-6GHz spectrum?
- A: Yes. With a range of 698-3800MHz, this model covers the critical n77 and n78 bands, which are the primary frequencies for 5G NR worldwide, as well as all legacy 4G LTE and 3G bands.
- Q3: How does the 300W power rating impact system performance?
- A: A 300W average power rating allows the splitter to handle high-power signals from multiple combined sources or high-power remote radio units (RRUs) without overheating or signal degradation, making it suitable for high-capacity DAS environments.
- Q4: What is the significance of the -160dBc PIM rating across the full 3800MHz range?
- A: Many components only specify PIM at lower frequencies. Our splitter maintains -160dBc PIM across the full 3800MHz band, ensuring that unwanted interference noise does not reduce the data speeds or capacity of your 5G network.
- Q5: Can this splitter be installed in outdoor environments?
- A: Yes. The cavity design is ruggedized for both indoor and outdoor applications. It features an IP65-ready construction that protects against dust and water ingress, though we always recommend proper weatherproofing for connectors in extreme outdoor conditions.
Mechanical Drawing
