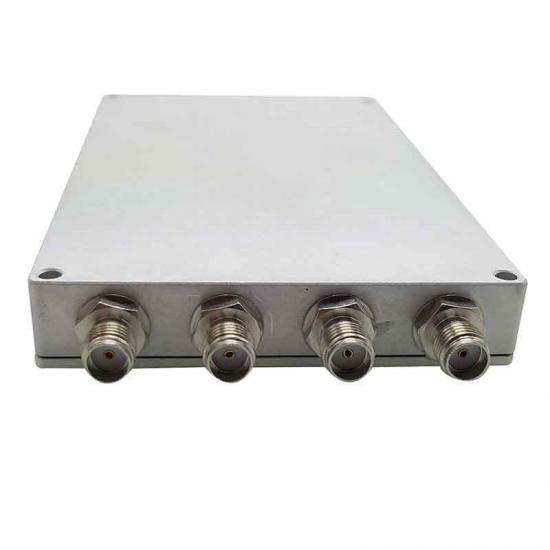

Product Overview
The 0.6-6GHz Wideband 4 Way Wilkinson Power Splitter is a versatile, high-performance component designed to cover an extensive frequency range, from sub-600MHz to 6GHz. This ultra-wideband capability makes it perfect for 5G NR, 4G LTE, and Wi-Fi 6 applications. Equipped with precision SMA-Female connectors, it offers low VSWR and excellent isolation, making it a critical asset for In-building Solutions (IBS) and laboratory high-frequency testing environments.
Technical & Mechanical Specifications
| Frequency Range | 0.6-6 GHz |
| Nominal Impedance | 50 Ohm |
| VSWR (In / Out) | 1.3 / 1.2 |
| Insertion Loss (IL) | ≤ 7.8 dB |
| Isolation | 20 dB |
| Amplitude Balance | ±0.4 dB |
| Phase Balance | ±4 deg |
| Power Handling | 30W Average |
| Connector Type | 5×SMA-Female |
| Color / Temp | Silver or Black / -40～+75℃ |
NOTE: All specifications can be customized based on your specific project needs. We offer professional OEM/ODM services, and 2-way, 6-way, and 8-way Wilkinson power dividers covering the same 0.6-6GHz wideband range are also available.
Frequently Asked Questions
- Q1: What are the benefits of the 0.6-6GHz ultra-wideband frequency range?
- A: This range is "future-proof," covering legacy 2G/3G bands, current 4G LTE, and the latest 5G Sub-6GHz and Wi-Fi 6 (5.8GHz) frequencies. It allows a single device to support multiple wireless standards, simplifying system architecture in co-siting projects.
- Q2: Why is the use of SMA-Female connectors advantageous for this model?
- A: SMA connectors are the industry standard for high-frequency testing and compact RF modules. They provide a secure threaded interface that maintains low VSWR and high reliability in indoor signal distribution and lab equipment environments up to 6GHz.
- Q3: How do Amplitude and Phase balance impact signal quality?
- A: Precision balance (±0.4 dB amplitude and ±4° phase) is critical for systems requiring synchronized signal delivery, such as MIMO (Multiple Input Multiple Output) antennas. It ensures that data streams across all four ports are processed accurately, maximizing throughput.
- Q4: Can this wideband splitter handle high-power indoor base stations?
- A: Yes, with a 30W average power handling capacity, it is robust enough for most indoor small cell deployments, repeaters, and DAS master units, ensuring long-term stability without performance degradation.
- Q5: Are other port configurations available for the 0.6-6GHz range?
- A: Absolutely. Besides this 4-way model, we offer 2-way, 6-way, and 8-way versions with the same 0.6-6GHz coverage. Our OEM service also allows for customization of the housing color, connector type, and specific electrical performance adjustments.
Mechanical Drawing
