Product Overview
The MPS-460 Series is a high-performance ultra-wideband Cavity Power Splitter series designed specifically for the global 5G and 4G/LTE markets. Covering an expansive frequency range from 380MHz to 6000MHz, these splitters support everything from public safety bands to the latest sub-6GHz 5G deployments. With a world-class PIM rating of ≤-160dBc and robust 4.3-10 Female connectors, they provide minimal interference and high power handling (300W) for both indoor Distributed Antenna Systems (IBS) and demanding outdoor infrastructures.
Technical & Mechanical Specifications
| Parameter Item | 2-Way | 3-Way | 4-Way |
|---|---|---|---|
| Model Number | MPS-460-02-4F-160 | MPS-460-03-4F-160 | MPS-460-04-4F-160 |
| Frequency Range | 380 - 6000 MHz | ||
| Insertion Loss (dB) |
≤0.4 (380-2700MHz) ≤1.5 (2700-6000MHz) |
≤0.6 (380-2700MHz) ≤2.0 (2700-6000MHz) |
≤0.6 (380-2700MHz) ≤2.0 (2700-6000MHz) |
| VSWR | ≤1.30 (380-2700MHz); ≤1.35 (2700-6000MHz) | ||
| PIM (3rd order) | ≤ -160 dBc @ 2 x 43 dBm (698-2700MHz) | ||
| Average Power | 300 W | ||
| Impedance | 50 ohm | ||
| Color | Black | ||
| Connector Type | 4.3-10 Female | ||
| Operating Temp | -30°C to +65°C | ||
NOTE: All specifications can be customized based on specific customer requirements. Our company offers a wide range of RF products to meet diverse project needs.
Our Professional Services
- Full technical support for Low PIM 5G Cavity Power Splitters.
- OEM & ODM services available for customized frequency bands or connectors.
- 24/7 dedicated support from our experienced sales and engineering teams.
- Commitment to providing tailored solutions for your infrastructure challenges.
Frequently Asked Questions
- Q1: Why is a Cavity Power Splitter better than a Wilkinson-type for high-power 5G applications?
- A: Cavity Power Splitters do not use internal resistors, allowing them to handle significantly higher power (up to 300W) and provide superior Low PIM levels. This makes them the standard choice for multi-operator 5G infrastructures where high signal purity is critical.
- Q2: What is the significance of the 4.3-10 connector type for these splitters?
- A: The 4.3-10 connector is designed for the modern 5G market. It is more compact than 7/16 DIN and provides much more stable PIM performance, as its electrical contact is separated from the mechanical coupling, ensuring reliable performance even with vibrations.
- Q3: How does the -160dBc PIM rating benefit my network?
- A: A Low PIM (≤-160dBc) ensures that the splitter generates virtually no noise when handling multiple high-power signals. This results in higher data speeds, fewer dropped calls, and overall better network capacity in high-traffic 5G environments.

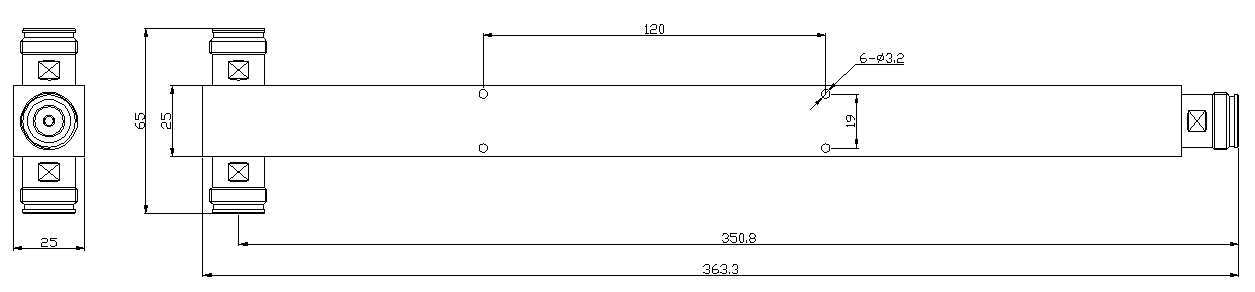

Product Detail Images
