Product Overview & Features
The 600-3800MHz 3-Way Reactive Power Splitter is a high-performance component engineered for advanced In-building Solutions (IBS). Utilizing a unique design process on microstrip boards, it delivers an exceptional -160dBc low PIM rating and an ultra-wide frequency range that covers both Public Safety and 5G NR bands. This splitter efficiently divides a single input signal into three equal outputs with ultra-low insertion loss, making it ideal for high-capacity 2G/3G/4G/5G network coverage in both indoor and outdoor environments.
Technical & Mechanical Specifications
| Parameter Item | Specification Details |
|---|---|
| Frequency Range (MHz) | 600 - 3800 MHz |
| Input / Output Port Number | 1-Port In / 3-Port Out |
| Split Loss (dB) | 4.8 dB |
| Insertion Loss (IL) | ≤ 0.6 dB |
| VSWR | ≤1.4 @600-960MHz | 1.3 @960-2700MHz | 1.4 @2700-3800MHz |
| 3rd PIM (dBc) | ≤ -160 dBc @ 2*43dBm (698-2700MHz) |
| Total Input Power | 300W CW |
| Impedance | 50 Ohms |
| Temperature Range | -30°C to +65°C |
| Connector Type | 4.3-10 Female |
| Color & IP Grade | Grey, IP65 |
| Relative Humidity | 5% - 95% |
Frequently Asked Questions (Q&A)
- Q1: What frequency bands does this 3-way power splitter support?
- A: This reactive splitter covers an ultra-wide range from 600MHz to 3800MHz, making it fully compatible with 2G, 3G, 4G LTE, and the latest 5G NR bands, as well as Public Safety networks.
- Q2: Why is the -160dBc low PIM rating significant for 5G networks?
- A: Low Passive Intermodulation (PIM) is crucial in 5G and high-capacity networks. A rating of ≤ -160dBc prevents internal interference from creating noise, ensuring higher data throughput and more stable connections for mobile users.
- Q3: Is this product suitable for outdoor use?
- A: Yes, it features an IP65 rated housing and can operate in temperatures from -30°C to +65°C, providing reliable performance for both indoor Distributed Antenna Systems (DAS) and outdoor base station installations.
- Q4: What is the benefit of using 4.3-10 Female connectors over standard connectors?
- A: 4.3-10 connectors are the modern standard for Low PIM applications. They are smaller than 7/16 DIN connectors and offer superior mechanical stability and electrical contact, which helps maintain low PIM performance in the long term.
- Q5: How does the "Split Loss" affect the signal across the 3 output ports?
- A: In a 3-way splitter, the signal is divided equally. The theoretical split loss is 4.8dB per port. Our design keeps additional insertion loss (IL) to a minimum (≤0.6dB), ensuring that each output port receives the maximum possible signal energy.

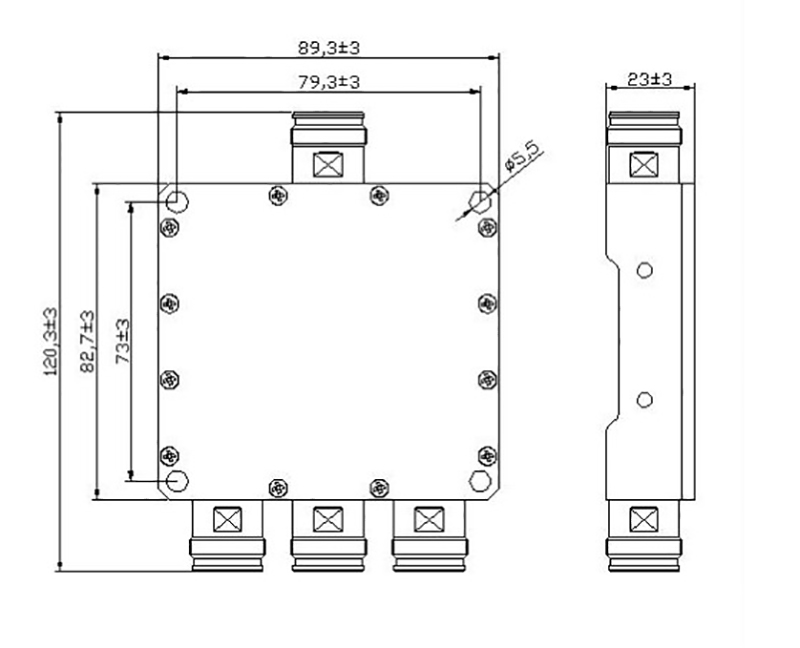

Mechanical Drawing

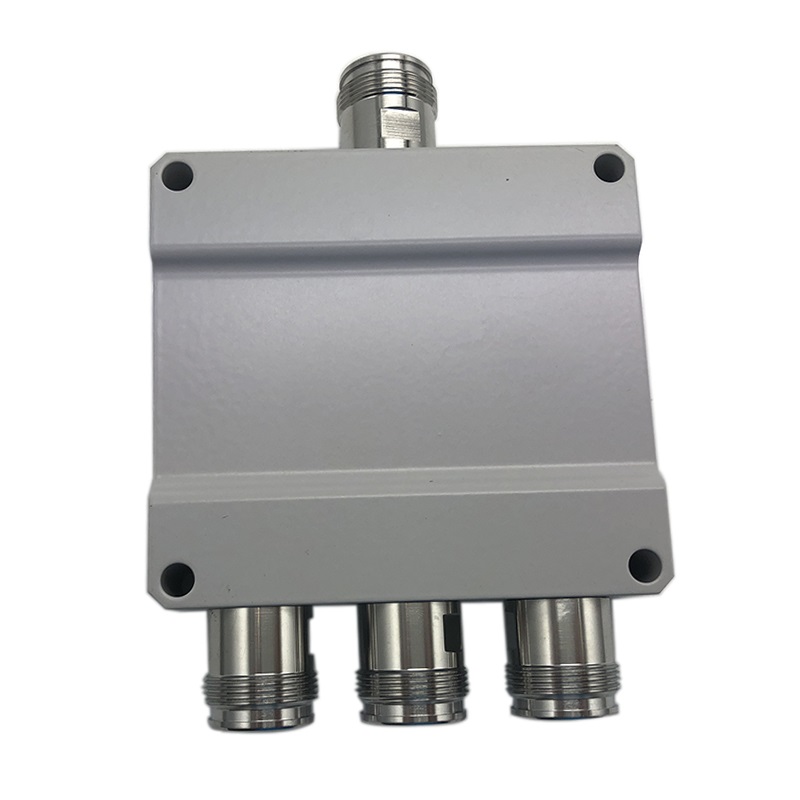

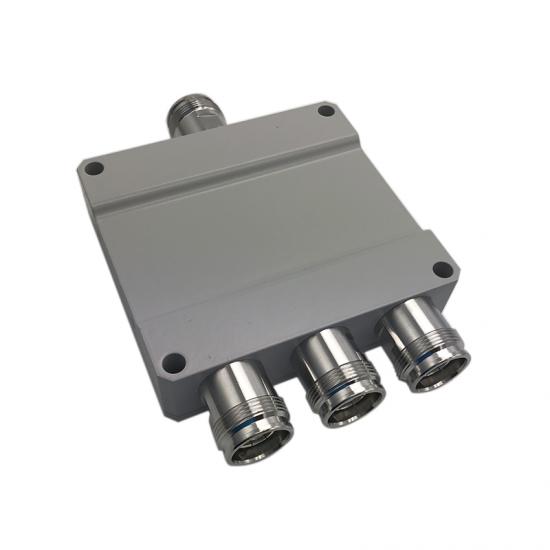

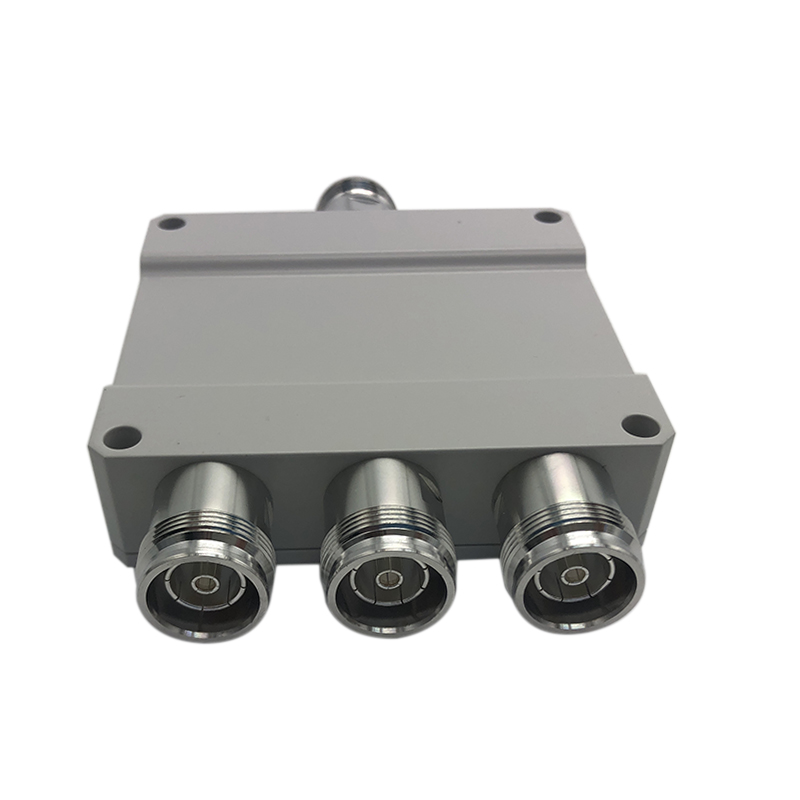

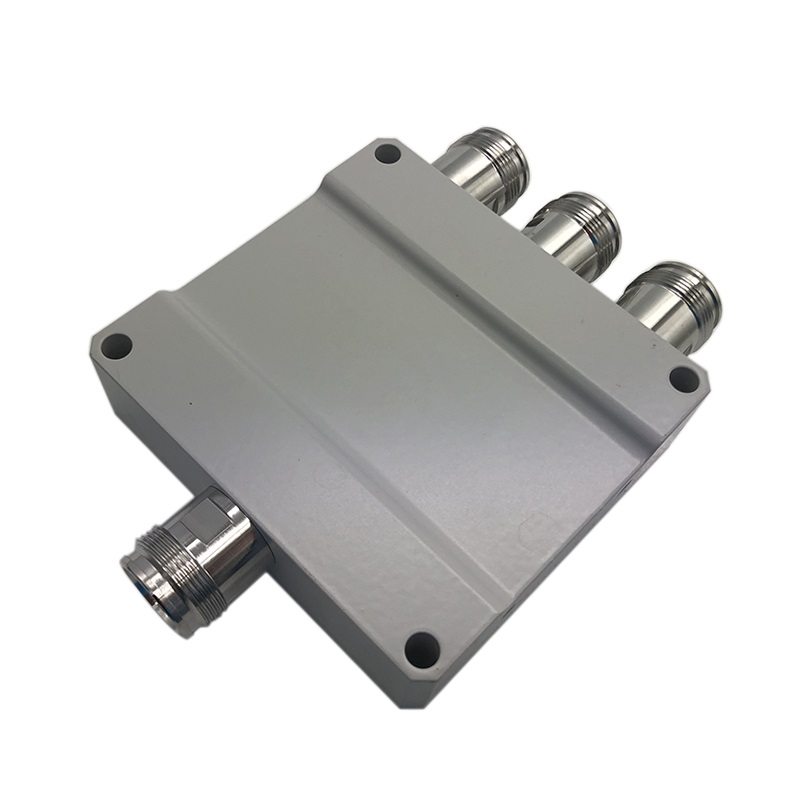

Product Images
