Product Name:

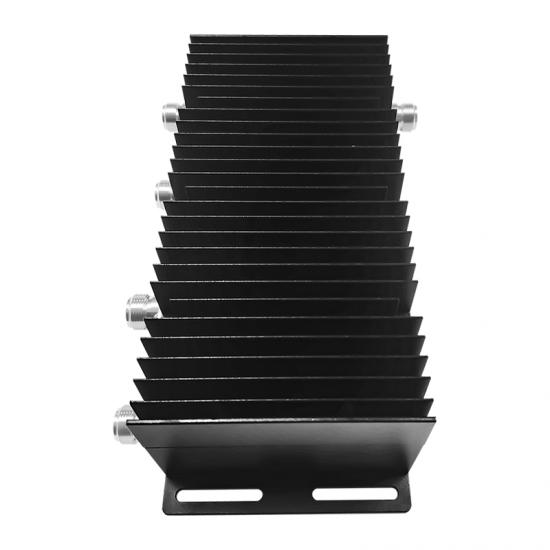

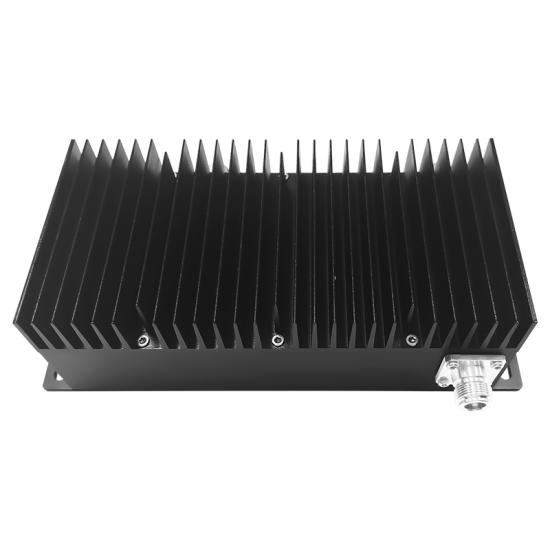

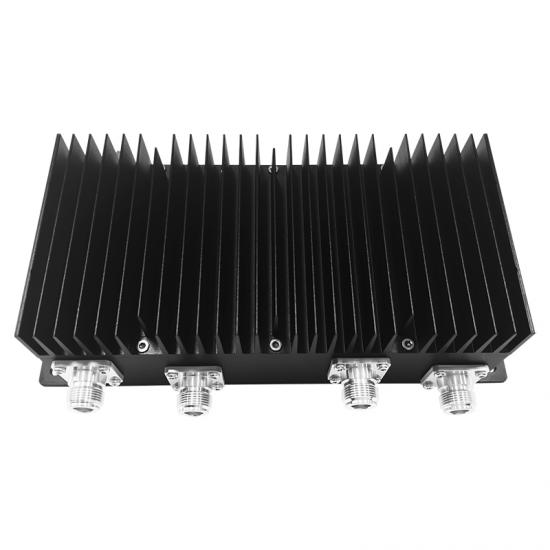

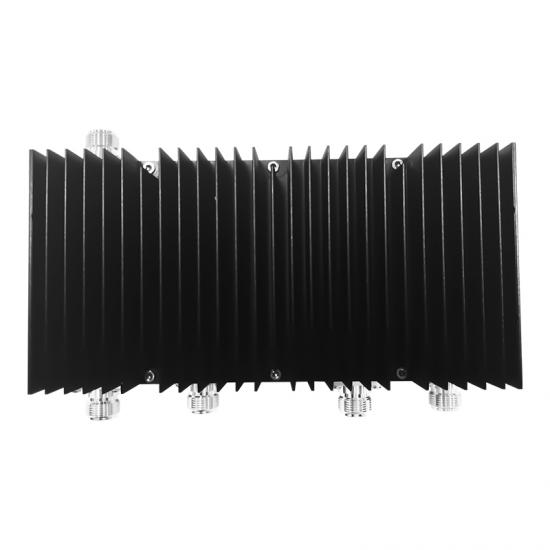

4x1 Hybrid Combiner 400-470MHz
Product Feature:
◆Low VSWR & Insertion Loss
◆ High Isolation
◆ Widely used for Solutions
Technical &Mechanical Specifications:
Frequency (MHz)
400-470
Coupling(dB)
6
Insertion Loss(dB)
6.0±0.5
Isolation(dB)
≥22
VSWR
≤1.30
Average Power(W)
100
Impedance
50 ohm
Connector
N-female
Temp(deg)
-35~+85
Aplication
Indoor
Frequently Asked Questions
Q1: What is the primary function of this 6dB hybrid combiner?
A: This 6dB hybrid combiner splits and combines UHF signals within 400-470MHz, distributing signals evenly for indoor private radio and in-building communication systems.
Q2: Why is port isolation ≥22dB a key advantage of this model?
A: High isolation above 22dB blocks crosstalk between ports, avoids mutual interference of different signal sources, and keeps the whole communication system running stably.
Q3: What benefits does the N-female connector bring to this hybrid coupler?
A: N-female connectors deliver steady RF performance across 400-470MHz, low VSWR and reliable power capacity, compatible with most UHF radio devices for quick installation.
