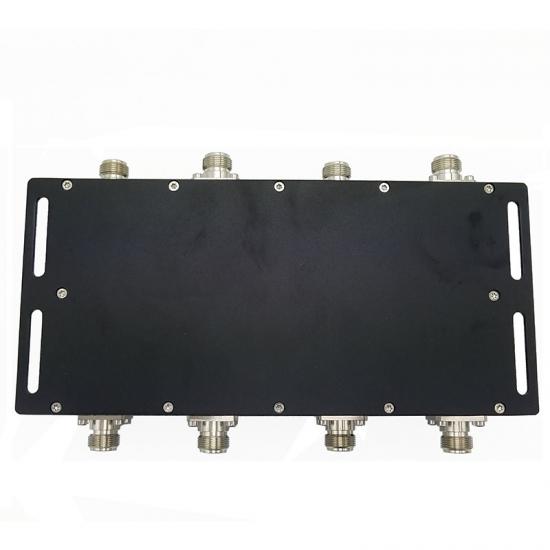

4*4 Hybrid Combiner 698-2700MHz,200W , N-F, -160dBc

4*4 Hybrid Combiner (698-2700MHz, 200W, N-F, -160dBc) ◆ Wide Frequency Band 698-4000MHz ◆ 2G/3G/4G/LTE Coverage ◆ Low Passive Inter-modulation ◆ Low VSWR & Insertion Loss ◆ High Isolation, Indoor & Outdoor, IP65 ◆ Widely used for In-building Solutions
  • Item NO.:

    MHC-727-44-NF-160
  • Lead Time:

    3-10days
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai,shenzhen,Guangzhou,Ningbo
  • Payment:

    FOB, FCA, Paypal
  • Color:

    Black or Customized
  • MOQ:

    2
  • Products Details

Product Name

4in 4out Multi Network Combiner 698-2700MHz N- F -160dBc




Product Features


◆ Wide Frequency Band 698-2700MHz

◆ 2G/3G/4G/LTE Coverage

◆ Low Passive Intermodulation

◆ Low VSWR & Insertion Loss

◆ High Isolation, Indoor & Outdoor, IP65

◆ Widely used for In-building Solutions




Technical &Mechanical Specifications


Model No.

MHC-727-44-NF-160

Freq(MHz)

698-2700

Coupling(dB)

6.1±1.0

Insertion Loss(dB)

0.5

Isolation(dB)

20

VSWR

1.3

PIM(dBc)

 -160dBc@2*43dBm

Power(W)

100W per port

Impedance

50 ohm

Connector

N-Female

Color

Black

Temp(deg)

-30~+65

Application

Indoor & Outdoor, IP65

Relative Humidity

5%-95%

Dimensions (mm)

250*115*51 (Connectors Excluded)

Net Weight (kg)

2.06
