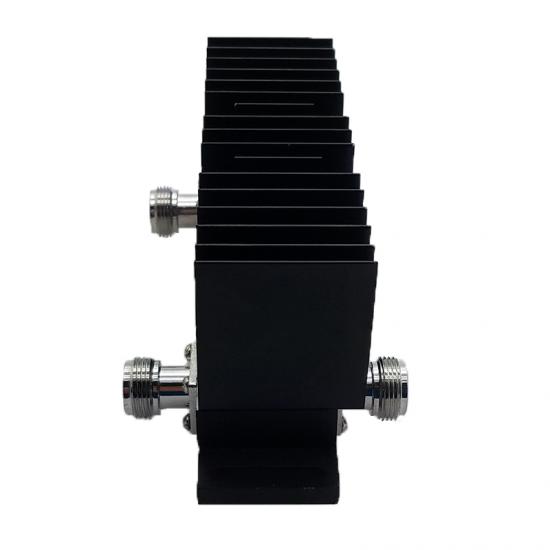

698-2700MHz 2 in 1 out 3dB Hybrid Coupler

698-2700MHz 2 in 1 out hybrid coupler , 200W with heat sink, N-female
  • Item NO.:

    MHC-727-21-NF
  • Lead Time:

    According to the exact order quantity
  • Product Orgin:

    China
  • Shipping Port:

    Shanghai,Shenzhen,Guangzhou
  • Color:

    Black
  • MOQ:

    1
  • Products Details

Product Name

2:1 Hybrid Coupler (698-2700MHz, 200W,N-F)


Product Features

698-2700MHz 2in 1out Hybrid Coupler

◆ Wide Frequency Band 698-2700MHz

◆ 2G/3G/4G/LTE Coverage

◆ Low Insertion Loss

◆ Low VSWR & High Isolation

◆ Indoor Application

◆ Widely used for In-building Solutions





Technical &Mechanical Specifications



Model No.

MHC-727-21-NF

Freq(MHz)

800-2700

Coupling(dB)

3.0

Insertion Loss(dB)

0.6

Isolation(dB)

23

VSWR

1.25

Average Power(W)

200W with heat sink

Impedance

50 ohm

Connector

N-female

Color

Black

Temp(deg)

-35~+65

Application

Indoor

Relative Humidity

5%-95%
