Product Name
Low VSWR&Insertion Loss 300W 2 IN 2OUT 376-3850MHz Hybrid Coupler with 4.3-10 Female Connector, which is high isolation,widely used for In-building Solutions.
Product Features
◆Wide Frequency Band 376-3850MHz
◆Tetra/2G/3G/4G/LTE/5G Coverage
◆Low VSWR&Insertion Loss
◆High Isolation
◆Widely used for Outdoor Solutions
Technical and Electronic Specifications
|
Model NO |
MNHC-2x2-340-43F-155 |
|
Frequency (MHz) |
376-3850MHz |
|
PIM(dBc) |
≤-155dBc@2*43dBm |
|
Insertion Loss(dB) |
3.1±1.0 |
|
Isolation(dB) |
≥25 |
|
VSWR |
≤1.30 |
|
Average Power(W) |
300 |
|
Impedance |
50 ohm |
|
Connector |
4.3/10-female |
|
Color |
Grey-plated |
|
Temp(deg) |
-35~+85 |
|
Application |
IP65 |

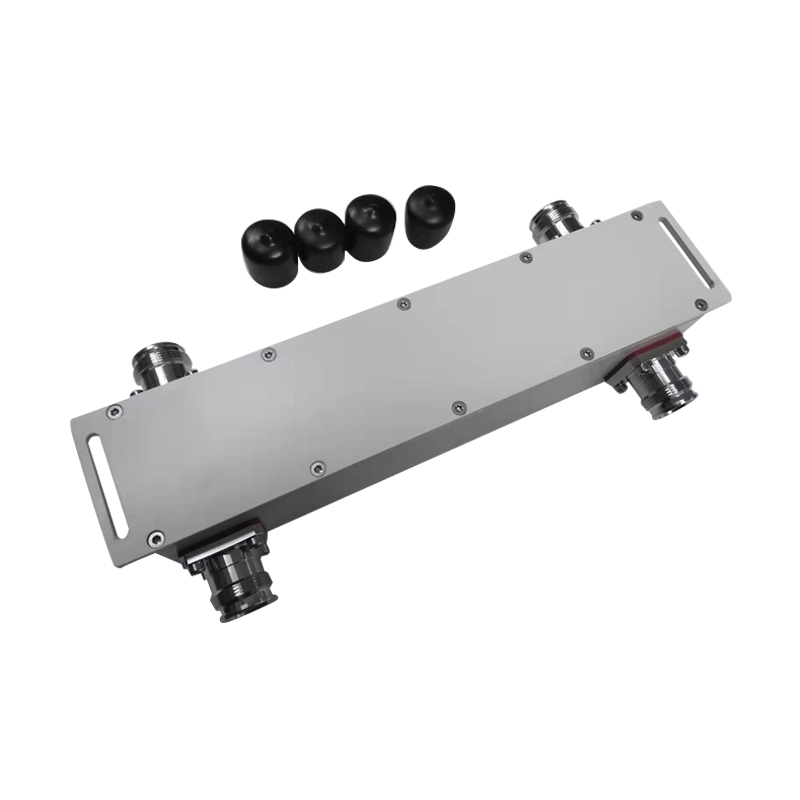

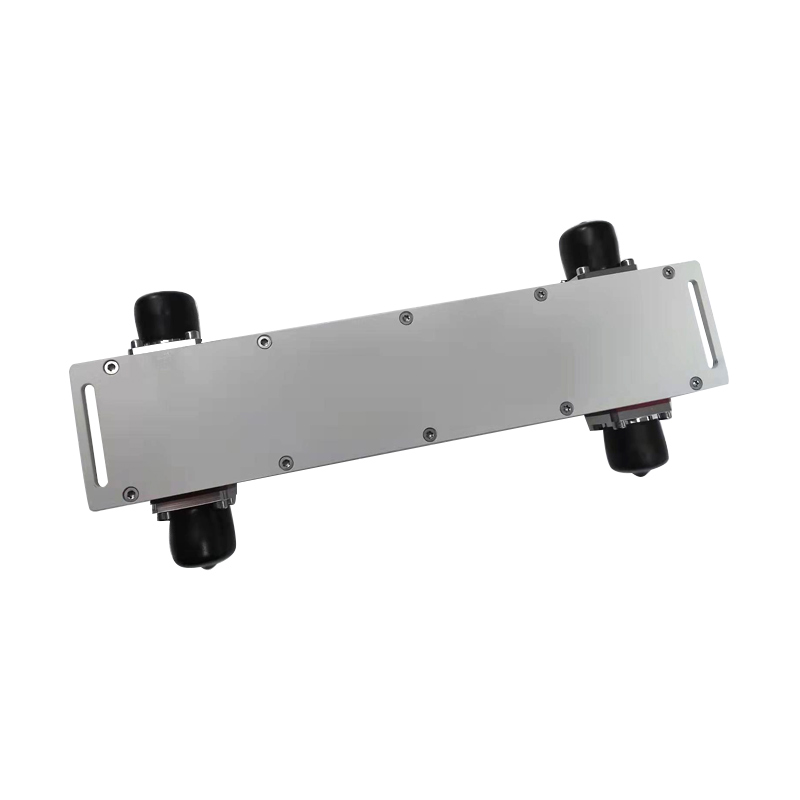

Product Picture
The hybrid combiner is a broadband adder subtractor circuit used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on transmission lines and is most commonly used in high power broadband applications. The circuit equivalent of the hybrid combiner is shown in the figure. It is based on a trifilar winding and is connected with the winding senses shown.
