2*2 Hybrid Combiner 10-50MHz RF Combiner

2*2 Hybrid Combiner 10-50MHz RF Combiner

Wide frequency band, 2*2 Hybrid Combiner is an ideal for in-building solutions, DAS deployments, cellular infrastructure, and public safety systems

Item NO.:
HC-10-50-22-NF-200W
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Black
MOQ:
50

Inquiry now

Products Details

Product Name

2*2 Hybrid Combiner 10-50MHz RF Combiner

Product Features

◆Compact, low weight

◆Low VSWR

◆High reliability

◆Low Insertion Loss

Technical &Mechanical Specifications

参数	数值
Model No.	HC-10-50-22-NF-200W
Freq(MHz)	10-50
Insertion Loss(dB)	3.0±2.5
Port Isolation(dB)	≥23
VSWR	≤1.25
Impedance	50 ohm
Color	Black
Temp(deg)	-40~+65
Average Power(W)	200W
Connector	N-Female
Relative Humidity	5%-95%

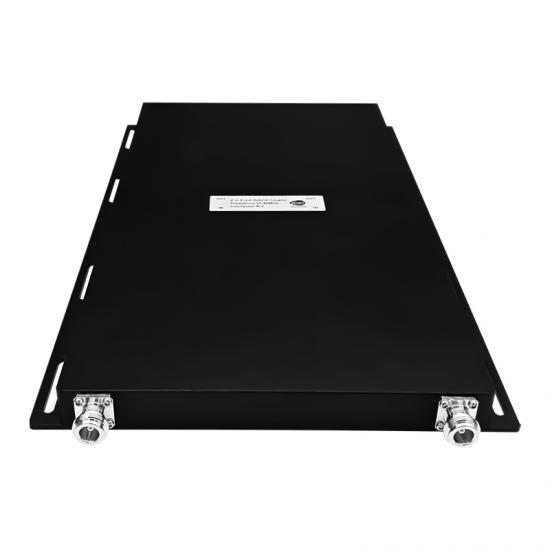

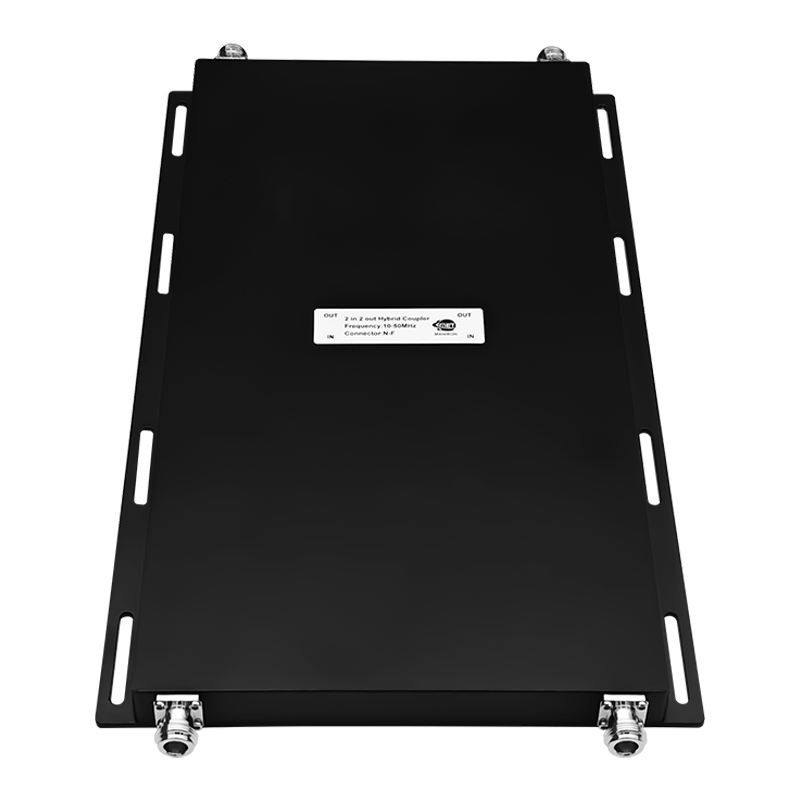

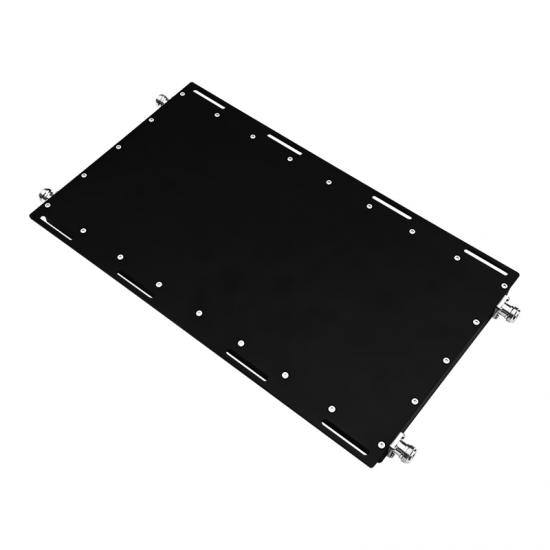

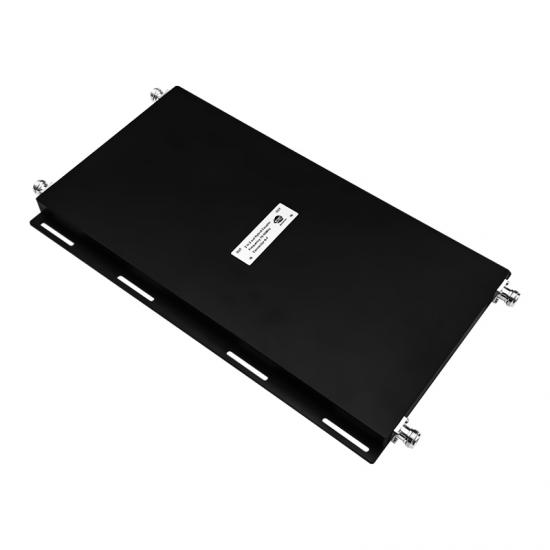

Images:

Our Advantages

Hefei Maniron Electronic And Technology Co.,Ltd.,established in 2002,located in Hefei National Hi-tech Industry Development Zone,is a leading manufacture of RF Components.

OEM services are offered.Maniron has a huge fellowship that is composed of many high-level technologists.We also has established a Research Insititution which is a cooperating with some famous universties in China.

Excelent engineers and profesional team

We also other passive components with Low PIM values,such as -150dBc,160dBc,161dBc etc.

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 2*2 Hybrid Combiner 10-50MHz RF Combiner
Im interested in your "2*2 Hybrid Combiner 10-50MHz RF Combiner", please inform me more detailed product information and price. Thankyou!
