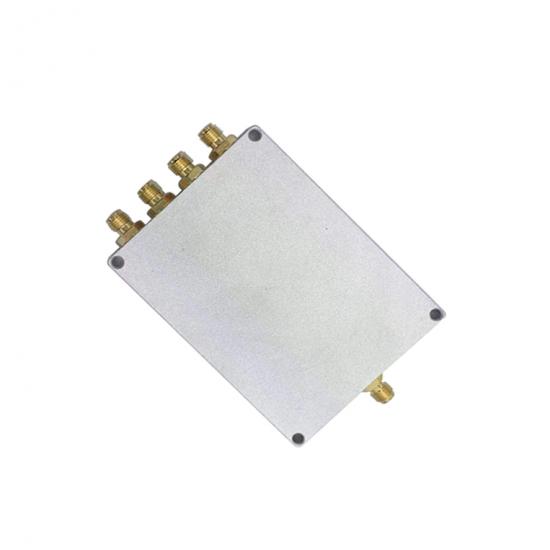

50W 0.5-6GHz 4 way Power Splitter SMA

4 way Power Splitter (Wilkinson Model, 0.5-6GHz, 50W, SMA-F)
  • Item NO.:

    MPS-056-04-SF
  • Lead Time:

    According to quantity
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen
  • Payment:

    FOB, FCA, Paypal
  • Color:

    Silvery White or customized
  • Products Details

Product Name

4-way Power Splitter (Wilkinson Model, 0.5-6GHz, 50W, SMA-F)


Product Features

Wide Frequency Band 0.5-6GHz

2G/3G/4G/LTE Coverage

Low Insertion Loss

Low VSWR

Widely used for In-building Solutions


Technical &Mechanical Specifications

Freq(GHz)

0.5-6GHz

IL(dB)(Including Split Loss)

               ≤8

Isolation(dB)

16min(0.5-0.6GHz)

18 min(0.6-6GHz)

VSWR(Input)

   ≤1.40.5-0.6GHz

≤1.4(0.6-6GHz)

VSWR(Output)

    ≤1.40.5-0.6GHz

≤1.3(0.6-6GHz)

Power Handling (W)

50

Impedance

50 ohm

Connector

SMA-female

Color

Silvery White

Temp(deg)

-45~+85

Weight(kg)

0.14
