Product Feature:
◆ Cryogenic rated, stable performance at ultra-low temperature
◆ Non-magnetic RF attenuator, DC-18GHz, 2W
◆ Low VSWR ≤1.25, 50 Ohm
◆ SMA Male to Female, gold-plated Be-Cu
◆ Designed for cryostat, quantum measurement & low-temp microwave systems
Technical &Mechanical Specifications:
Model No.
MAT-XX-18G-S/MF-CR(XX means attenuation in dB)
Freq, [GHz]
DC-18GHz
VSWR
≤1.25
Return Loss, [dB]
18.78dB
Power, [W]
2W at 25 ℃ ambient temperature. Linearly derated to 0.2 w at 100℃ ambient temperature.
Attenuation, [dB]
0 / 3 / 6 / 10 / 20 / 30
Accuracy, [dB]
±0.6 / ±0.6 / ±0.6 / ±0.6 / ±0.6 / ±0.6
Impedance, [Ohm]
50
Connector
SMA/plug(male) to SMA/jack(female)
Color
Gold
Operating temperature
-273.146℃~+125℃
Storage temperature
-40℃~+125℃
ROHS
Compliant

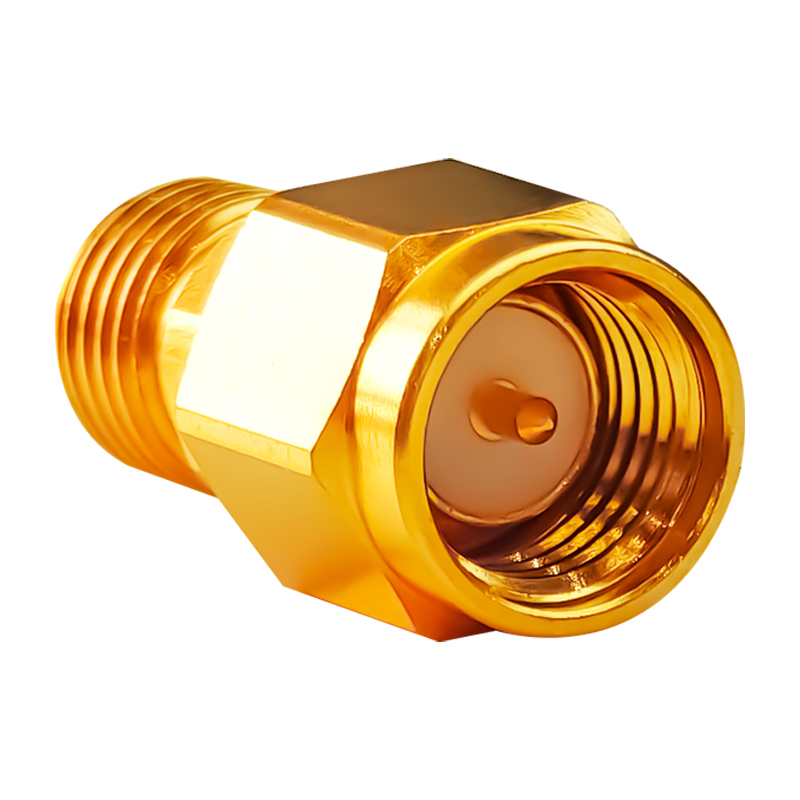

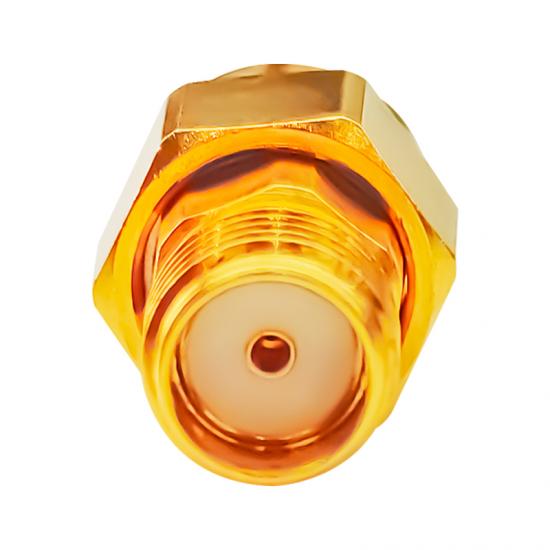

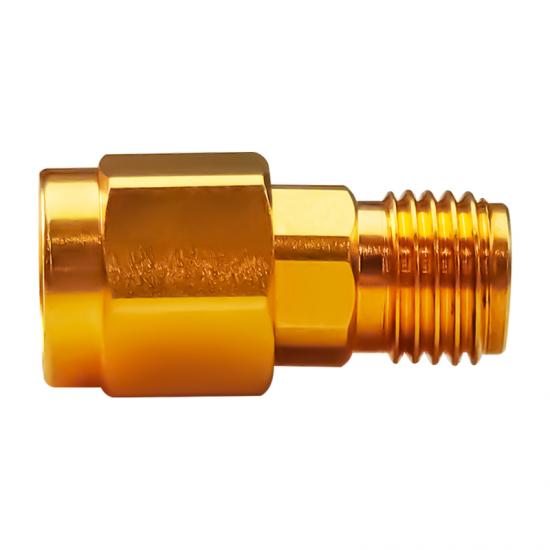

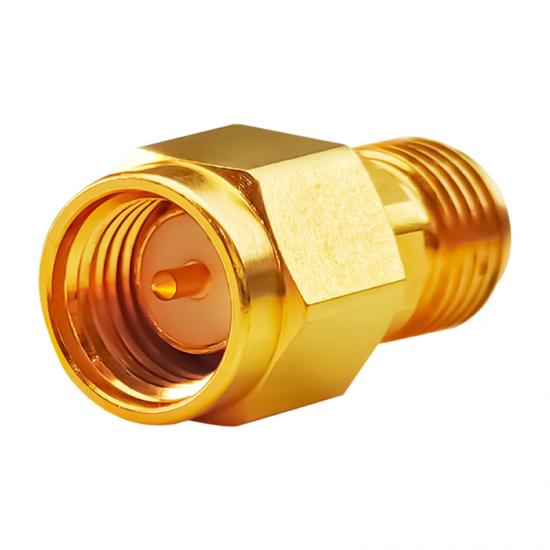

Product Pictures:
OUR SERVICES
1. Professional skills support for RF Passive Products
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose.
