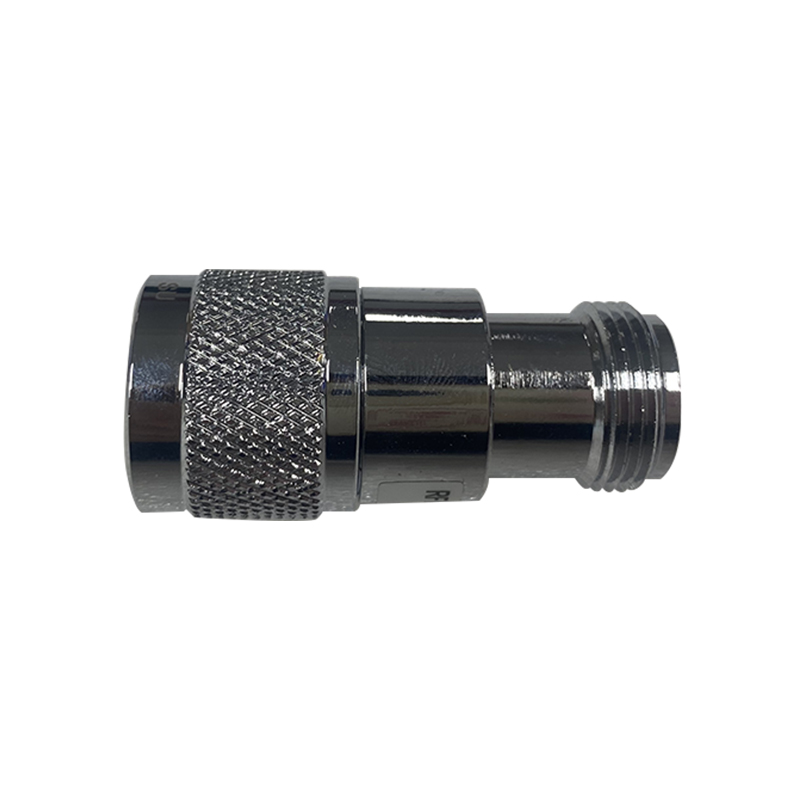

DC-6GHz N type 2W RF Coaxial Attenuator With High Performance

DC-6GHz N 2W RF coaxial Attenuator is wide frequency band,used in DAS/IBS.
  • Item NO.:

    MNA-6-2-XX-NMF
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Products Details

Product name

DC-6GHz N type 2W RF coaxial Attenuatois used for IBS BTS DAS,with high performance.DC-6GHz N male to female 2W RF Attenuator is wide frequency band used in Commercial, LAB.


Product features

◆ Wide Frequency Band for IBS BTS DAS

◆ 2G/3G/4G/5G/LTE Coverage

◆ Low VSWR &Insertion Loss

◆ Widely used for In-building Solutions


Technical & Electronical specifications

  Model No.

                                                                MNA-6-2-XX-NMF

Freq(MHz)

DC-6GHz

VSWR

≤1.2 @DC-2.5GHz, ≤1.25 @2.5-6GHz

Power(W)

2 (average)

Attenuation(dB)

3

6

10

20

30

Accuracy(dB)

 ±0.3

 ±0.5

 ±0.6

 ±0.8

±1.0

Impedance

50 ohm

Connector

N-male to N-female

Color

Silver

Temp(deg)

-20~+115

Dimension(mm)

∅18*44.7

DC-6GHz N type 2W RF Coaxial AttenuatorDC-6GHz N type 2W RF Coaxial Attenuator
