Low Insertion Loss 5-500MHz 2 Way Power Splitter with SMA Female connector

5-500MHz 2 Way Power Splitter has Low Insertion Loss,widely used for In-building Solutions.

Item NO.:
MNPS-5500-02-S2
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Black

Inquiry now

Products Details

Product Name

5-500MHz 2 way power splitter

Product Features

◆ Low VSWR 2 way power splitter 5-500MHz

◆ Low Insertion Loss

◆ Wide band

◆ Widely used for In-building Solutions

Technical &Mechanical Specifications

Model No.	MNPS-5500-02-S2
Freq(MHz)	5-500
Insertion Loss(dB)	≤0.6
Isolation(dB)	20dB min
IN VSWR	1.25 max
OUT VSWR	1.25 max
Average Power Rating(W)	1
Impedance	50 ohm
Connector	SMA Female
Color	Black
Operating Temperature	-35℃ ~ +75℃

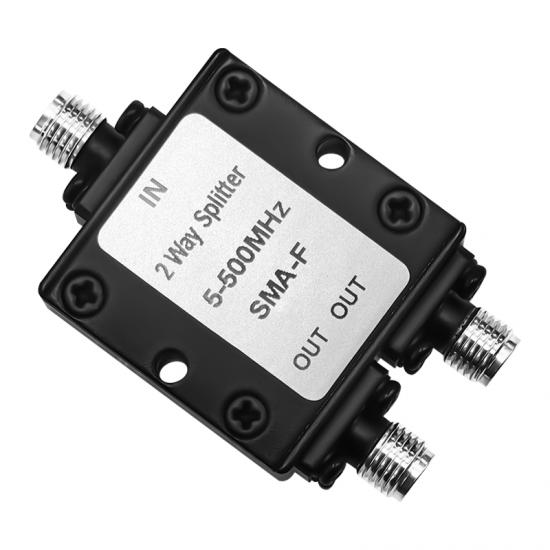

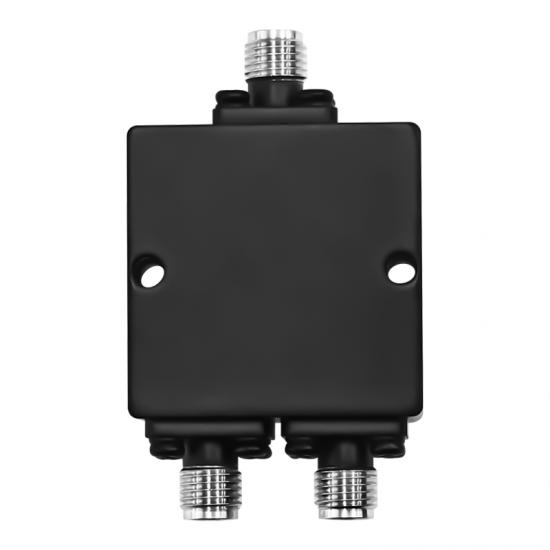

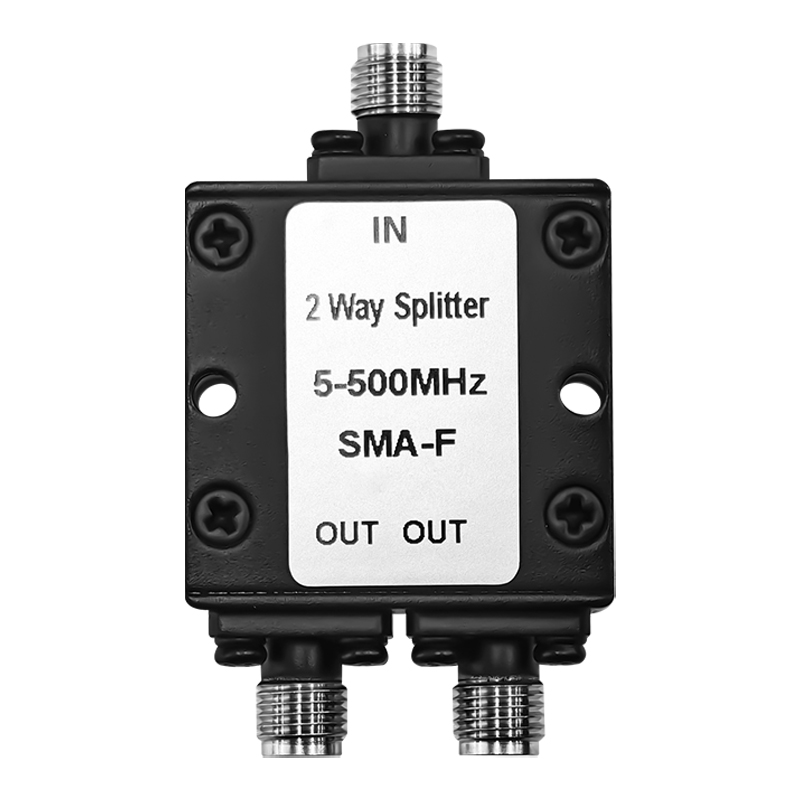

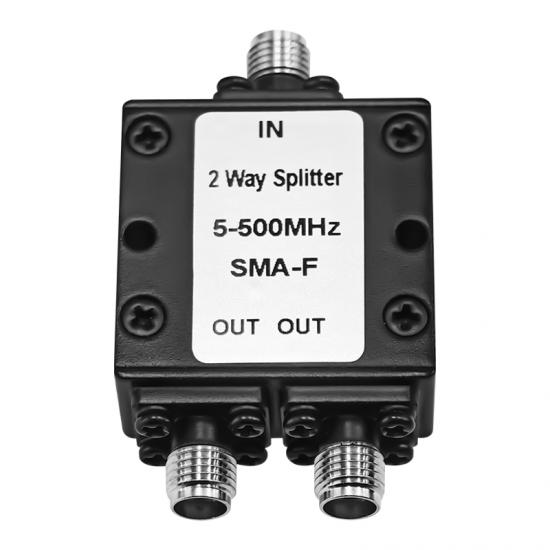

Product Pictures:

OUR SERVICES

1. Professional skills support for RF Passive Products
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose.
