UHF 400-470MHz 8 Way Wilkinson Power Splitter With N-F Connector

UHF Wilkinson/Microstrip Power Splitter has wide frequency band 400-470MHz,It has low insertion loss and VSWR

Item NO.:
MNPD-0.4/0.47-8N
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Black/Customized

Inquiry now

Products Details

Product Name

400-470MHz VHF 8 way Wilkinson Power Divider Splitter

Product Features

◆ Low VSWR

◆ Low Insertion Loss

◆ Wide band

◆ Widely used for In-building Solutions application.

Technical &Mechanical Specifications

Item No	MNPD-0.4/0.47-8N
Freq(MHz)	400-470MHz
Input Port Number	1
Output Port Number	8
Input VSWR	Typ.1.18 / Max.1.25
Output VSWR	Typ.1.12 / Max.1.20
IL(dB)(Including Split Loss)	≤ 0.6dB
Isolation(dB)	Typ.26dB / Min.20dB
Average Power(W)	20
Connector Type	N-F
Outline Dimensions	12820820（mm）

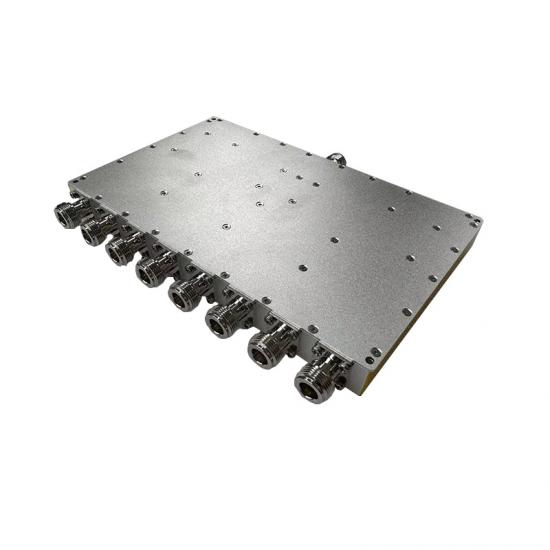

Product Pictures

OUR SERVICES

1. Professional skills support for RF Passive Components UHF Wilkson power splitter

2. OEM services is available.

3. 24 hours you can contact our salesman and engineer.

4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose!
