25w termination load DC-3GHz,N-M

DC-3000MHz, N-male 25W Low VSWR Termination Load  is Widely used for indoor and outdoor Solutions
  • Item NO.:

    MNT-25-3G-NM
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou/Ningbo
  • Color:

    Black
  • Products Details

Product Name:

25W Termination Load (DC-3000MHz,  N-male)


Product Feature:

 Wide Frequency Band

 2G/3G/4G/LTE Coverage

 Low VSWR

 Widely used for indoor and outdoor Solutions


Technical &Mechanical Specifications:

Model No.

MNT-25-3G-NM
Frequency
DC-3000 MHz
VSWR
≤1.25

Impedance

50Ω

Average Power(W)

25W

Connectors type

N-Male

Operating temperature range

-30°C to +65°C

Applications

IP60

Color

Black

Packing
1Pce in box

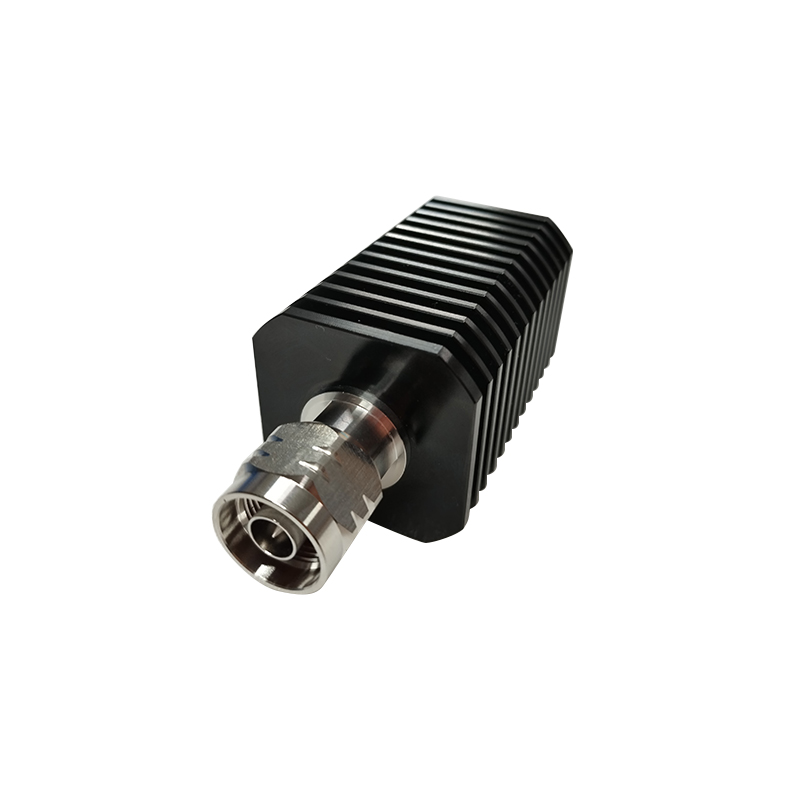

Product Pictures:
