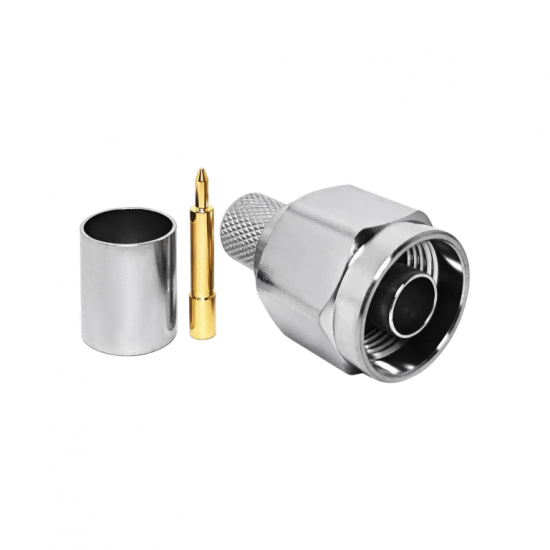

DC-6GHz N Male Connector Crimp Type Low VSWR

Crimp N Male Connector, Brass with Gold-Plated Center Contact covers frequency DC~6GHz with 50Ω impedance. It adopts brass body and PTFE insulator, low VSWR ≤1.2, designed for RF coaxial cable assembly.

  • Item NO.:

    MN-6-50-NM-C

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Ningbo/Shenzhen
Inquiry now
  • Products Details

Product Name

DC-6GHz Crimp N Male Connector 50 Ohm for LMR400


Product Features

◆ Brass body with tri-metal plated

◆ Brass center conductor gold plated

◆ PTFE insulator, stable electrical performance

◆ Comply with IEC 60169-16 /MIL-C-39012 standard


Technical &Mechanical Specifications

Electrical Specifications

Frequency range

DC~6GHz

Impedance

50Ω

Withstand Voltage

2500V rms

Working Voltage

1500V

VSWR

≤ 1.2

Contact resistance - center contact

≤1mΩ

Contact resistance - outer contact

≤1mΩ

Insulation resistance

≥5000MΩ

Material Specifications

Body

Brass

Tri-Metal plated

Center conductor

Brass

Gold plated

Crimping suite

Copper alloy

Nickel plated

Insulator

PTFE

—

O-ring sealing

6146 silastic

—

Mechanical Specifications

Temperature range

-55℃~+155℃

Durability(matings)

>500

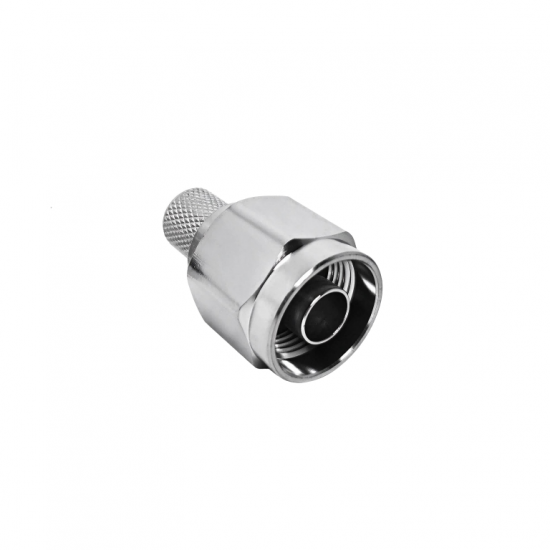

Product picture

OUR SERVICES

1. Professional skills support for RF Passive Products
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
