Product Name
690-2690MHz 12‑Port 2L4H Multi‑Band Base Station Antenna
Product Features
◆ Wide Frequency Band 690-2690MHz
◆ Low VSWR
◆ High Gain
◆ Widely used for DAS
Technical &Mechanical Specifications
Technical Specifications
Frequency Range (MHz)

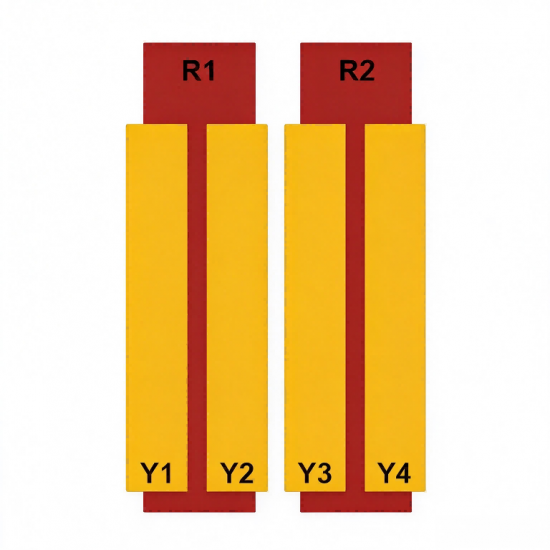

2 × (690 – 960) (R1, R2)
690-792
792-880
880-960
Polarization
±45°
Electrical Downtilt (°)
2-12, Independently continuously adjustable
Gain (dBi)
at mid Tilt
15.4
15.9
16.4
over all Tilts
15.3±0.9
15.8±0.9
16.3±0.9

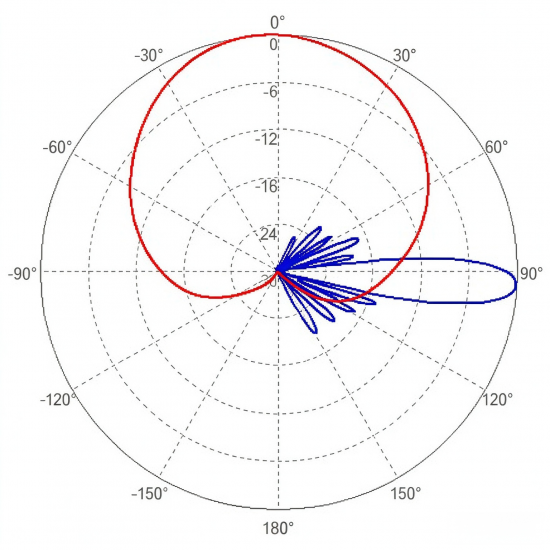

Horizontal 3dB Beam Width (°)
65±5
62±4
63±6
Vertical 3dB Beam Width (°)
11. 1±0.9
10±0.9
8.9±0.5
Cross-Polar Ratio, 0° (dB)
>20
>21
>21
Front to Back Ratio, ±30° (dB)
>21
>22
>24
Frequency Range (MHz)
2 × (1710 – 2690) (Y1, Y4)
1710-1880
1920-2170
2200-2500
2500-2690
Polarization
±45°
Electrical Downtilt (°)
2-12, Independently continuously adjustable
Gain (dBi)
at mid Tilt
17.1
17.5
17.9
18.4
over all Tilts
16.9±0.5
17.4±0.5
17.7±0.5
18.3±0.5
Side lobe suppression for first side lobe above main beam (dB)
> 17
> 17
> 17
> 15

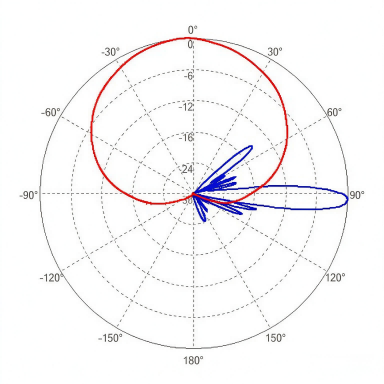

Horizontal 3dB Beam Width (°)
69±6
65±4
62±6
57±5
Vertical 3dB Beam Width (°)
7.3±0.5
6.5±0.5
5.5±0.5
5. 1±0.3
Cross-Polar Ratio, 0° (dB)
> 18
>21
>21
>21
Front to Back Ratio, ±30° (dB)
>22
>25
>24
>24
Frequency Range (MHz)
2 × (1427 – 2690) (Y2, Y3)
1427-1518
1710-1880
1920-2170
2200-2500
2500-2690
Polarization
±45°
Electrical Downtilt (°)
2-12, Independently continuously adjustable
Gain (dBi)
at mid Tilt
15.6
17.1
17.5
17.9
18.4
over all Tilts
15.5±0.7
16.9±0.5
17.4±0.5
17.7±0.5
18.3±0.5
Side lobe suppression for first side lobe above main beam (dB)
> 15
> 16
> 16
> 15
> 15
Horizontal 3dB Beam Width (°)
85±6
69±6
65±4
62±6
57±5
Vertical 3dB Beam Width (°)
8.5±0.6
7.3±0.5
6.5±0.5
5.5±0.5
5. 1±0.3
Cross-Polar Ratio, 0° (dB)
> 17
> 18
>21
>21
>21
Front to Back Ratio, ±30° (dB)
>23
>22
>25
>24
>24
VSWR
≤ 1.5
Intermodulation IM3 (dBc)
≤-150 (2 x 43 dBm carrier)
Cross Polar Isolation (dB)
≥25 (R1, R2); ≥27 (Y1, Y4); ≥25 (Y2, Y3);
Interband isolation (dB)
≥25
Max. power per port (W)
250 (R1, R2); 200 (Y1, Y2, Y3, Y4)
Impedance (Ω)
50
Grounding
DC Grounding
Values based on NGMN recommendations on Base Station Antenna Standards V12.0(BASTA V12.0)
Mechanical Specifications
RET type
Integrated RET (AISG2.0/3GPP)
AISG Connectors (2 in 2 out)
4x8 pin (in: Male; out: Female)

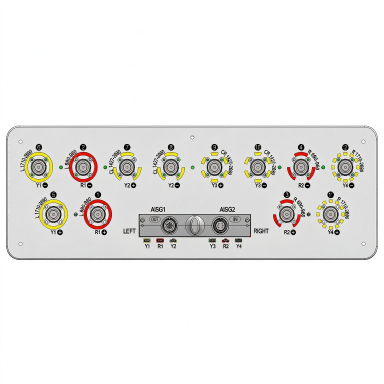

Connector
12 x 4.3- 10 Female, Bottom
Antenna dimensions (H x W x D) (mm)
1985 x 500 x 160
Packing dimensions (H x W x D) (mm)
2260 x 615 x 290
Antenna weight (kg)
35.3
Clamps weight (kg)
6.8
Diameter of installation pole (mm)
φ50 ~φ 125
Radome material
Fiberglass
Radome color
Light grey
Operational temperature (℃)
-40 to +70
Wind load at 42m/s (N)
1481/ 364/ 1481 (Frontal/ Lateral/ Rearal)
Max. operational wind speed (km/h)
200
