English

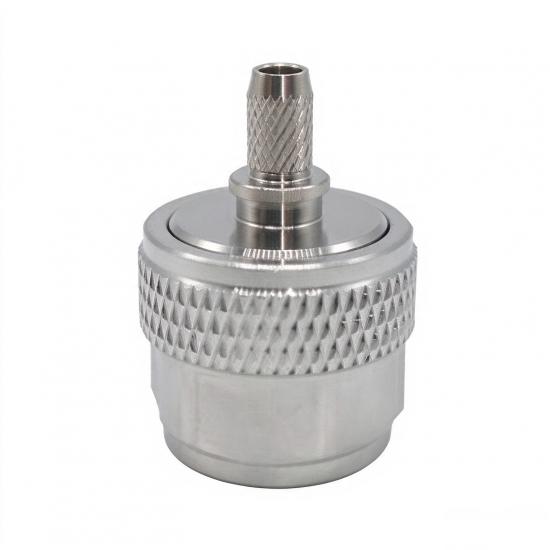

DC-6GHz N MALE CRIMP FOR RG142 CABLE

N male crimp connector is designed for RG142 cable. 50Ω impedance, stable RF transmission, brass with gold plating, RoHS compliant for communication systems.

Item NO.:
MNLL-06-NM
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Ningbo/Shenzhen

Inquiry now

Products Details

Product Name

DC-6GHz N MALE CRIMP FOR RG142 CABLE

Product Features

◆ Brass body with tri-metal plated

◆ Brass center conductor gold plated

◆ PTFE insulator, stable electrical performance

◆ Crimp type design, compatible with RG142 cable, easy assembly

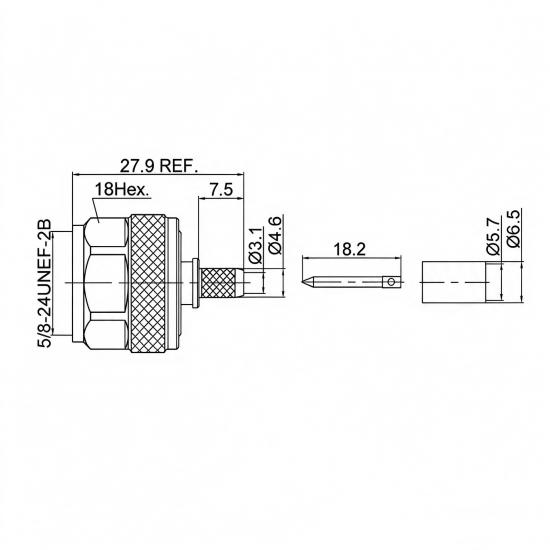

Technical &Mechanical Specifications

Frequency Range	DC-6GHz
VSWR（Max）	1.15（DC-3GHz）
Center conductor	Brass, Gold Plating
Insulators	PTFE
Impedance	50ohms
Gasket	Silicone Rubber
Connector	N MALE CRIMP

OUR SERVICES

1. Professional skills support for RF Passive Products
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : DC-6GHz N MALE CRIMP FOR RG142 CABLE
Im interested in your "DC-6GHz N MALE CRIMP FOR RG142 CABLE", please inform me more detailed product information and price. Thankyou!
