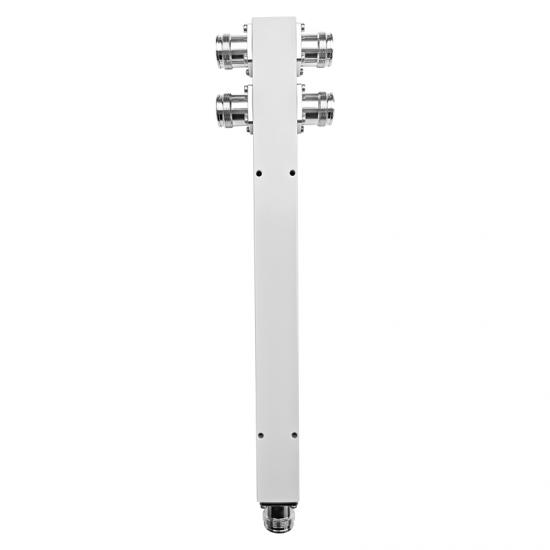

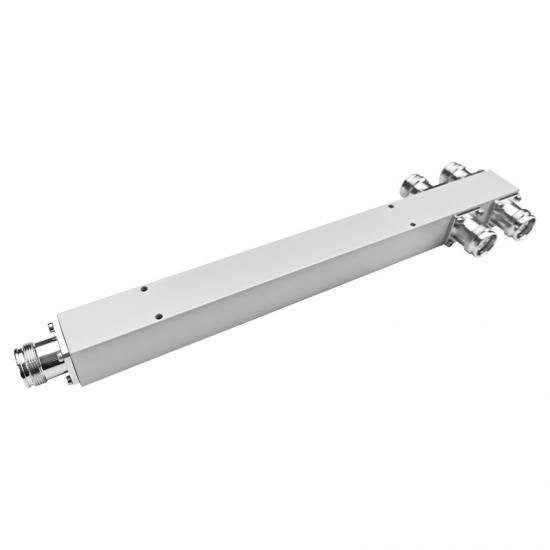

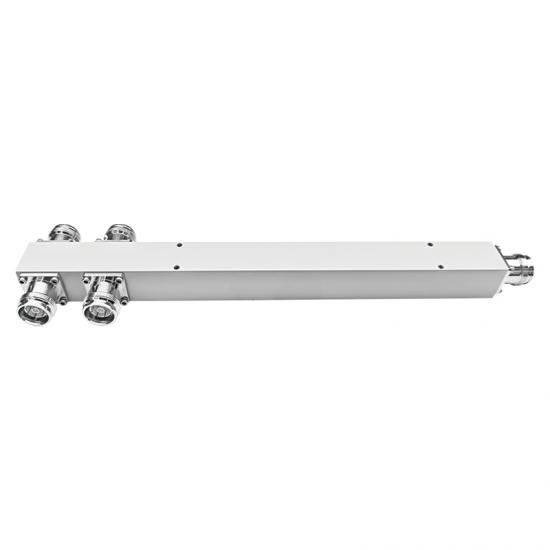

555-6000MHz 2-Way 3-Way 4-Way RF Cavity Power Splitter

555-6000MHz 2 Way 3 Way 4 Way Cavity Power Splitter/Divider with 4.3-10 female connector ,low insertion loss,low VSWR

Item NO.:
MPS-5560-02-41F-163
Lead Time:
According to quantity
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai,shenzhen
Color:
Black or customized
MOQ:
2

Inquiry now

Products Details

Product Name

555-6000MHz 2-Way 3-Way 4-Way Cavity Power Splitter with 4.3-10-F

Low PIM Wideband Power Splitters Power Divider are used for 5G market

Product Features

◆ Low VSWR

◆ Low Insertion Loss

◆ Indoor or outdoor Application

◆Widely used for In-building Solutions and Outdoor application.

Technical &Mechanical Specifications

Model No.	MPS-5560-02-41F-163	MPS-5560-03-41F-163	MPS-5560-04-41F-163
Part No.	BN 5706XC	BN 5706XD	BN 5706XE
Freq(MHz)	555-6000
Split Loss(dB)	3.0	4.8	6.0
Insertion Loss(dB)	≤0.3 @555-2700MHz ≤0.4@2700-6000MHz	≤0.4 @555-2700MHz ≤0.6@2700-6000MHz	≤0.4@555-2700MHz ≤0.6@2700-3800MHz ≤1.0@3800-6000MHz
Return loss (Port 1)	≤1.30(Port 1)	≤1.30(Port 1)	≤1.35(Port 1)
PIM3 (dBc)	≤-163dBc@2*43dBm
Total Input Power(W)	300
Impedance	50 ohm

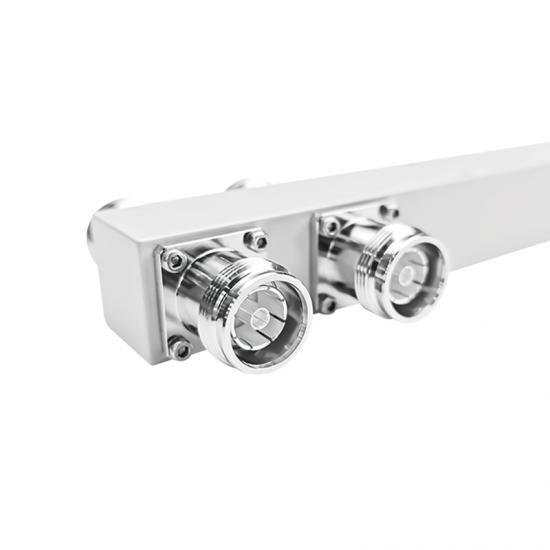

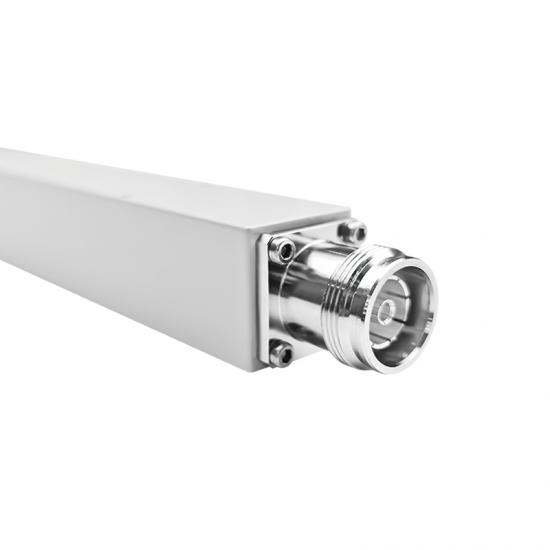

Connector	4.3/10-female
Color	Grey (RAL 7047)
Temp(deg)	-35~+75
Application	Indoor or Outdoor, IP65

OUR SERVICES
1. Professional skills support
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
