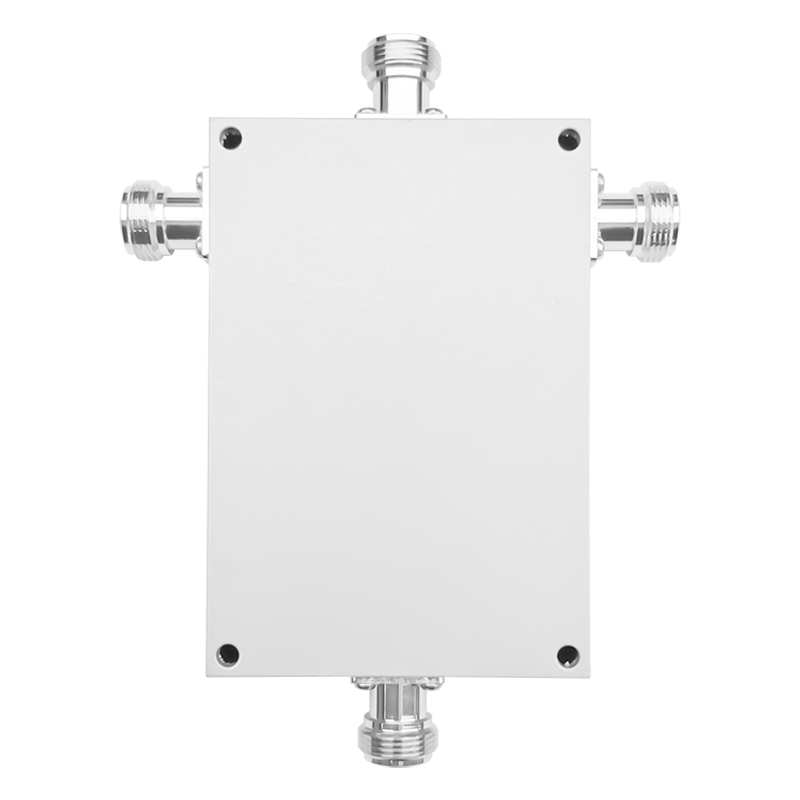

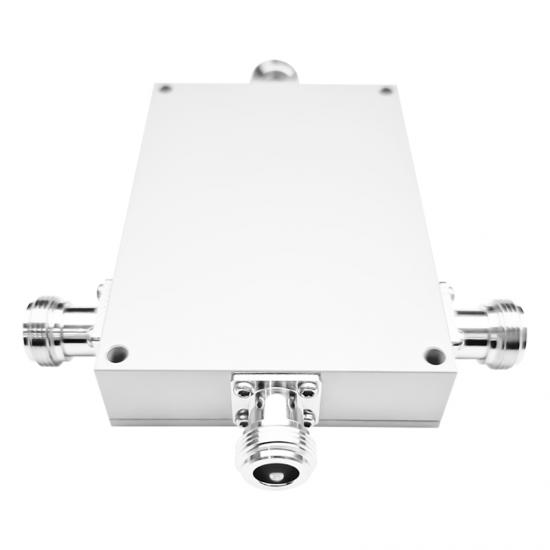

Maniron 380-2700MHz Low Power Splitter with N Female Connector

380-2700MHz Wilkinson Power Splitter/Divider with N Female Connector, High Isolation, low insertion loss, low VSWR, for Indoor or Outdoor Application

Item NO.:
MLPS-327-××-NF
Lead Time:
According to quantity
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai, Shenzhen
Color:
Silver Painted (200C)
MOQ:
2

Inquiry now

Products Details

Product Name

380-2700MHz Wilkinson Low Power Splitter with N Female Connector

IP60(Waterproof) for Indoor or Outdoor Use

Product Features

◆ Low VSWR

◆ Low Insertion Loss

◆ High Isolation

◆ High Reliability, IP60

◆ Indoor or outdoor Application

◆ Widely used for In-building Solutions and Outdoor application.

Technical &Mechanical Specifications

Model Number	MLPS-327-02-NF	MLPS-327-03-NF	MLPS-327-04-NF
No. of Ways	2	3	4
Total Loss(dB)	≤4.0	≤6.3	≤7.6
VSWR	≤1.30	≤1.35	≤1.40
Average Power(W)	50	50	50
Isolation(dB)	≥18	≥16	≥16
Impedance	50Ω nominal
*PIM (dBc@243dBm)**	Not Rated
IP Grade	Indoor IP60(Waterproof)
Application	Indoor or Outdoor
Temperature Range	-35° C to +75° C
Connector Type	N Female
Housing Material	Aluminum Alloy
Color	Silver Painted (200C)

OUR SERVICES

1. Professional skills support
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose.
