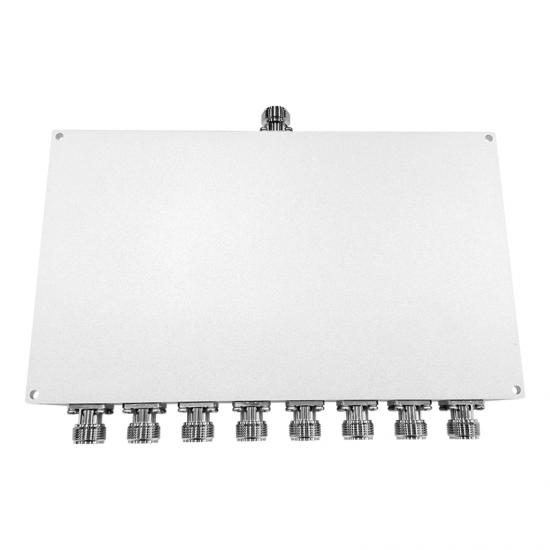

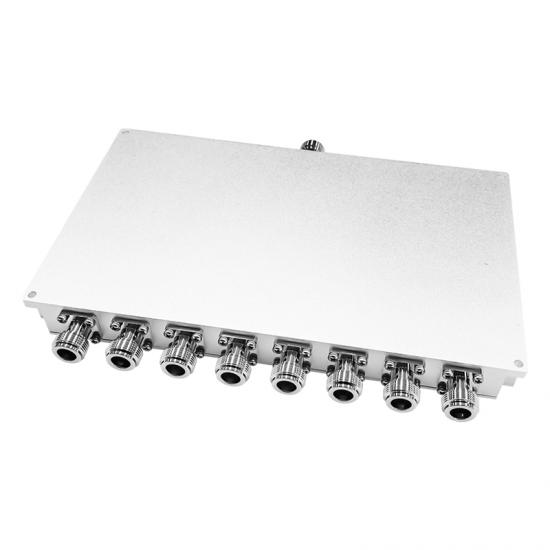

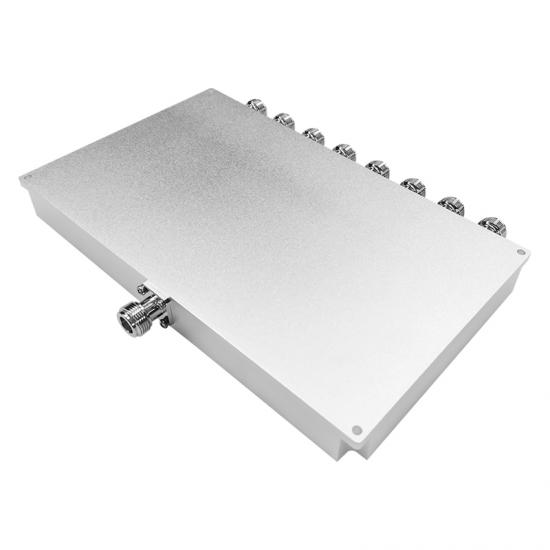

Maniron 1280-1300MHz 8-way Power Divider with N Female Connector

1280-1300MHz Wilkinson Power Splitter/Divider with N Female Connector, High Isolation, low insertion loss, low VSWR, for Indoor or Outdoor Application

Item NO.:
MPS-1280-08-NF
Lead Time:
According to quantity
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai, Shenzhen
Color:
Silver Painted (200C)
MOQ:
2

Inquiry now

Products Details

Product Name

1280-1300MHz Wilkinson Low Power Splitter with N Female Connector

IP65(Waterproof) for Indoor or Outdoor Use

Product Features

◆ Low VSWR

◆ Low Insertion Loss

◆ High Isolation

◆ High Reliability, IP65

◆ Indoor or outdoor Application

◆ Widely used for In-building Solutions and Outdoor application.

Technical &Mechanical Specifications

Model No.	MPS-1280-08-NF
Freq(MHz)	1280-1300
Insertion Loss	≤ 0.4dB（Excluding theoretical loss9.0 dB）
Input Port VSWR	Typ.1.25
Output Port VSWR	Typ.1.2
Isolation	Min.20dB
Amplitude Balance	±0.2dB
Phase Balance	±3°
Impedance	50 Ohms
Input/Output Connectors	N-Female
Power Rating	Splitter:50W; Combiner:3W
Operation Temperature	-40℃ ~ +70℃
Surface Finishing	Sandblasting natural color conductive oxide
Outline Dimensions	13622823（mm）
IP Grade	IP65

OUR SERVICES

1. Professional skills support
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose.
