 / Maniron RF Attenuator DC-6GHz 100W Attenuator With N-M to N-F

DC-6GHz 100W Attenuator with Low VSWR
DC-6GHz 100W Attenuator with Low VSWR DC-6GHz 100W Attenuator with Low VSWR DC-6GHz 100W Attenuator with Low VSWR

Maniron RF Attenuator DC-6GHz 100W Attenuator With N-M to N-F

DC-6GHz 100W  RF Attenuator has good performance like Low VSWR,Low Attenuation Accuracy,it widely used for In-building Solutions.

  • Item NO.:

    MA-6-100W-N-XX

  • Lead Time:

    10-15days

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou/Ningbo

  • Payment:

    FOB,CIF,EXW

  • Color:

    customized

  • MOQ:

    10
Inquiry now
  • Products Details

Product Name :

Factory direct sale  DC-6GHz 100W Attenuator with N Connector For DAS IBS


Product Features

◆ Wide Frequency Band DC-6GHz
◆ Low VSWR
◆Low Attenuation Accuracy

◆ Widely used for In-building Solutions


Technical & Mechanical Specifications

Model No.

MA-6-100W-N-xx

Freq(MHz)

DC-6000MHz

Attenuation(dB)

3/6/10/15/20/30/40

Accuracy(dB)

±1.0/1.0/1.0/1.2/1.2/1.2/1.4

VSWR

≤1.30

Power Rating(W)

100W

Impedance

50 ohm

Connector

N(M)-N(F)

Color

Black

Temp(deg)

-40~+125

Images:

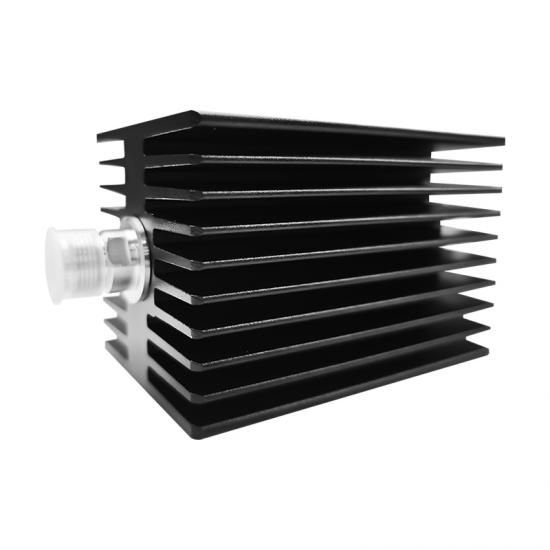

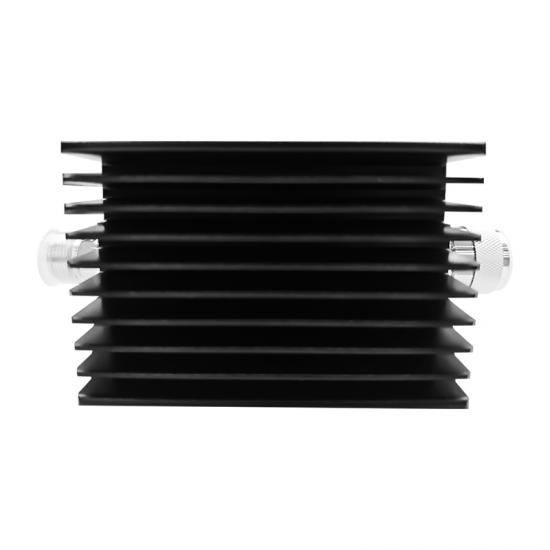

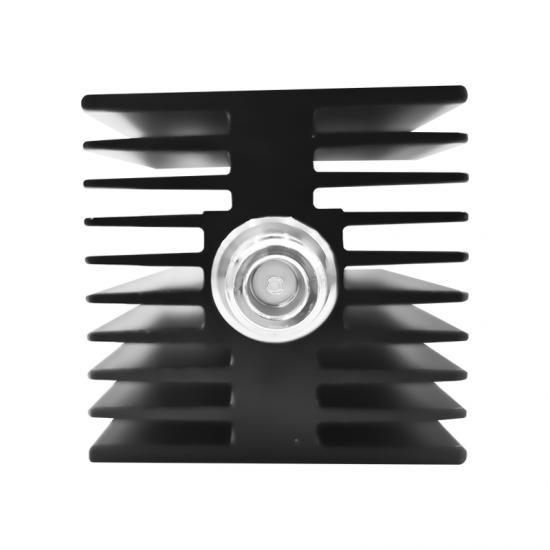

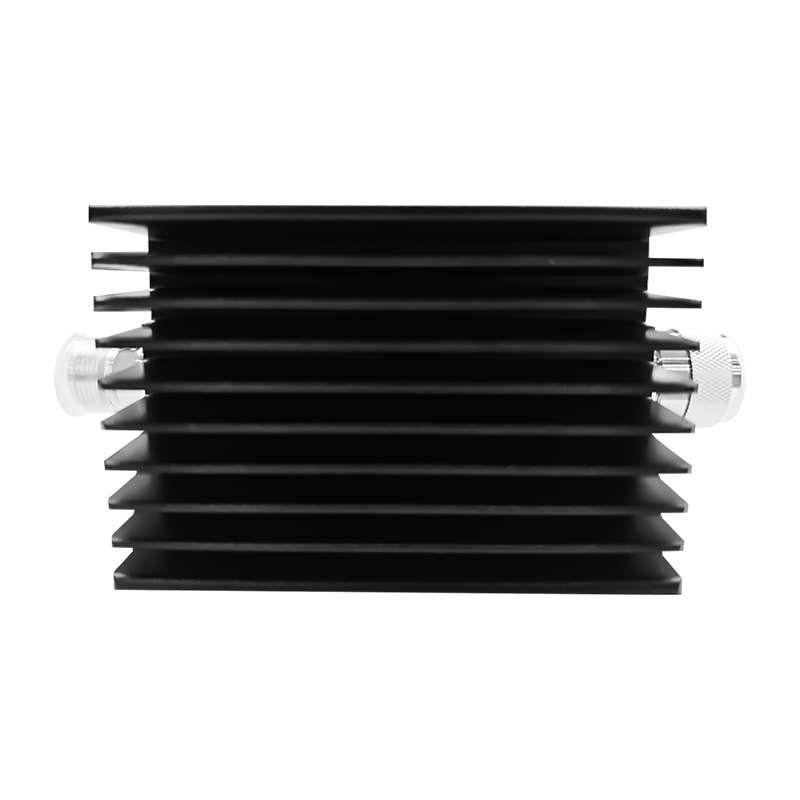

      dc-6ghz 100w attenuator


Our Advantages:

Hefei Maniron Electronic And Technology Co.,Ltd.,established in 2002,located in Hefei National Hi-tech Industry Development Zone,is a leading manufacture of RF Components.
OEM services are offered.
Maniron has a huge fellowship that is composed of many high-level technologists.
We also has established a Research Insititution which is a cooperating with some famous universties in China.

Excelent engineers and profesional team

We also produce attenuator with Low PIM values,such as -150dBc,160dBc,161dBc etc.
