RF Attenuator
Home /

RF Attenuator

 / DC~6GHz 0-100dB 1db Step Variable Attenuator Variable Attenuator

DC-6GHz 2W Attenuator
DC-6GHz 2W Attenuator DC-6GHz 2W Attenuator DC-6GHz 2W Attenuator

DC~6GHz 0-100dB 1db Step Variable Attenuator Variable Attenuator

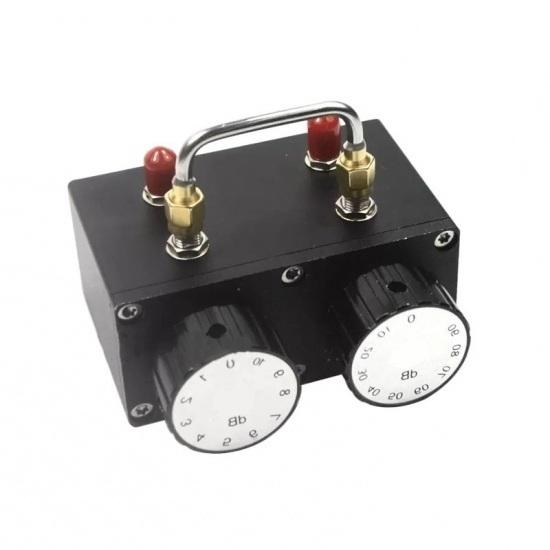

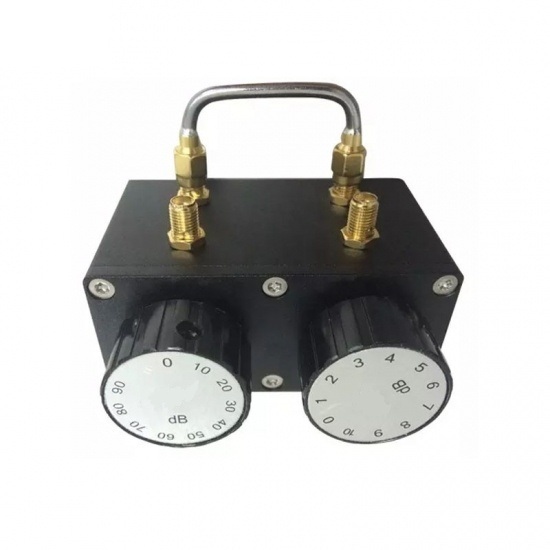

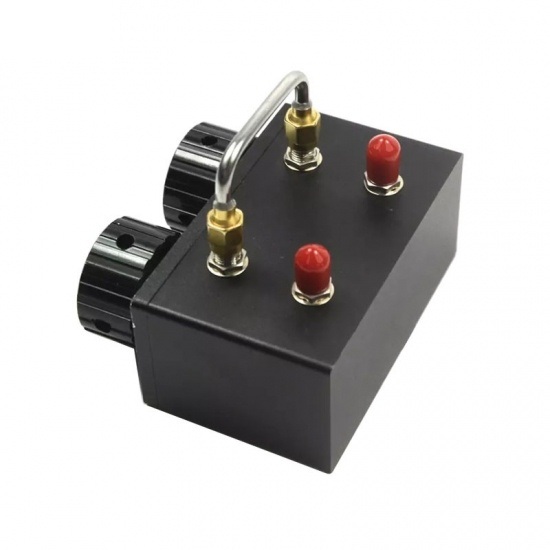

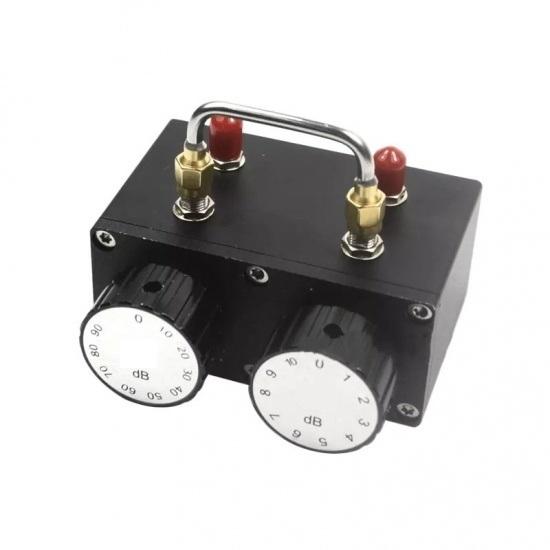

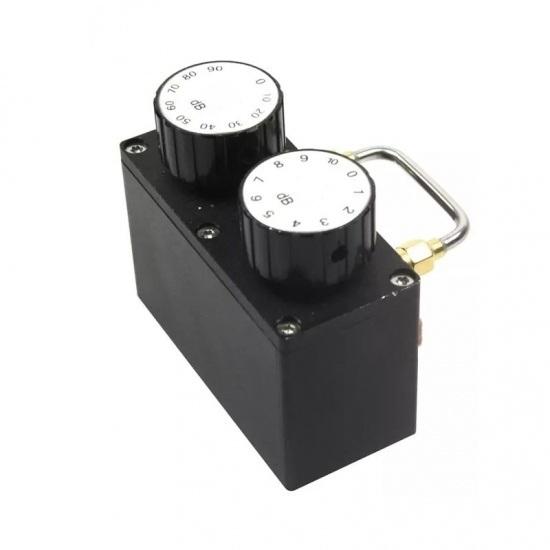

DC-6GHz 2W 0-100dB 1db Step Variable Attenuator Manual Knob Parallel Type Adjustable Attenuator SMA Female has good performance like Low VSWR, Low Attenuation Accuracy, it widely used for In-building Solutions.

  • Item NO.:

    MVA-6-100dB-SF-2W

  • Lead Time:

    10-15days

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou/Ningbo

  • Payment:

    FOB,CIF,EXW

  • Color:

    customized

  • MOQ:

    10
Inquiry now
  • Products Details

Product Name :

Factory direct sale DC-6GHz 2W 0-100dB 1db Step Variable Attenuator with SMA Female Connector For DAS IBS


Product Features

◆ Wide Frequency Band DC-6GHz
◆ Low VSWR
◆Low Attenuation Accuracy

◆ Widely used for In-building Solutions


Technical & Mechanical Specifications


ELECTRICAL
Frequency DC~6GHz
Connector SMA Female to Female
VSWR ≤1.5
Power 2W
Impedance 50Ω
Attenuation value 0-100dB, 1dB step
Attenuation ±0.6 (1-10dB), ±0.9 (20-30dB), 6% (>30 dB)
Temperature Range -55℃～+125℃
MATERIAL
Connector body Brass,Plating Ternary alloy
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Brass,Nickel

Outline Drawing:





Our Advantages:

Hefei Maniron Electronic And Technology Co.,Ltd.,established in 2002,located in Hefei National Hi-tech Industry Development Zone,is a leading manufacture of RF Components.
OEM services are offered.
Maniron has a huge fellowship that is composed of many high-level technologists.
We also has established a Research Insititution which is a cooperating with some famous universties in China.

Excelent engineers and profesional team

We also produce attenuator with Low PIM values,such as -150dBc,160dBc,161dBc etc.
