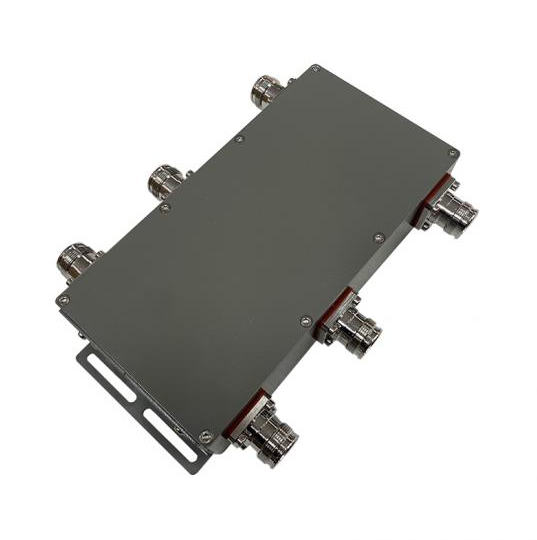

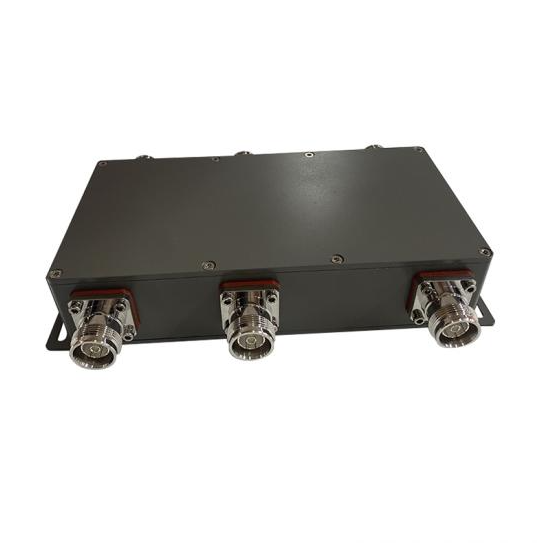

380-3800MHz 3 in 3 Out Hybrid Coupler Combiner with Low PIM-160dBc 4.3-10F

High Isolation 380-3800MHz 3*3 Hybrid Combiner 4310F Low PIM-160 for In-building Solutions

High Isolation Low PIM-160 380-3800MHz 3*3 Hybrid Combiner 4310F for In-building Solutions

Item NO.:
MHC-338-33-4F-160
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Guangzhou/Shenzhen
MOQ:
5

Inquiry now

Products Details

Product Name

High Isolation Low PIM-160 380-3800MHz 3*3 Hybrid Combiner 4310F for In-building Solutions

Product Features

◆ Wide Frequency Band 380-3800MHz

◆ Low Passive Inter-modulation

◆ Low VSWR & Insertion Loss

◆ High Isolation, Indoor & Outdoor, IP65

◆ Widely Used for In-building Solutions

Technical &Mechanical Specifications

Frequency (MHz)	380-3800
Insertion Loss(dB)	≤1.1
Isolation(dB)	≥28 @ input ports, ≥25 @ output ports
VSWR	≤1.30
Average Power(W)	200W Per Input
Impedance	50 ohm
Connector	4310-female
Color	Customized
Temp(deg)	-35~+65
PIM3	-160
Aplication	IP65

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : High Isolation 380-3800MHz 3*3 Hybrid Combiner 4310F Low PIM-160 for In-building Solutions
Im interested in your "High Isolation 380-3800MHz 3*3 Hybrid Combiner 4310F Low PIM-160 for In-building Solutions", please inform me more detailed product information and price. Thankyou!
