600-6000MHz,300W, 4.3-10-F, IP65, -161dBc 3-way stripline Power Splitter

600-6000MHz,300W, 4.3-10-F, IP65, -161dBc 3-way stripline Power Splitter is widely used for in-building solutions

Item NO.:
MPS-660-03-4F-161
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
Silver Color

Inquiry now

Products Details

Product Name:

3-way Stripline Power Splitter (600-6000MHz,300W, 4.3-10-F, IP65, -161dBc)

Product Feature:

◆Wide Frequency Band

◆ 2G/3G/4G/LTE/5G Coverage

◆ Low Passive Intermodulation

◆ Low VSWR & Insertion Loss

◆ Widely used for In-building Solutions

Technical &Mechanical Specifications:

Frequency	600-6000
Total Input Power(W)	300w
Input Port Number	1
Output Port Number	3
Insertion Loss(dB)	6.0
VSWR	≤1.35 @600-2700MHz ≤1.45 @2700-6000MHz
3rd PIM(dBc)	≤-161dBc@2*43dBm
Impedance	50Ω
Connectors type	4.3-10 Female
Operating temperature range	-40°C to +60°C
Applications	IP65
Color	Grey
Packing	1Pce in box

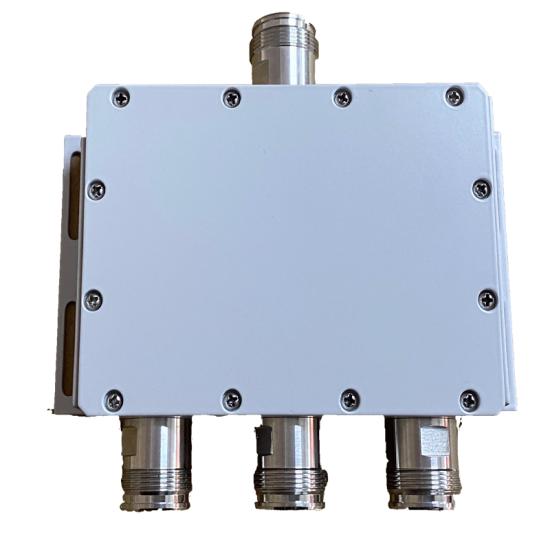

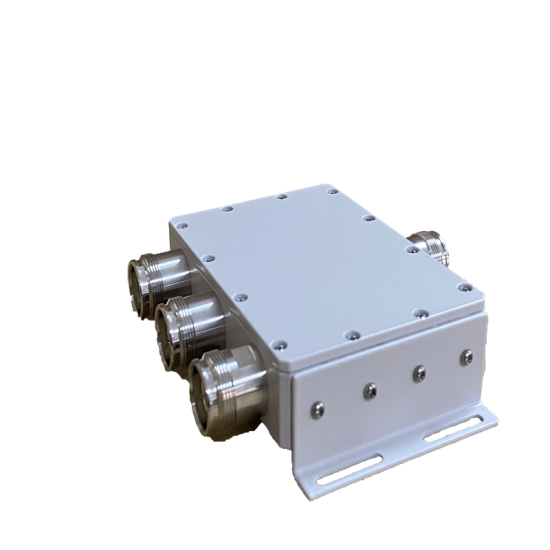

Product Pictures:
