Product Name

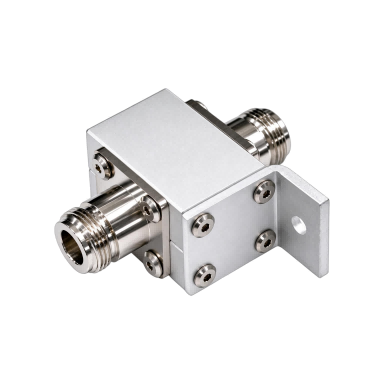

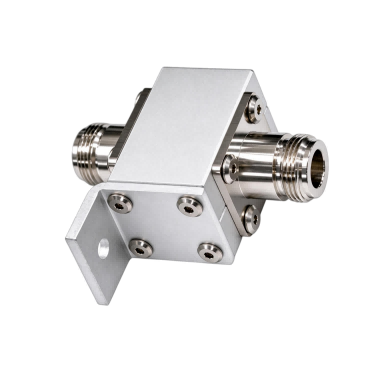

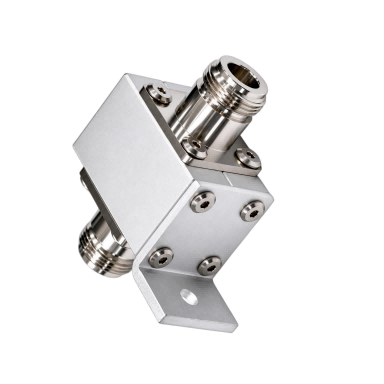

N F/F Coaxial RF Surge Protector 20kA DC Block Lightning Arrester
Product Features
◆ Max Surge current 20KA
◆ DC Block design
◆ VSWR ≤1.1
◆ CE & RoHS & FCC compliant
◆ Hole mount bracket available for installation
◆ Adopt gas discharge tube technology, stable surge suppression performance
Technical &Mechanical Specifications
|
Model No. |
MN-1251-500-NFF |
|
Electrical Specifications |
|
|
Frequency Range |
125~1000MHz |
|
Nominal Surge Current (In) (8/20μs) |
10 KA |
|
Max. Surge Current (Imax) (8/20μs) |
20 KA |
|
Response Time (Ta) |
≤100 ns |
|
Input Power CW |
500 Watts |
|
DC Spark-over Voltage |
450V/600V |
|
VSWR |
≤1.1 |
|
Insertion Loss |
≤0.1 dB |
|
Voltage Protection Rating (VPR) (8/20μs@10kA) |
≤20 Volts |
|
Voltage Protection Rating (VPR) (1.2/50μs@4kV) |
≤15V Volts |
|
Specific Energy (E) (1.2/50μs@4kV) |
1.8J |
|
Impedanc |
50 Ω |
|
Series resistance |
0.02Ω±20% |
|
Mechanical Specifications |
|
|
Interface way |
N@Female to Female |
|
material |
Aluminium@Anodic Oxidation |
|
Ground Resistance Ω |
≤4Ω /≥4mm2 |
|
Size |
62.1*57*25.6mm |
|
Weight |
135g |
|
Environmental Specifications |
|
|
Temperature Operating Range |
-40 ~ +85℃, Altitude≤4km |
|
Relative Air Humidity |
30%~90% |
|
lngress Protection Rating (IP) |
IP20 |

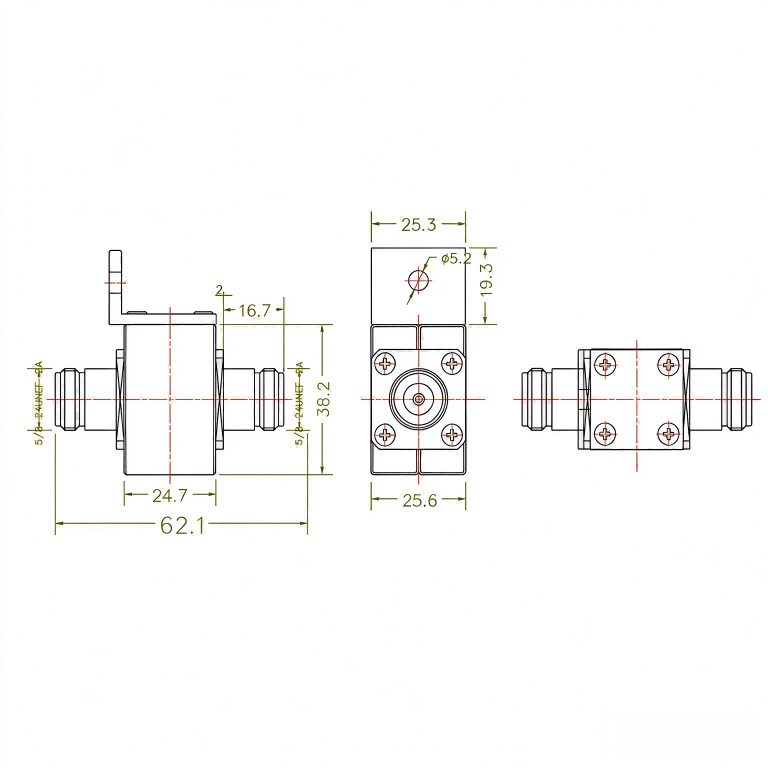

Drawing:
