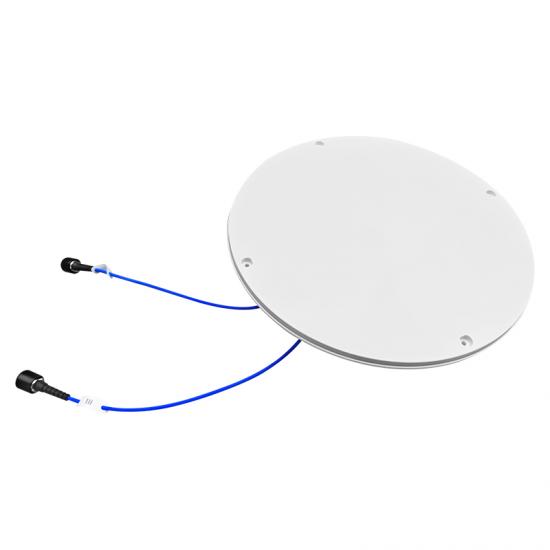

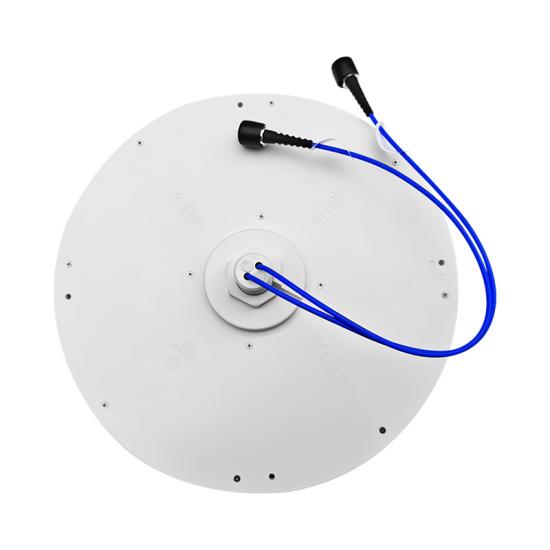

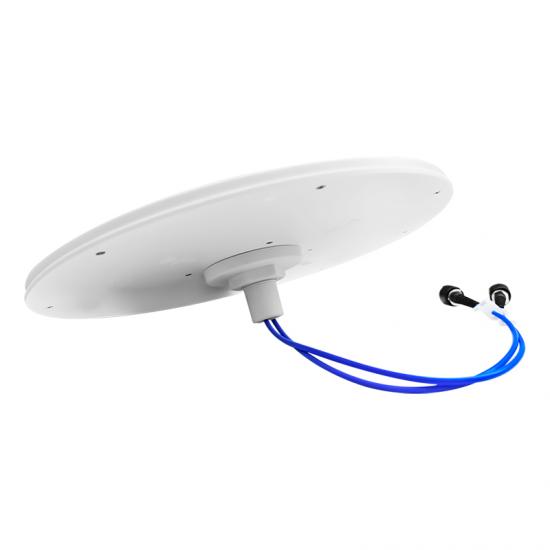

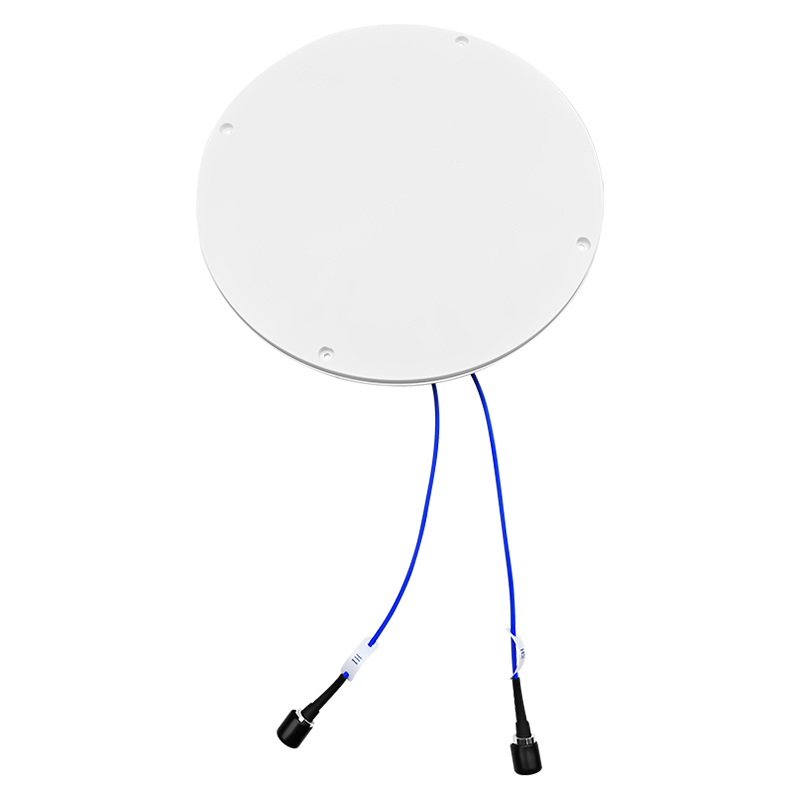

380-4300MHz 3-4.5dBi HH-Pol 2-Port Indoor Flat Omni Antenna

380-4300MHz 3-4.5dBi HH-Pol 2-Port Indoor Flat Omni Antenna

Low-PIM wideband omni antenna covering 380-4300MHz with up to 4.5dBi gain, ideal for DAS, 4G/5G indoor coverage and stable signal distribution.

Item NO.:
MOA-443-4.5-NF-153
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Guangzhou/Shenzhen

Inquiry now

Products Details

Product Name:

Wideband 380-4300MHz Omni Directional Ceiling Antenna

Product Feature:

◆ 2G/3G/4G/LTE Coverage

◆ Low Insertion Loss

◆ Widely used for DAS

Electrical & Mechanical Specifications:

Electrical Specifications
Frequency Range, MHz	380-698	698-960	1710-2700	3300-4300
Gain, dBi	3.0	3.5	3.5	4.5
VSWR	≤2.5	≤2.0	≤2.0	≤2.0
Polarization	Horizontal
Isolation, dB	≥7	≥10	≥23	≥30
PIM, 3rd Order, 2x20W, dBc	N/A	≤-140 / ≤-150 / ≤-153		N/A
Horizontal Beamwidth, °	Omni Directional
Input Impedance, Ω	50
Max. Input Power, W	50
Mechanical Specifications

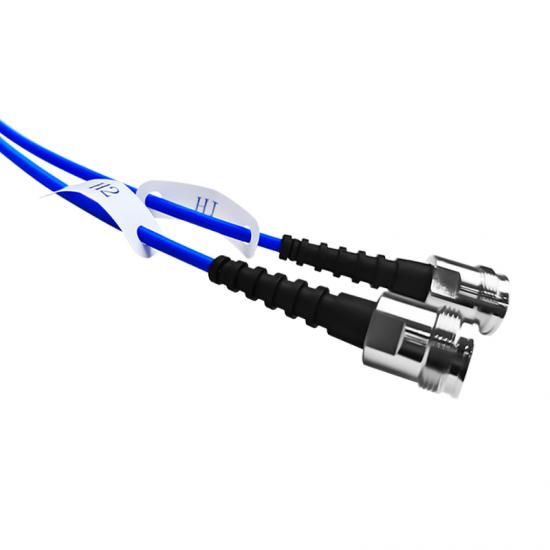

Connector	2 x N Female / 2 x 4.3-10 Female
Dimensions, mm	Ø350x14
Weight, kg	Approx. 1.0
Reflector Material	RF-PCB
Radome Material, Color	ABS (UV Stabilized), White, RAL 9003
Operating Temperature, ℃	-40 to +65

Product Drawing:
