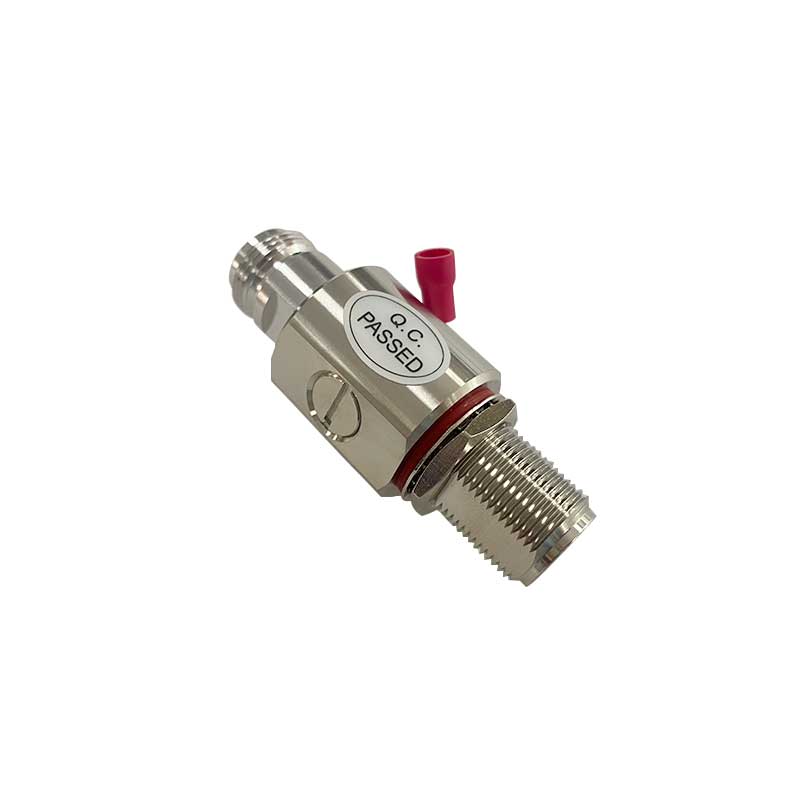

Newly DC-5GHz 500W Low VSWR Lightning Arrestor

  ● Gas-tube Structure ● Easily Replaced Gas Tube Element ● Reliable Performance from DC to 6GHz ● Multi-Strike Capability ● Bi-Directional Protection ● DC passed ● RoHS Compliant The Gas-tube Structure covers frequency from DC to 5GHz
  • Item NO.:

    LX-DC2.5-N-F
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Ningbo
  • Color:

    Silver
  • Products Details

Product Name

DC-5GHz 500W Lighting Arrestor with N connector


Product Features

◆ Wide Frequency Band

◆ 2G/3G/4G/LTE Coverage

◆ Low VSWR

◆Easily Replaced Gas Tube Element

◆Multi-Strike Capability

It is Surge Protector which is Designed for antenna coaxial device and receive/transmit system not to be spoiled by lightning over-voltage, induced over-voltage and static discharge.


Technical &Mechanical Specifications

Working frequency

                                        0-2.5GHz

Max. continuous operating voltage

70V

Max. discharge current(8/20µs)

20kA

Limiting voltage

200V

Insertion loss

0.2dB

VSWR

1.15

Connector type

N- F/F

IP Code

IP20 (IP67 with buckle head)

Max power-W

500W


Pictures



Our Advantages

Hefei Maniron Electronic And Technology Co.,Ltd.,established in 2002,located in Hefei National Hi-tech Industry Development Zone,is a leading manufacture of RF Components.
OEM services are offered.
Maniron has a huge fellowship that is composed of many high-level technologists.
We also has established a Research Insititution which is a cooperating with some famous universties in China.

varies style, high quality, reasonable price and good service

Excelent engineers and profesional team

Full range of passives for 5G, frequency can be 380-6000MHz

Low PIM -165dBc is also our main advantage
