Maniron 6300MHz/7150MHz Cavity Duplexer

Compact silver-plated cavity duplexer with dual wideband channels, featuring low loss, high out-of-band rejection, consistent phase performance and wide temperature adaptability, equipped with direct insulator pin ports.

Item NO.:
LX-W-DUP6300-7150-60
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
white

Inquiry now

Products Details

Product Name

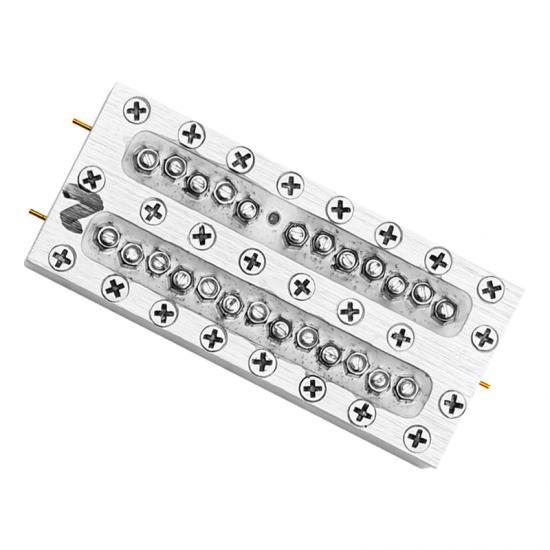

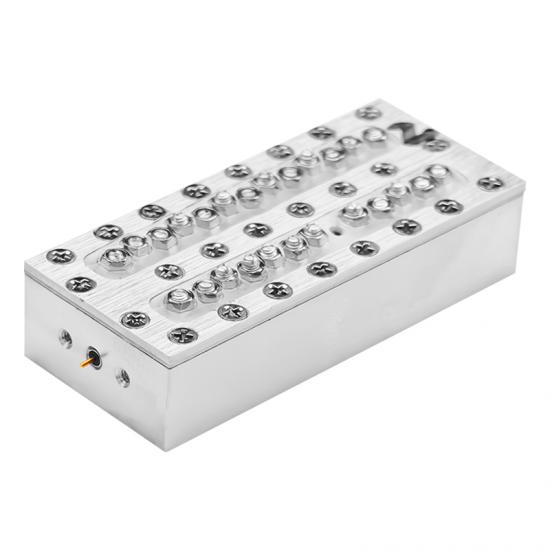

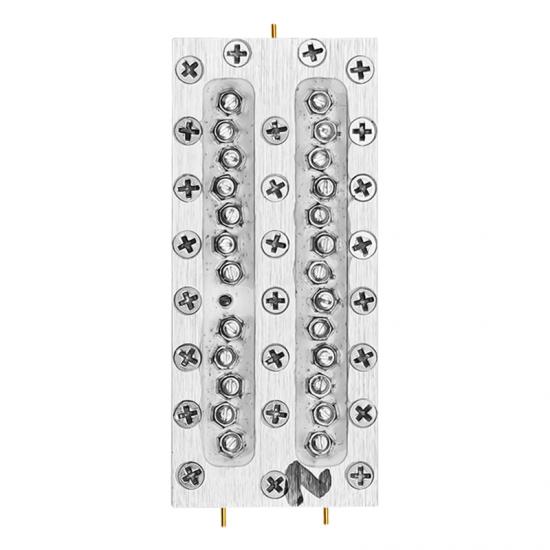

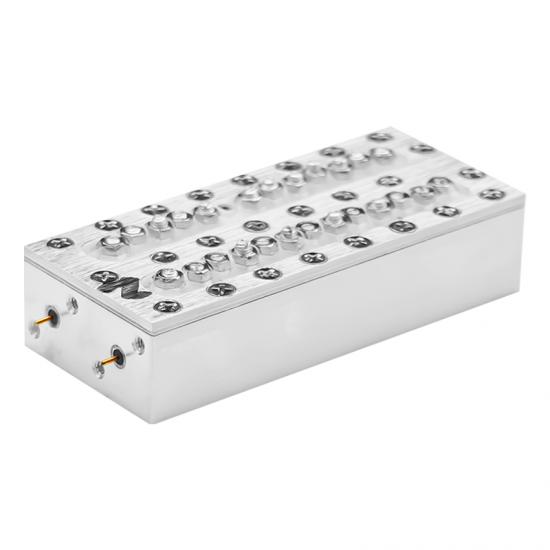

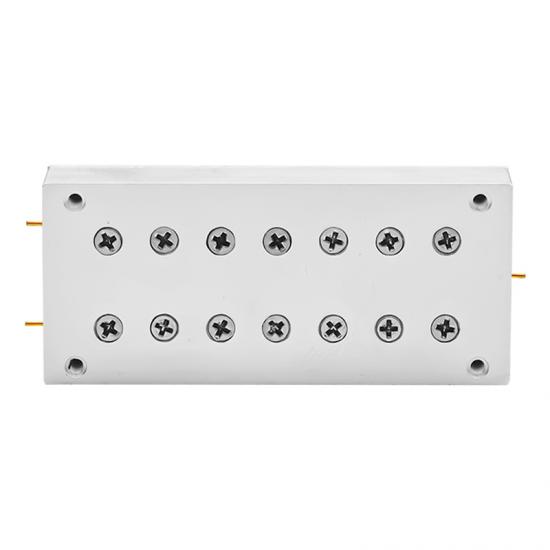

Maniron 6300MHz/7150MHz Cavity Duplexer

Product Features

◆Compact, low weight

◆Low insertion loss

◆High reliability

◆Simple installation

Technical &Mechanical Specifications

Product Name

Cavity Duplexer

Product Model

LX-W-DUP6300-7150-600-400-Y

Channel 1

Center Frequency

6300MHz

Operating Bandwidth

≥600MHz(6000MHz～6600MHz)

Insertion Loss

≤0.8dB

In-Band Ripple

≤0.8dB

Out-of-Band Rejection

≥55dBc@6950MHz～7350MHz

≥55dBc@12000MHz～14700MHz

Phase Consistency (Within the Same Batch)

≤±5°(6000MHz～6600MHz)

VSWR

≤1.5

Input / Output

0.5 mm Pin

Channel 2

Center Frequency

7150MHz

Operating Bandwidth

≥400MHz(6950MHz～7350MHz)

Insertion Loss

≤0.8dB

In-Band Ripple

≤0.8dB

Out-of-Band Rejection

≥55dBc@6000MHz～6600MHz

≥55dBc@12000MHz～14700MHz

Phase Consistency (Within the Same Batch)

≤±5°(6950MHz～7350MHz)

VSWR

≤1.5

Input / Output

0.5 mm Pin

Operating Environment

Operating Temperature

-40℃～+70℃

Storage Temperature

-55℃～+85℃

Overall Dimensions

Appearance

50X22X14mm

Material

Unspecified Tolerance

±0.2mm

Surface Finish

Silver Plating
