RF wifi 350-2700MHz ultra thin Omni Ceiling Antenna High Gain

350-2700MHz Low PIM -140dBc Ultra thin Omni Antenna
  • Item NO.:

    MOA-327-135A-140
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen
  • Color:

    White
  • Products Details

Product Name

 350-2700MHz Low PIM Slim Indoor Omni Antenna


Product Features

◆ With Wide Frequency Band 350-2700MHz

◆ Low VSWR

◆ Low PIM

◆ Widely used for In-building Solutions

The Omni ceiling antenna covers frequency band 350-2700MHz,which is widely used for IBS DAS.It's in low PIM


Technical &Mechanical Specifications

Frequency(MHz)

      350-520

698-960

1710-2170

Polarization

H

H

H

Gain(dBi)

2.0 ±1.0

2.2±1.0

4.5±1.0

VSWR

≤2.3

≤2.2

≤1.7

PIM

/

-140dBc

-140dBc

Total Input Power(W)

50

50

50

Impedance(Ohm)

50

50

50

Connector

4.3-10-M/N-female

4.3-10-M/N-female

4.3-10-M/N-female

Color

White

White

White


Products Pictures

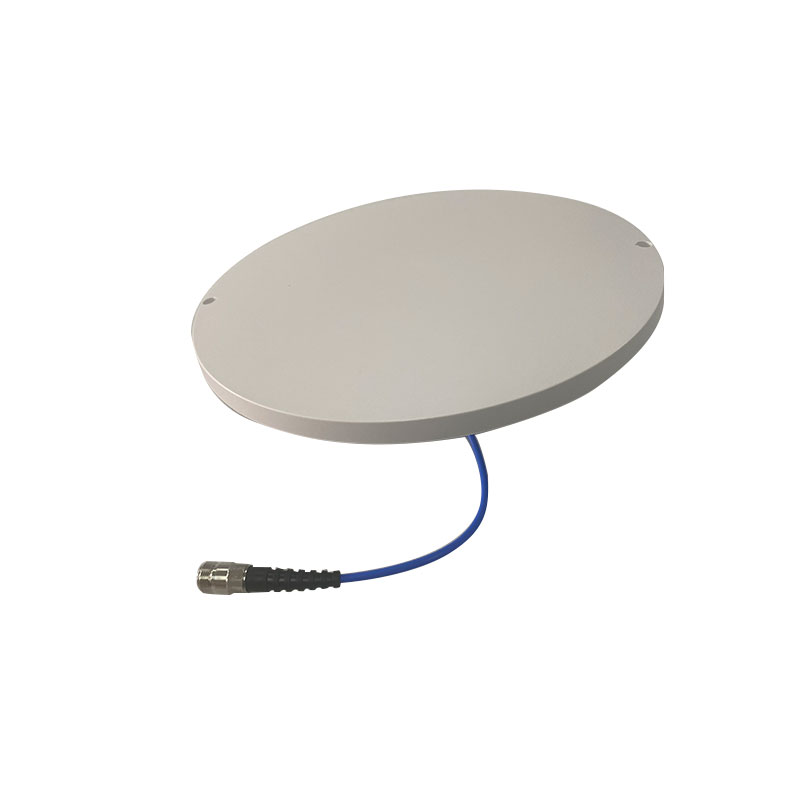

omni ceiling antenna
