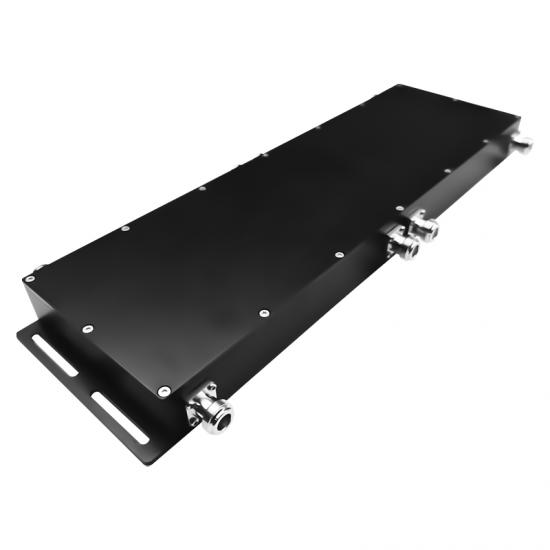

147-172.1MHz 4 In 4 Out Hybrid Coupler Combiner Low VSWR ≤1.3 N-Female

147-172.1MHz Hybrid Combiner 25W Input Power N-Female Connector Low Insertion Loss for Public Safety Repeater

High Isolation Low VSWR 147-172.1MHz 4*4 Hybrid Combiner N-Female for Public Safety Communication Systems.

Item NO.:
MHC-147-44-NF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Guangzhou/Shenzhen
Color:
Black
MOQ:
5

Inquiry now

Products Details

Product Name

147-172.1MHz Hybrid Combiner 25W Input Power N-Female Connector Low Insertion Loss for Public Safety Repeater

Product Features

◆ Wide Frequency Band 147-172.1MHz

◆ Low Insertion Loss ≤6.5dB

◆ Low VSWR

◆ High Port Isolation

Technical &Mechanical Specifications

Freq(MHz)	147-172.1
Insertion Loss(dB)	≤6.5
Port Isolation(dB)	≥20
VSWR	≤1.3
Impedance	50 ohm
Color	black
Temp(deg)	-40~+65
Degree of protection	IP65
Power at in port(W)	25W/Port
Power at out port(W)	1W/Port
Connector	N-Female
Relative Humidity	5%-95%
