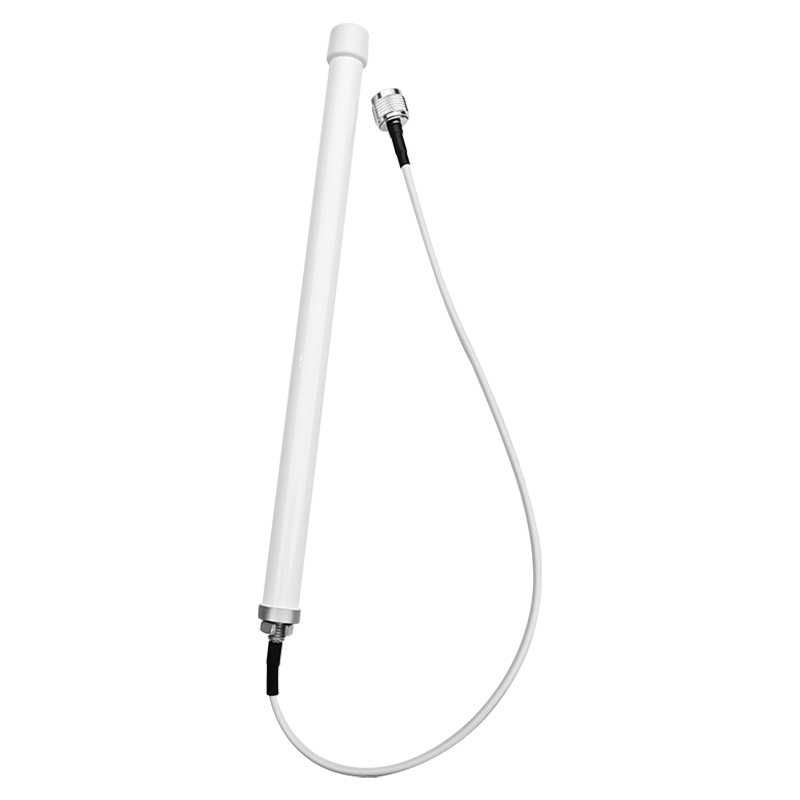

450～470MHz 3dBi Fiberglass Omni Antennas

450～470MHz 3dBi Fiberglass Omni Antennas is an ideal for UHF communication systems, public safety networks, industrial wireless, and distributed antenna systems.

Item NO.:
MNA-400-3-FMEF
Lead Time:
7-10 days
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
white
MOQ:
5-10

Inquiry now

Products Details

Product Name

450～470MHz 3dBi Fiberglass Omni Antennas

Product Features

◆ 450～470MHz

◆ High gain omni-directional radiation

◆ Low VSWR

◆ High power handling capacity

Technical &Mechanical Specifications

Frequency range-MHz	450～470
Gain-dBi	3±1
Omni Ripple(dB)	±1.5
VSWR	≤1.8
Nominal impedance-Ω	50
Polarization	Vertical
Power-W	100
Weight-g	350±10(exclude the bracket)
Antenna Length-mm	500±10
Operating Temperature	-40～＋70℃
Radome Meterials	Fiberglass
Color	White
Connector	N Male


Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 450～470MHz 3dBi Fiberglass Omni Antennas
Im interested in your "450～470MHz 3dBi Fiberglass Omni Antennas", please inform me more detailed product information and price. Thankyou!
