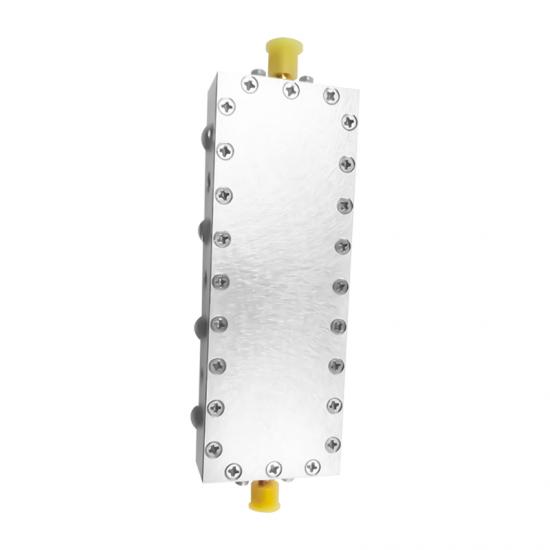

1200-1400MHz LC Bandpass Filter with Low Insertion Loss

High Performance 25W LC Bandpass Filter 1200-1400MHz for RF Test Equipment

High Performance 25W LC Bandpass Filter 1200-1400MHz for RF Test Equipment.

Item NO.:
MBPF-1300-25
Product Orgin:
China
Brand:
Maniron
Color:
White

Inquiry now

Products Details

Product Name

High Performance 25W LC Bandpass Filter 1200-1400MHz

All parameters can be customized according to customers' requirements.

Product Feature

◆High Power 25W

◆High Reliability

◆Wide Bandwidth

Technical &Mechanical Specifications

Frequency	1200-1400MHz
Passband width	200khz
Insertion loss	0.4dB
VSWR	≤ 1.5
Power	25 W
Rejection	≥50dB@970MHz ≥50dB@1600MHz
Connectors type	SMA-Type

OUR SERVICES

1. Professional skills support for RF Passive Products
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : High Performance 25W LC Bandpass Filter 1200-1400MHz for RF Test Equipment
Im interested in your "High Performance 25W LC Bandpass Filter 1200-1400MHz for RF Test Equipment", please inform me more detailed product information and price. Thankyou!
