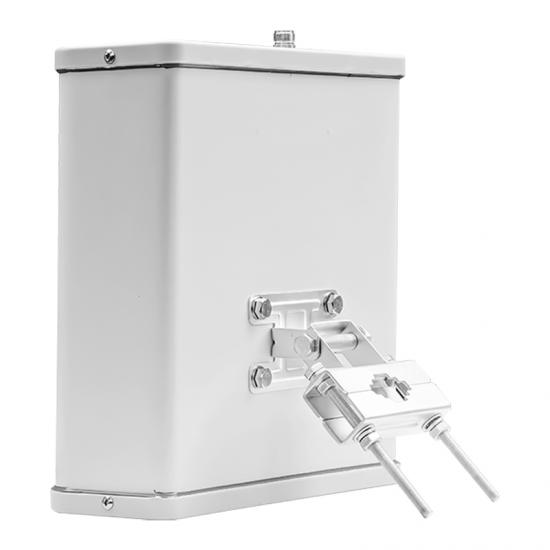

Wall Mount SISO Panel Antennas High Gain 4G LTE Communication Antenna

Maniron 698-2700MHz Outdoor SISO Directional Panel Antenna

698-2700MHz 8/12dBi Outdoor Directional SISO Panel Antenna is used in the wide band. With wide frequency coverage, high gain and high front-to-back ratio, it can be widely used for DAS, cellular base station and in-building communication systems.

Item NO.:
MPA-727-8-12-NF
Lead Time:
7-10 days
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
White
MOQ:
1

Inquiry now

Products Details

Product Name

Maniron 698-27000MHz Outdoor SISO Directional Panel Antenna

Product Features

◆ Wide Frequency Band 698-2700MHz

◆ Low VSWR

◆ High Gain

◆ Widely used for DAS

Technical &Mechanical Specifications

Model	MPA-727-8-12-NF
Frequency Range(MHz)	698-960/1710-2700
Gain(dBi)	8/12
Horizontal Beamwidth-°	65°
Vertical Beamwidth-°	45°
VSWR	≤1.5
Input Impedance(Ω)	50
Polarization	±45°
Max Power(W)	100
Connector	N Female

Application
