Diplexer 698-960 1710-2700MHz

The rf combiner/rf diplexer covers from 698-2700MHz,in low PIM -160dBc.
  • Item NO.:

     MDD-CSS1120-DF-01 (
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen
  • Color:

    Grey
  • Products Details

Product Name

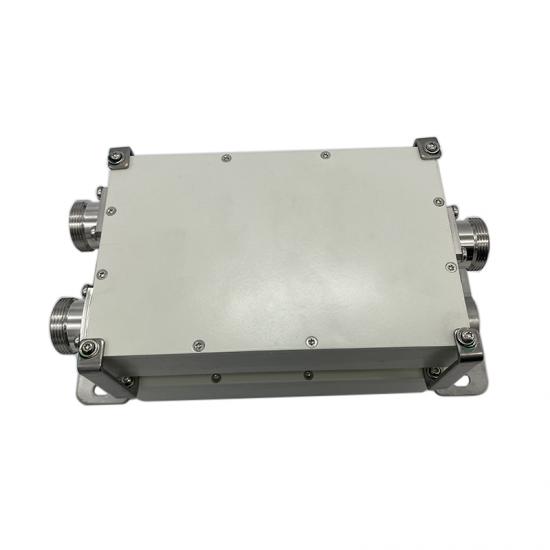

698-2700MHz Low PIM RF Diplexer/Dual Band Combiner

Product Features

◆Compact, Low Weight

◆ Contain 2G/3G/4G/5G

◆Low Passive Inter-modulation  -155dBc

◆High Reliability

◆ Simple Installation


This combiner,rf diplexer/duplexer covers frequency 698-2700MHz,it is in low PIM -160dBc.


Technical &Mechanical Specifications

Electrical Specifications

Port

Band 1

Band 2

Frequency Range

698-960MHz

1710-2700MHz

Return loss (dB)

22

22

Insertion Loss

≤0.2dB

≤0.4dB

Power Handling

300W

300W

Isolation

50dB@1710-2700MHz

50dB@698-960MHz

DC Pass

3A

3A

PIM

-155dBc@2*20W

Impedance

50Ω

Mechanical Specifications

Weight

3.50kg

Dimensions

182*104*116mm (Double Unit)

Connector

DIN female

Colour

Grey or customized

Operating Humidity

0-95%

Operating Temperature

0 to 55ºC

Application

Outdoor

Mounting

Pole or Wall Mount

Waterproof grade

IP65
