RF Dual band combiner frequency 1710-1780MHz 2110-2200MHz with SMA female

RF Dual band combiner frequency 1710-1780MHz  2110-2200MHz widely for telecommunication
  • Item NO.:

    MDC-1700/2100-SF
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Ningbo
  • Color:

    Grey or customized
  • Products Details

Product Name


RF Dual band combiner frequency 1710-1780MHz  2110-2200MHz widely for telecommunication



Product Features

◆Compact, Low Weight

◆High Reliability

◆ Simple Installation


Technical &Mechanical Specifications

Frequency

CH1:1710-1780MHZ

CH2:2110-2200MHZ

VSWR

1.3

Insertion loss

0.5dB

Isolation

50dB minimum

Power handling

 50W

Connector

SMA-F

Impedance

50 ohms

Operateion temperature

-20-55 degree C

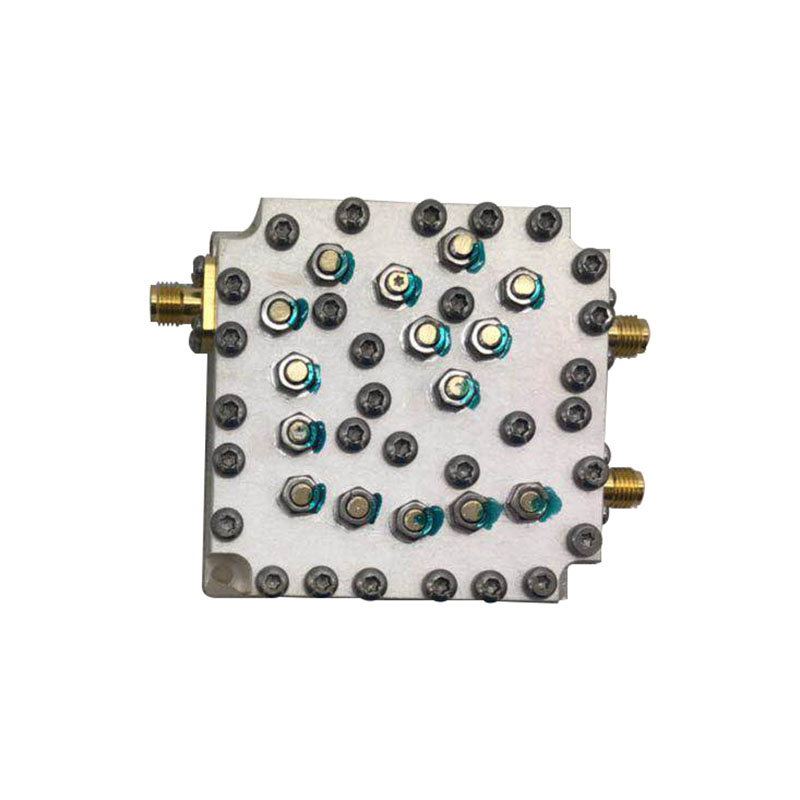

Product image


RF Dual band combiner
