710-716&740-746MHz Duplexer with high isoltion 90dB, Low VSWR, Low PIM
  • Item NO.:

    MDPX-700-43F-155
  • Product Orgin:

    China
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou/Ningbo
  • Color:

    Silver Color
  • Products Details

Product Name:

710-716&740-746MHzrf duplexer

Product Feature:

◆ Compact, low weight

◆ High Isolationrf duplexer combiner

◆ High reliability

◆ Simple installationdual band combiner


Technical &Mechanical Specifications:

Frequency

Uplink:710-716MHz

Downlink:740-746MHz

Return Loss

≥20 dB

VSWR

≤1.5:1

Port isolation

≥90 dB

Out of Band Rejection(dB)at 4MHz from edge


≥40dB

  Insertion loss  ≤1.5dB
 Passband Ripple

≤1.0dB

Intermodulation (3rd order)

 ≤-155dBc @ 2 x20w carrier

Power Rating

100W  avg. per port

Impedance

50Ω

Connectors type

4.3-10 Female

Operating temperature range

-30°C to +75°C

Applications

IP67

Color

Silver

Outer Dimension(mm)

192*171*51mm

Product Pictures:

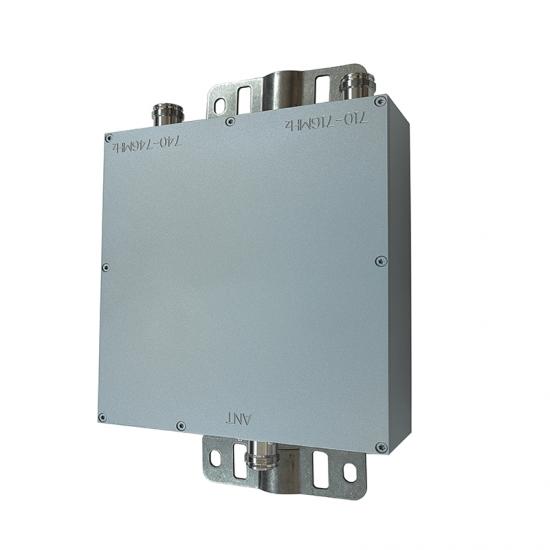

Duplexer combiner
