690-2700MHz rf penta-band combiner for bts or antenna system

Penta-Band Combiner 690-862 / 880-960 / 1710-1880 / 1920-2170 / 2490-2690MHz , Low VSWR, Low PIM
  • Item NO.:

    MNL-PC-6927-4F-155-D
  • Product Orgin:

    China
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou/Ningbo
  • Color:

    Gray Color
  • Products Details

Product Name:

Penta-Band Combiner 690-862 / 880-960 / 1710-1880 / 1920-2170 / 2490-2690

Product Feature:

◆ Compact, low weight

◆ High Isolationrf duplexer combiner

◆ High reliability

◆ Simple installationdual band combiner

◆ Can be used at the BTS side or the antenna side


Technical &Mechanical Specifications:

Frequency

Band1:  690-862MHz

Band2:  880-960MHz
Band3: 1710-1880MHz
Band4: 1920-2170MHz
Band5: 2490-2690MHz

Return Loss

≥18 dB

VSWR

≤1.5:1

Port isolation

≥50 dB

ASIG/DC By-pass

≥40dB

 Insertion loss  ≤0.5dB
 Passband Ripple

≤1.0dB

Intermodulation (3rd order)

 ≤-155dBc @ 2 x20w carrier

Power Rating

100W  avg. per port

Impedance

50Ω

Connectors type

4.3-10 Female

Temperature

0°C to +75°C

Applications

IP67

Color

Gray

Outer Dimension(mm)

317*190*123mm for single units

Product Pictures:

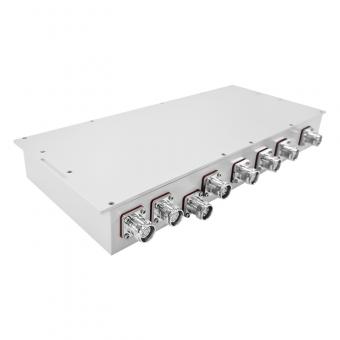

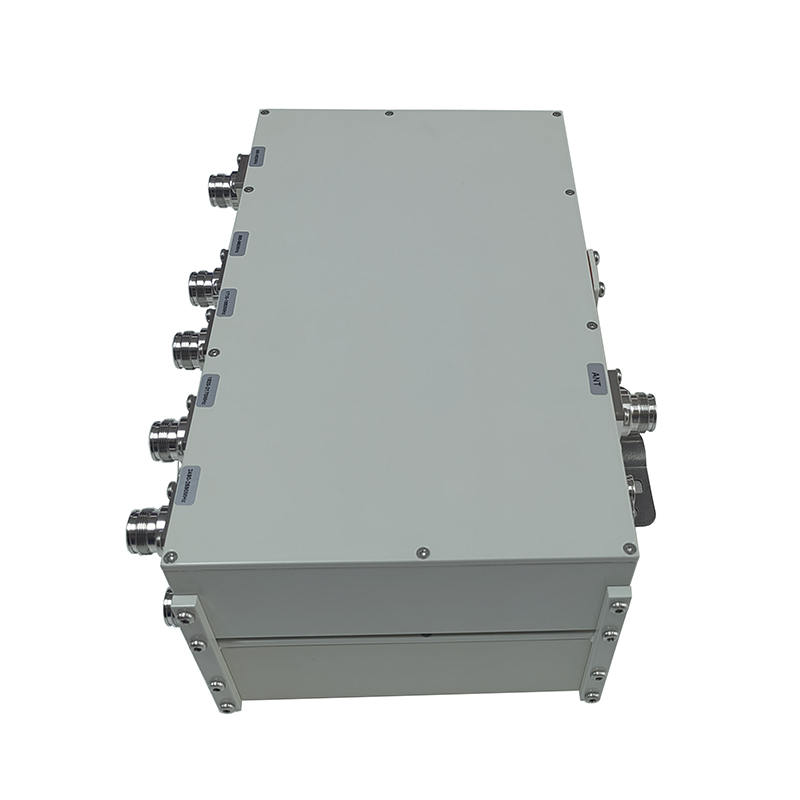

penta-band combiner
