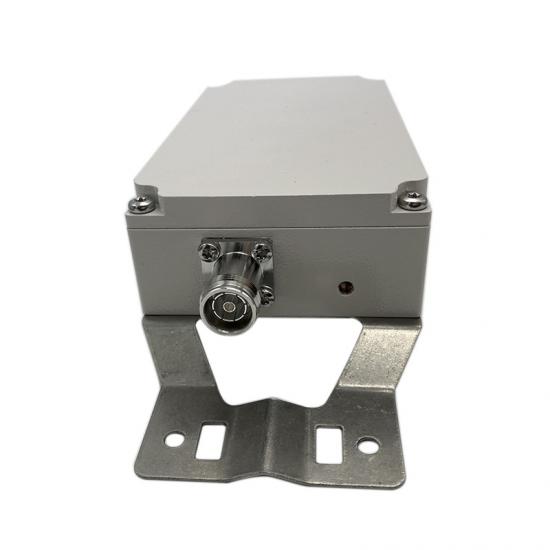

Diplexer 698-960MHz 1710-2700MHz

RF combiner , Diplexer 698-960MHz 1710-2700MHz
  • Item NO.:

    MDS-CSS1120-4F-01
  • Payment:

    FOB, FCA, Paypal
  • Products Details

Main Features:

l Low insertion loss

l High isolation between each input port

l Modularity: Single Unit

l Available for all indoor and outdoor applications

l Connectors: 4.3-10 type female


Electrical Specifications

Port

Band 1

Band 2

Frequency Range

698-960MHz

1710-2700MHz

Return loss (dB)

≥22

≥22

Insertion Loss

≤0.2dB

≤0.4dB

Power Handling

300W

300W

Isolation

≥50dB@1710-2700MHz

≥50dB@698-960MHz

DC Pass

3A

3A

PIM

≤-155dBc@2*20W

Impedance

50Ω

Mechanical Specifications

Weight

3.50kg

Dimensions

182*104*48mm (Single Unit)

Connector

4.3-10 female

Colour

Grey or customized

Operating Humidity

0-95%

Operating Temperature

0 to 55ºC

Application

Outdoor

Mounting

Pole or Wall Mount

Waterproof grade

IP65
