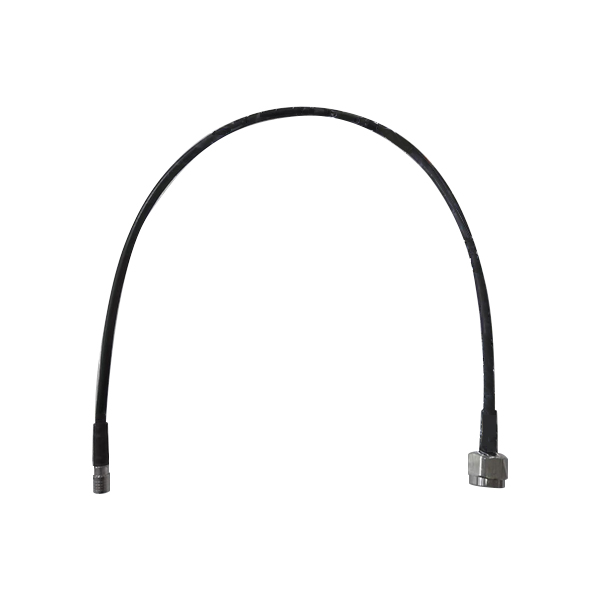

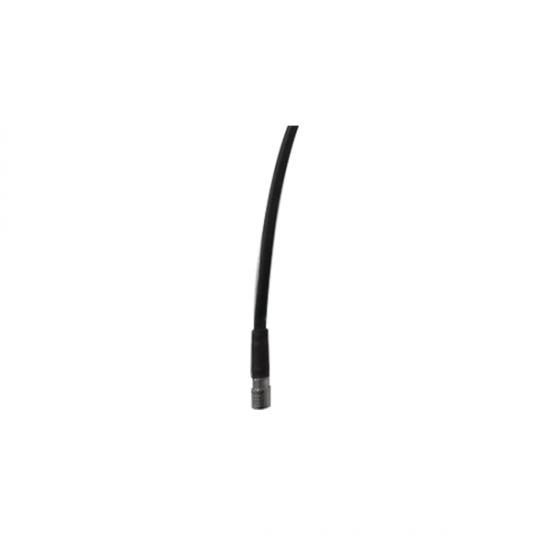

LMR240 0.6M Jumper Cable with N male and QMA male connectors

LMR240NMQM-0.6 Jumper cable uses 0.6meter of LMR-240 cable. This jumper cable is fitted with N Male and QMA male connectors on both sides. The crimp connectors include heat shrink.
  • Item NO.:

    MNJC-LMR240-NMQM-0.6
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Color:

    Black/Customized
  • Products Details

Product Name

LMR240 0.6M Jumper Cable with N male and QMA male connectors on ends


Product Features

◆ Low VSWR

◆ Low Insertion Loss

◆ Wide band

◆ Widely used for In-building Solutions application.


Technical &Mechanical Specifications

                                  Frequency  (GHz)

                                        DC-6G

      VSWR
      ≤1.2(DC-3G)
Insulation Resistance

            ≥5000MΩ

Impedance (Ω)

50

Center Conductor

Brass,Gold Plating

Insulators

PTFE
Body

Brass,Nickel Plating

other

Brass,Nickel Plating

Connectors

N-male straight connector

LMR240 jumper cable

OUR SERVICES


1. Professional skills support for LMR240 0.6M Jumper Cable with N male and QMA male Connectors on both ends.
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose!
