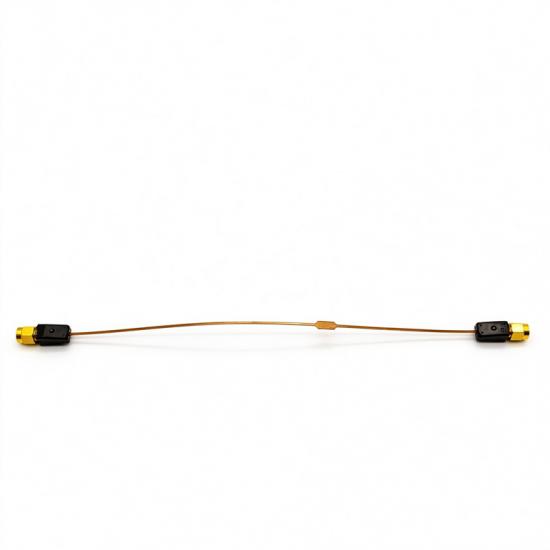

Ultra Low Temperature Flexible Cryogenic Cable DC-18GHz SMA/SMP Connector Cryo RF Jumper Wire

DC~18GHz cryogenic flexible RF cable, working at 10mK~5K, low thermal load, stable phase, customizable connectors and size, ideal for quantum computing & radio astronomy system.

Item NO.:
MCFC1-C1_18A
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Gold

Inquiry now

Products Details

Product Features

◆ Low VSWR

◆ Low Insertion Loss

◆ Wide band

Technical &Mechanical Specifications

Parameter	Specification
RF Bandwidth	DC~18GHz
Insertion loss	≤7dB@DC~6GHz；≤14dB@6GHz~18GHz
VSWR	≤1.25@DC~12GHz；≤1.5@12GHz~18GHz
Thermal load	1.0A；(△T:4K-50K)5.7mW
Operating Temperature range	10mm
5K Storage Temp.	-40℃~+70℃
RF connectors	SMA, SMP (customizable)
Length	200~600mm
Width	13mm (Single channel)
Minimum bending radius	1mm
Twist angle	180°/5mm
