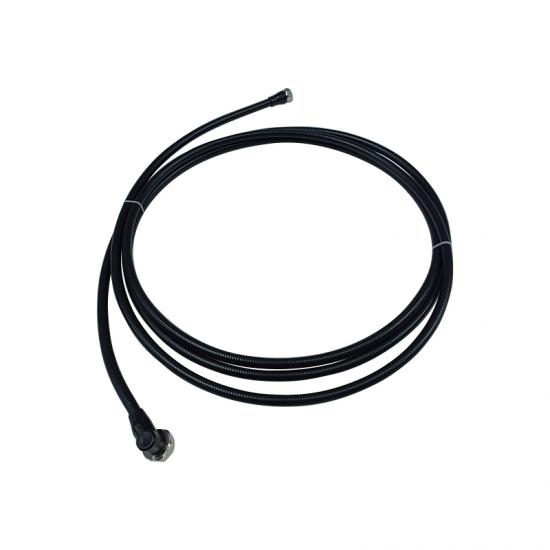

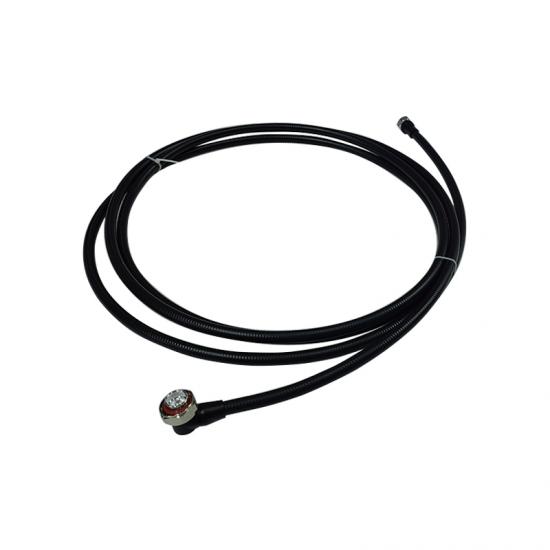

5m 1/2＂superflex feeder cable with 4.3/10 Male Straight connector to 7/16 DIN male right angled

1/2＂Superflex cable of 4.3/10 Male Straight to 7/16 DIN male right angled ,Low PIM

Item NO.:
MJC-1-2SF-5M-4M/DMR
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Black/Customized
MOQ:
10

Inquiry now

Products Details

Product Name

1/2＂Superflex feeder cable of 4.3/10 Male Straight to DIN Male right angled ,LOW PIM

Technical &Mechanical Specifications

LInterface
According to			IEC 61169-54
Electrical
Characteristic Impedance			50 ohm
Frequency Range			DC-6GHz
VSWR			(DC-3GHz)≤1.10 (3-6GHz)≤1.25
PIM ( @2-tonex20w)			≤-155dBc
Dielectric Withstanding Voltage			≥2500V RMS,50Hz,at sea level
Dielectric Resistance			≥5000MΩ
Insert Loss(6Ghz)			1.4dB
Mechanical
Durability			Mating cycles≥100 cycles
Material and plating
	Material			plating
Body	Brass			Tri-Alloy
Insulator	PTFE			-
Center conductor Other	Brass Brass			Ag Ni
Environmental
Temperature Range		-40℃～+85℃
Watertightness		IP67
Rosh-compliance		Full ROHS compliance

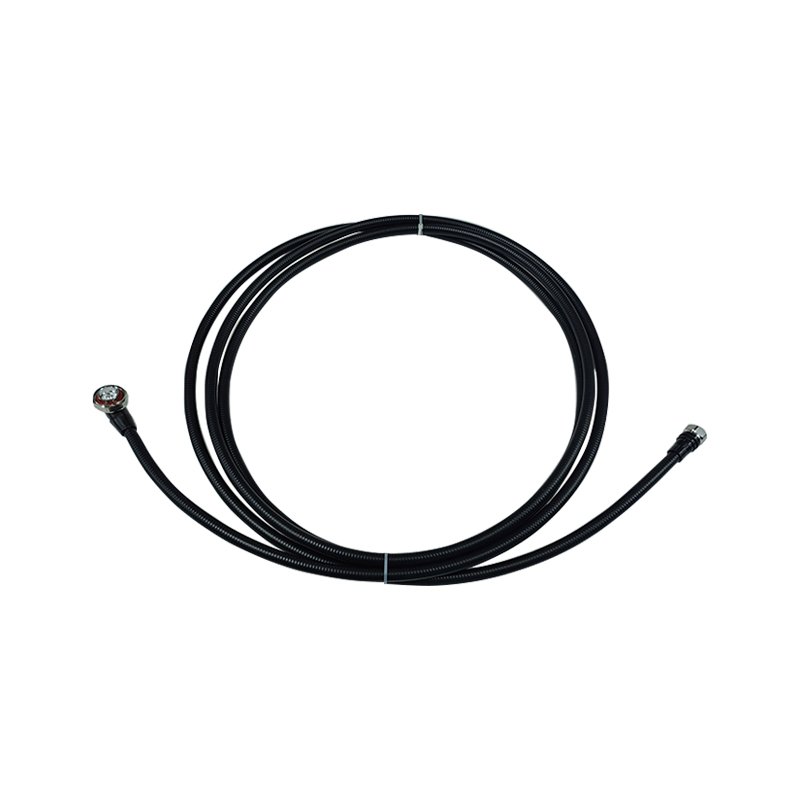

Image: 1/2＂Superflex feeder cable
