Product Description

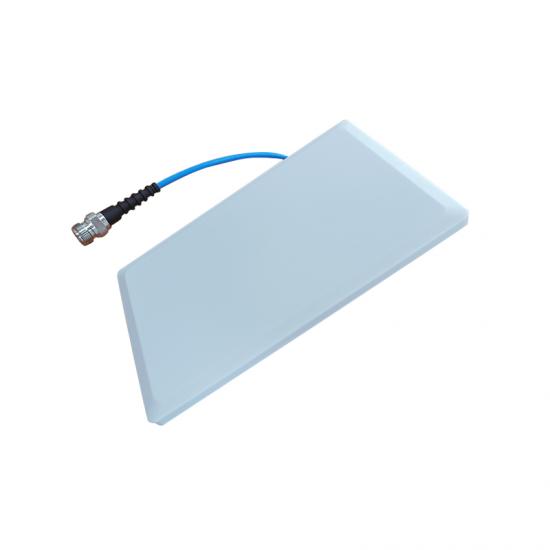

The Maniron 600-6000MHz Low PIM Card Omni Antenna is an ultra-thin, high-performance In-building Solution (IBS) designed for 5G, 4G LTE, and CBRS network deployments. Its low-profile card design allows for discreet installation on ceilings or walls, making it ideal for high-end commercial offices, hotels, and airports. By covering an extremely wide frequency range (600MHz to 6GHz), this antenna eliminates the need for multiple hardware upgrades during network transitions, ensuring a future-proof investment for multi-operator environments.
Application Scenarios
- High-Density 5G IBS: Provides 360° seamless coverage for high-traffic indoor venues utilizing the sub-6GHz 5G spectrum.
- Aesthetic-Sensitive Installations: The 7mm ultra-thin profile meets the strict interior design requirements of luxury hotels and modern retail spaces.
- Public Safety & FirstNet: Supports the 600MHz/700MHz bands, ensuring reliable critical communication and signal penetration.
- Multi-Operator Neutral Host: Handles all cellular frequencies from a single point, reducing hardware density in Distributed Antenna Systems (DAS).
Technical & Mechanical Specifications
| Electrical Parameter | Values per Band | |||||
|---|---|---|---|---|---|---|
| Frequency Range (MHz) | 600-617 | 617-960 | 1710-2170 | 2170-2700 | 3300-4000 | 4900-6000 |
| Gain (dBi) | 2.5 | 3.0 | 4.0 | 5.0 | 4.0 | 5.5 |
| VSWR | ≤ 2.5 | ≤ 2.0 | ≤ 2.0 | ≤ 2.0 | ≤ 2.0 | ≤ 2.0 |
| Vertical Beamwidth | 120° | 118° | 75° | 63° | 70° | 35° |
| PIM (3rd Order) | ≤ -153 dBc (2x20W) | |||||
| Polarization | Horizontal | |||||
| Input Impedance | 50 Ω | |||||
| Mechanical Data | Dimensions: 180x110x7.0 mm | Weight: 0.2 kg | |||||
| Connectors | N Female (Standard) or 4.3-10 Female | |||||
| Materials | Reflector: Aluminum | Radome: ABS (UV Stabilized) | |||||
Frequently Asked Questions
- Q1: Why is the -153dBc PIM rating critical for this indoor antenna?
- A: In High-Density 5G networks, low-quality antennas generate Passive Intermodulation (PIM), which acts as noise and kills upload speeds. Our -153dBc rating ensures maximum data throughput and minimizes signal degradation for end-users.
- Q2: Can this antenna be installed on a metal ceiling?
- A: Yes, but for optimal Omni-directional radiation, it is recommended to mount it with sufficient clearance. The aluminum reflector integrated into the card design helps maintain performance across different mounting surfaces.
- Q3: Does the 600-6000MHz range cover future 6GHz Wi-Fi or LTE bands?
- A: Absolutely. The ultra-wideband performance covers the 600MHz T-Mobile band up to the 6GHz unlicensed spectrum, providing a truly broadband solution for cellular and public safety signals.
- Q4: What is the benefit of the N-Female vs. 4.3-10 connector?
- A: The N-Female is the legacy standard for versatility, while the 4.3-10 Female is preferred in 5G builds for its compact size and superior PIM stability under vibration or torque.
