RF 1.7-6ghz 2 Way RF Power Splitter Divider with SMA-Female Connector

2 Way Wilkinson Power Divider with SMA-F, which covers frequency from 1.7 to 6GHz.It is in low insertion loss,low VSWR.

Item NO.:
MPS-2060-02-SF-W
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
Silver

Inquiry now

Products Details

Product Name

1700-6000MHz 2-Way Power Splitter with SMA-Female

It has Low VSWR AND Low Insertion Loss are offered in 2, 3, 4,6 ways

RF Power Dividers are widely used for In-building Solutions,Distributed Antenna System

Product Features

◆ Wide Frequency Band 1700-6000MHz

◆ Low VSWR & Low Insertion Loss

◆ 2G/3G/4G/LTE/5G Coverage

◆ Indoor or outdoor Application

◆ Widely used for In-building Solutions.

Technical &Mechanical Specifications

Freq(MHz)	1700-6000
Input Port Number	1
Output Port Number	2
Split Loss(dB)	3.0
IL(dB)	≤1.5
VSWR	≤1.3
Total Input Power(W)	50
Impedance	50 ohm
Temp(deg)	-45~+85
Connector	SMA Female
Application	Indoor or Outdoor,IP65
Relative Humidity	5%-95%

Pictures

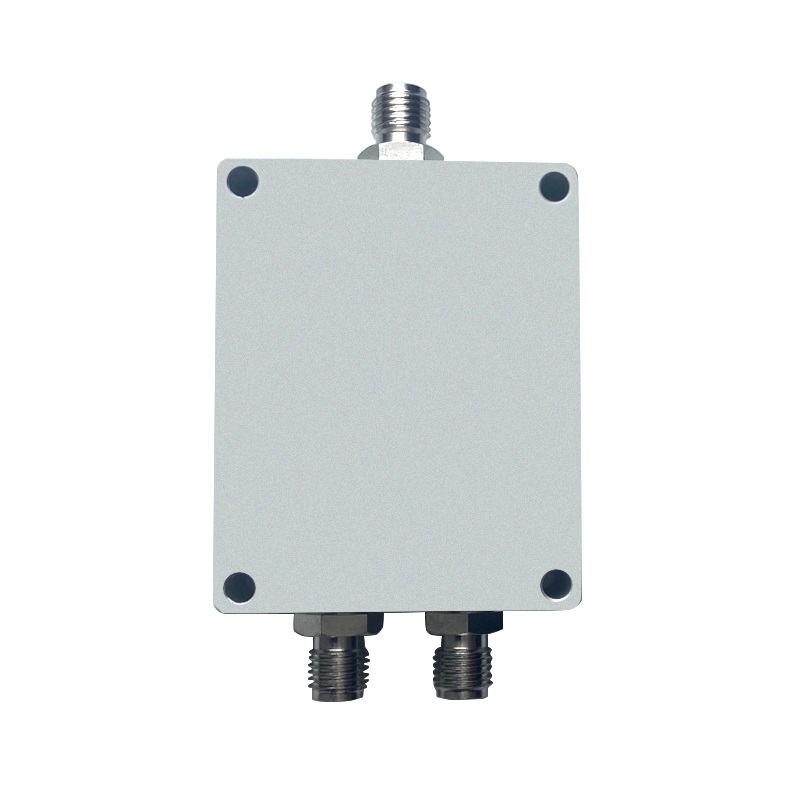

2 way wilkinson power divider

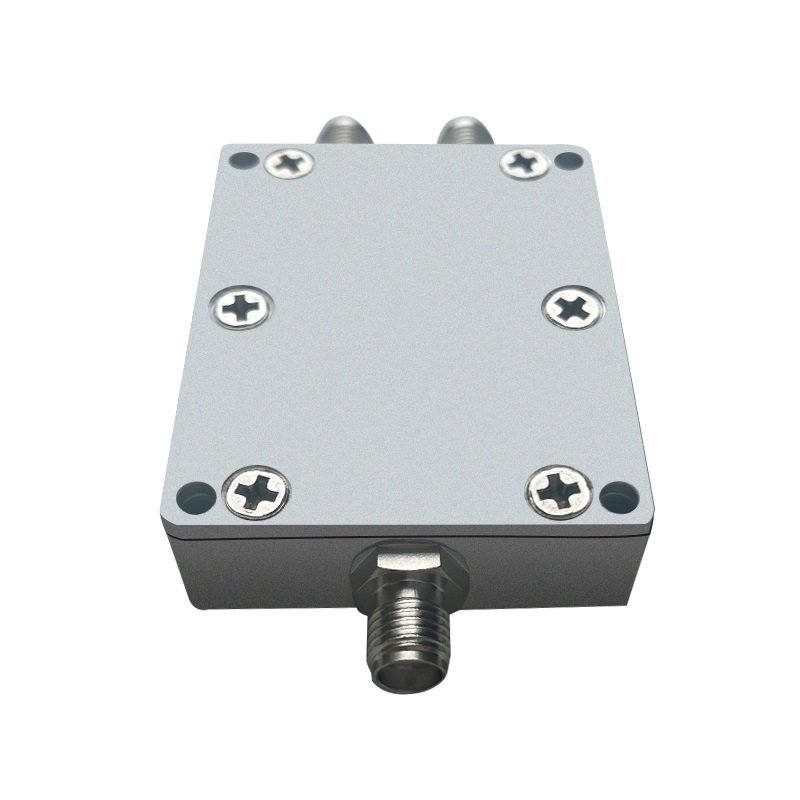

rf power splitter
