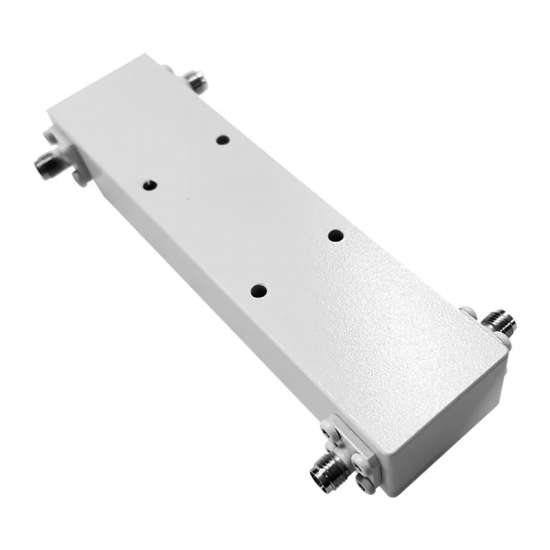

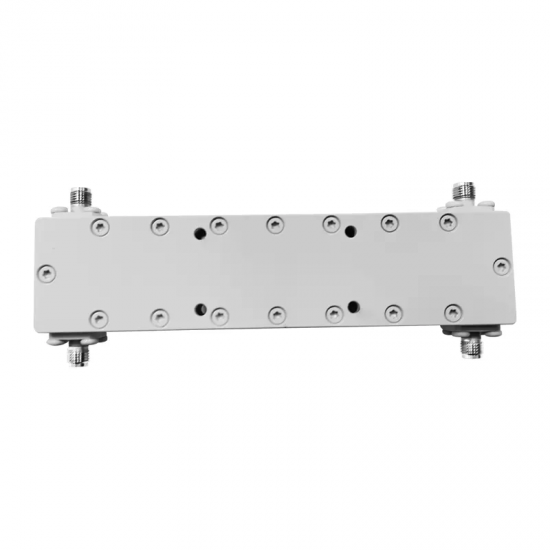

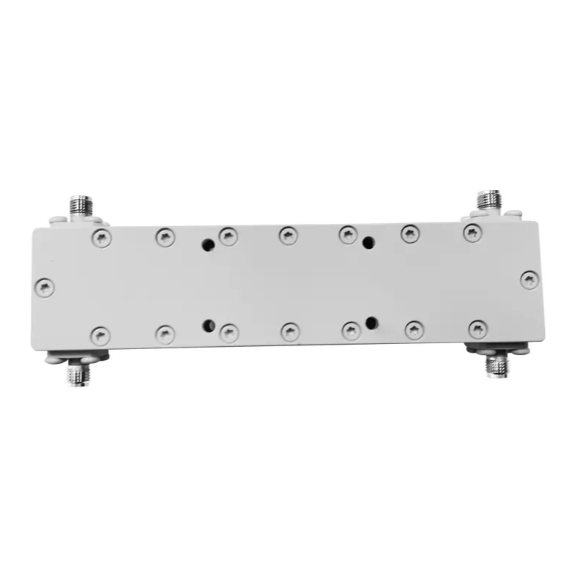

1-3GHz 2 in 2 Out 3dB Hybrid Coupler Combiner with SMA female

2x2 Hybrid Combiner covers frequency from 1-3GHz

Item NO.:
LDC-1/3-90S-100W
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo

Inquiry now

Products Details

Product Name

2*2 Hybrid Combiner 2x2 (1-3GHz,IP65)

Product Feature

Wide Frequency Band 1000-3000MHz

◆ Tetra/2G/3G/4G/LTE/5G Coverage

◆ Low VSWR & Insertion Loss

◆ High Isolation, Indoor & Outdoor, IP65

Technical &Mechanical Specifications:

Frequency	1-3GHz
Coupling	3.dB
Insertion loss	0.3dB
Connector type	sma female
VSWR	1.35
Phase Balance：	±3
Amplitude Balance：	±0.5
Isolation	18dB
Power	20W
Impedance(Ω)	50 Ω
Colour	Silver
Operating Humidity	5%-95%
Operating Temperature	-20 to 60ºC
Application	Indoor or Outdoor
