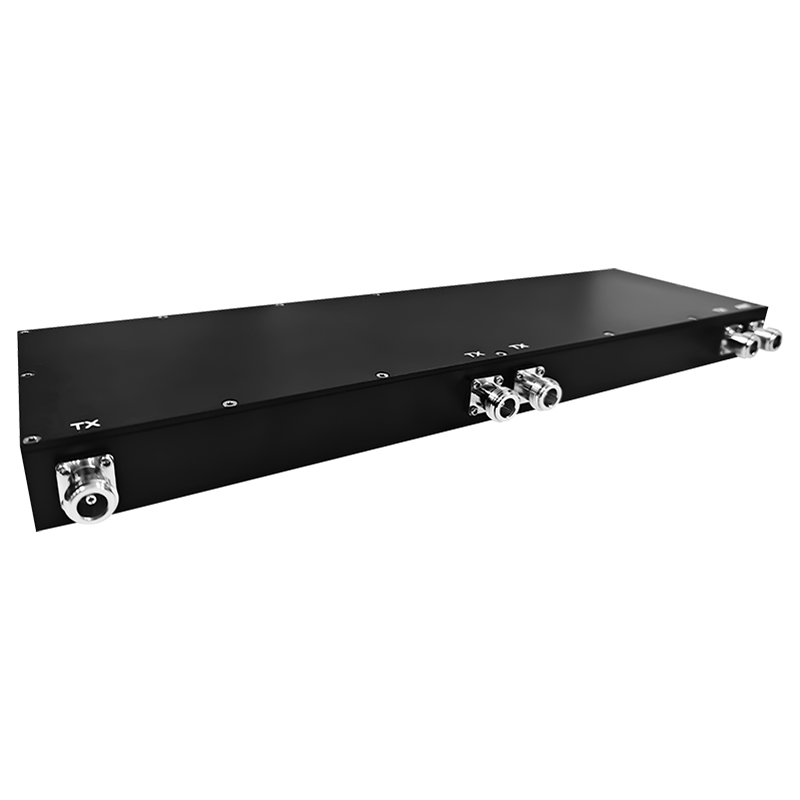

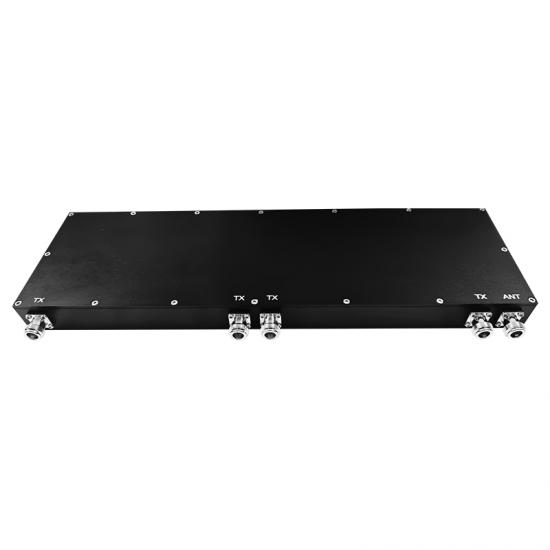

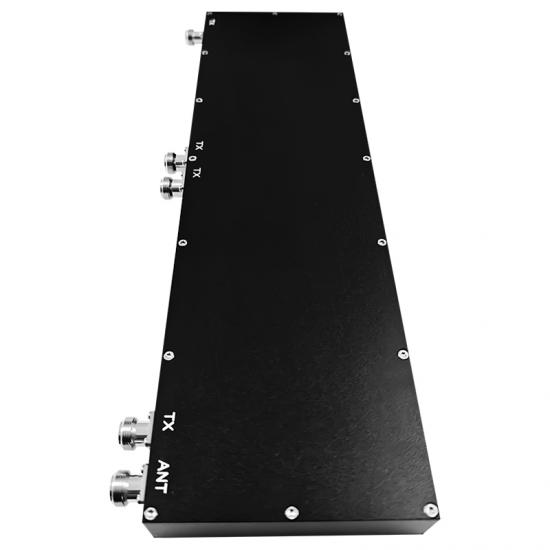

VHF 136-175MHz 4*1 Hybrid Combiner with High Isolation

Hybrid Combiner 4*1 (136-174MHz, 50W)is running in VHF,Low Freq Band with High Isolation

Item NO.:
MHC-100-41-NF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Guangzhou/Shenzhen

Inquiry now

Products Details

Product Name

Hybrid Combiner 4*1 136-175MHz 50W, N-F

Product Features

◆ Wide Frequency Band 136-175MHz

◆ VHF Coverage

◆ Low VSWR & Insertion Loss

◆ High Isolation

◆ Widely used in IBS projects

Technical &Mechanical Specifications

Model No.	MHC-100-41-NF
Frequency (MHz)	136-175
Insertion Loss(dB)	≤6.1±1.0
Isolation(dB)	≥25
VSWR	≤1.30
Average Power(W)	50
Impedance	50 ohm
Connector	N-female
Color	Black or Customized
Temp(deg)	-40~+65
Relative Humidity	5%-95%
Aplication	IP60
